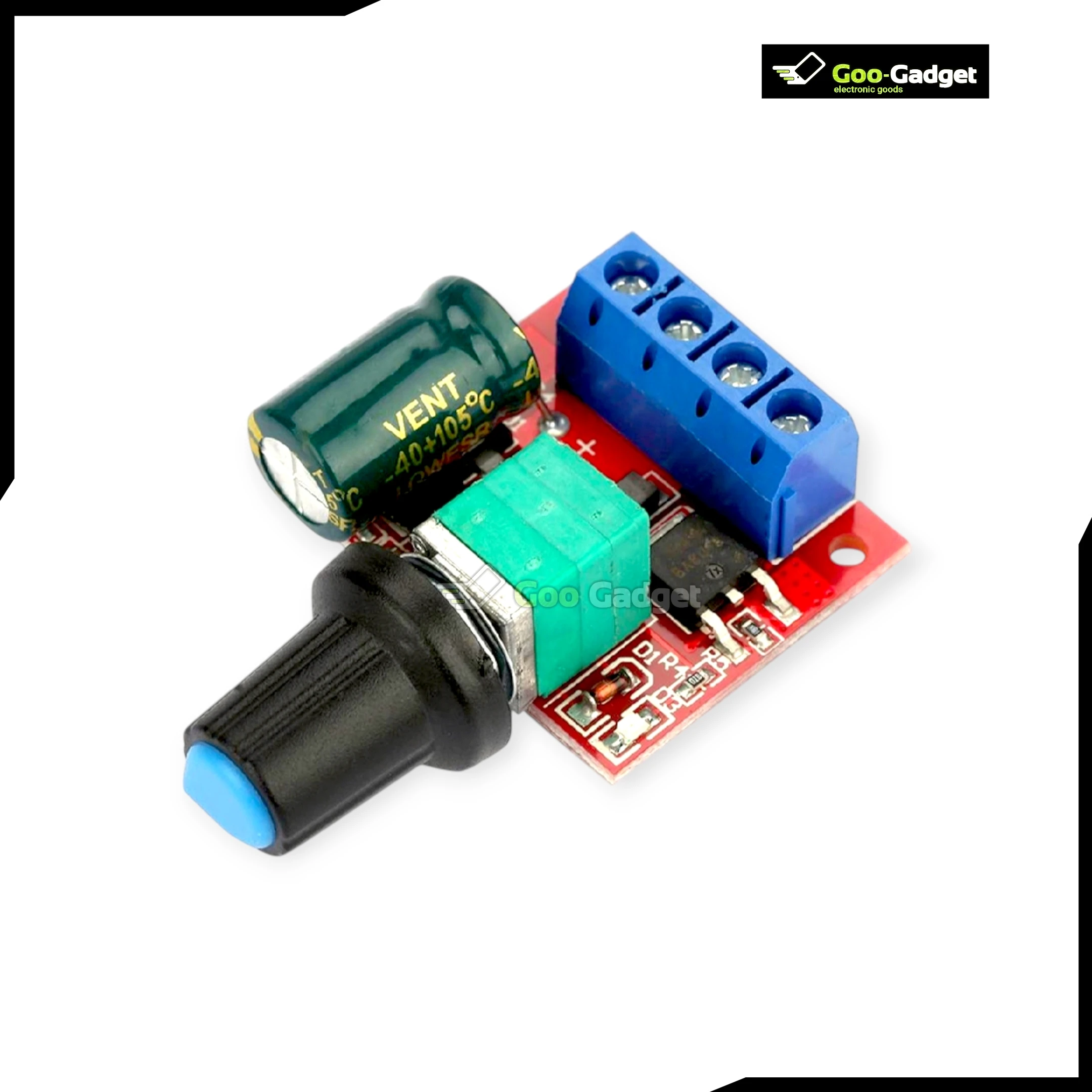

High Power DC 80W PWM Adjustable Motor Speed Controller Module with 3A Regulator

Specification:

• Input Voltage: DC 6V-28V
• Output Current: Max. 3A
• Power Output: Up to 80W
• Control Method: PWM (Pulse Width Modulation)
• Speed Adjustment Range: 0% – 100%
• Frequency: 25kHz (approx.)
• Potentiometer: Knob type for easy speed control
• Protection: Overcurrent and short-circuit protection
• Module Size: Approx. 65 × 40 × 22mm
• Weight: About 50g

Description:
The High Power DC 80W PWM Adjustable Motor Speed Controller Module with 3A Regulator Driver is designed to regulate the speed of DC motors efficiently. It supports an input voltage range of 6V to 28V, delivering up to 80W of power with a maximum 3A current output. Featuring a knob-style potentiometer, it provides smooth and precise speed adjustments from 0% to 100%. Built-in overcurrent and short-circuit protection enhance safety and durability, making it ideal for DIY electronics, robotics, and motor-driven projects.
