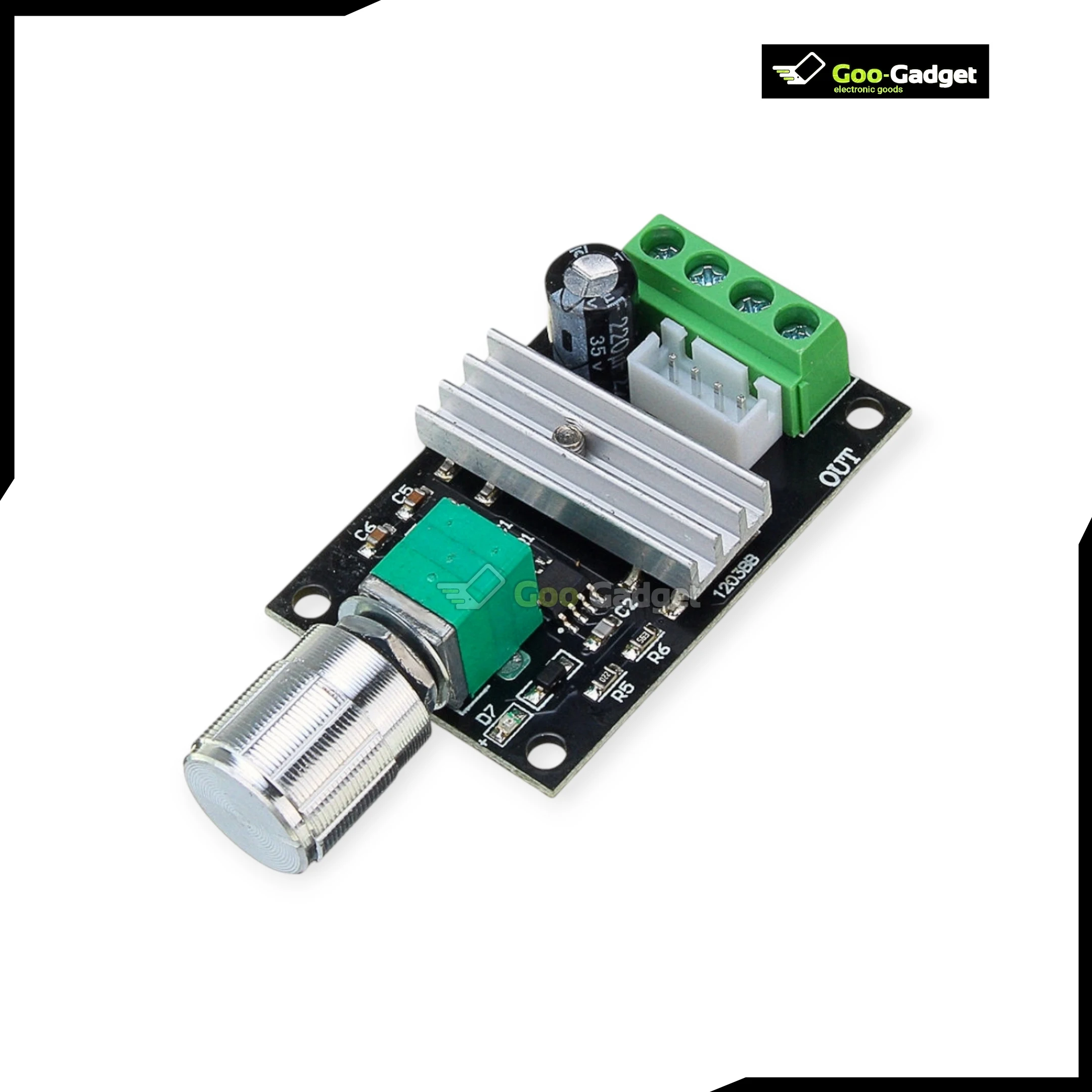

PWM DC Motor Speed Controller Module 5V 35V Adjustable Motor Control Board

Specification:

• Input Voltage: DC 5V – 35V
• Maximum Output Current: 5A
• Control Power: 90W (Max)
• Quiescent Current: 0.015A (standby)
• PWM Duty Cycle: 1% – 100% adjustable
• PWM Frequency: 10kHz
• Control Method: Onboard potentiometer
• Protection: No reverse polarity protection
• Indicator: Power-on LED
• Dimensions: 30mm x 24mm x 15mm (approx.)

Description:
This compact PWM DC motor speed controller operates on a wide voltage range from 5V to 35V, capable of handling up to 5A of current. It allows for smooth and efficient speed regulation of DC motors, with a duty cycle adjustable from 1% to 100% via an onboard potentiometer. The high-frequency 10kHz PWM signal ensures minimal motor noise and improved efficiency. It’s an excellent module for robotics, fan control, and other projects requiring precise motor speed adjustment.
