Specification

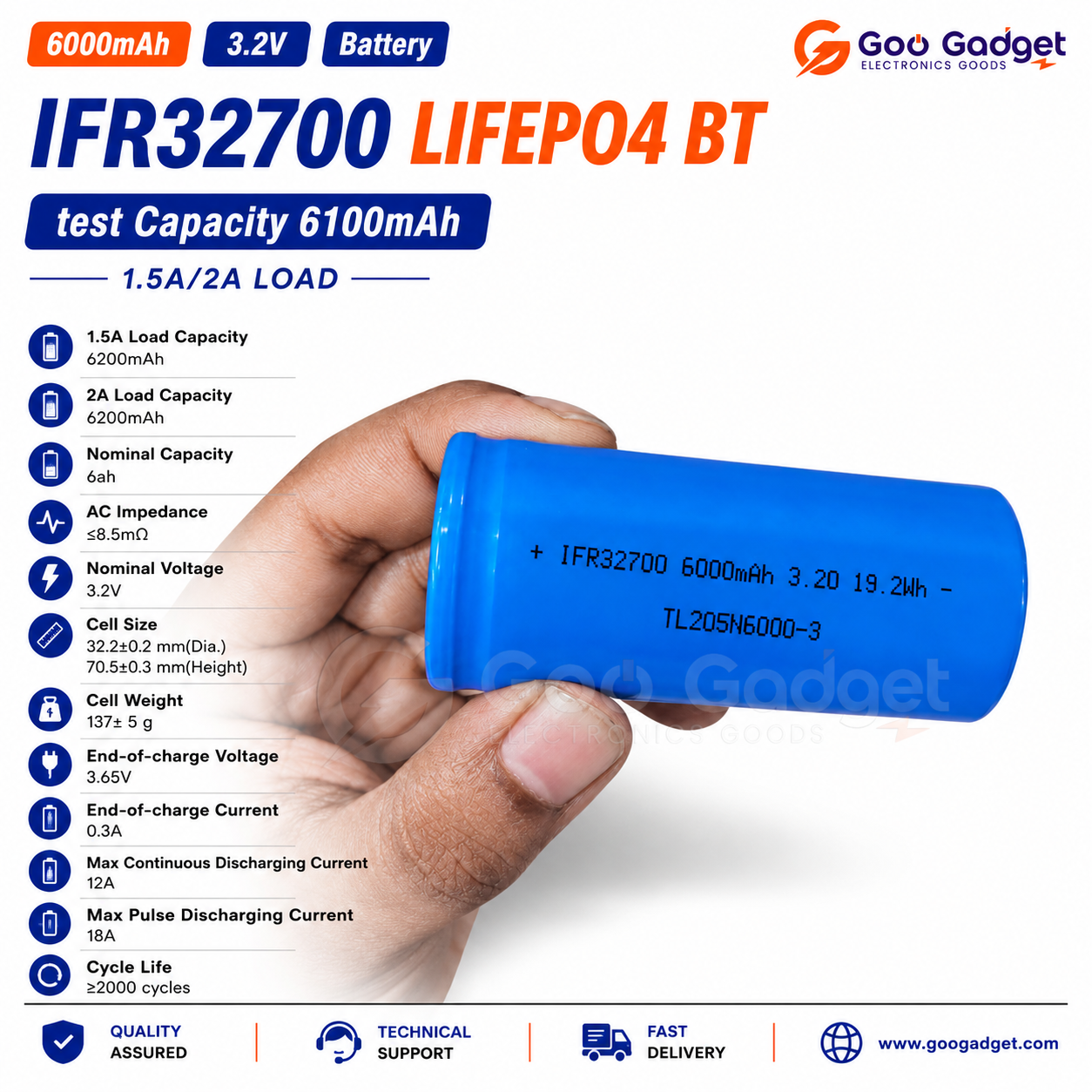

Product Type: Rechargeable LiFePO4 Battery Cell
Battery Chemistry: Lithium Iron Phosphate LiFePO4
Cell Model: IFR32700
Cell Size Type: 32700
Nominal Voltage: 3.2V
Nominal Capacity: 6000mAh / 6Ah
Rated Energy: 19.2Wh
Tested Capacity at 1.5A Load: Approximately 6200mAh
Tested Capacity at 2A Load: Approximately 6100mAh
Typical Tested Capacity: Approximately 6100mAh
AC Impedance: ≤8.5mΩ
Full Charge Voltage: 3.65V
End of Charge Current: 0.3A
Maximum Continuous Discharge Current: 12A
Maximum Pulse Discharge Current: 18A
Cell Size: 32.2±0.2mm Diameter × 70.5±0.3mm Height
Cell Weight: 137±5g
Cycle Life: ≥2000 Cycles
Rechargeable: Yes
Battery Pack Connection: Series and Parallel Supported
Description
IFR32700 3.2V 6000mAh LiFePO4 Battery একটি Rechargeable Lithium Iron Phosphate Battery Cell। এর Nominal Voltage 3.2V, Nominal Capacity 6000mAh / 6Ah এবং Full Charge Voltage 3.65V। আমাদের Capacity Test-এ 1.5A Load-এ প্রায় 6200mAh এবং 2A Load-এ প্রায় 6100mAh Capacity পাওয়া গেছে। Cellটি সর্বোচ্চ 12A Continuous Discharge এবং 18A Pulse Discharge Support করে। এটি সাধারণ 3.7V Lithium-ion Battery নয়, তাই চার্জ করার জন্য অবশ্যই 3.65V LiFePO4 Compatible Charger ব্যবহার করতে হবে। সঠিক BMS ও Charger ব্যবহার করলে Cycle Life 2000+ Cycles হতে পারে।
Application
12.8V LiFePO4 Battery Pack
Solar Energy Storage System
IPS & Emergency Backup Battery
Portable Power Station
Electric Bicycle & Scooter Battery Pack
DIY High Current LiFePO4 Battery Project
