Specification
Supports USB Type-C PD 3.0/2.0 fast charging protocol.
Compatible with QC2.0/QC3.0/QC4+, PPS, FCP, and AFC protocols.
Fixed output voltage selection: 9V / 12V / 15V / 20V.
Voltage selection via solder jumper pads.
Maximum output current: 5A (depends on charger capability).
Automatically falls back to the highest voltage supported by the charger if the selected voltage is unavailable.
USB Type-C input with positive (+) and negative (-) DC output pads.
Compact PCB size: approximately 25.7 Ã 11 mm.
Compact and lightweight design for DIY applications.
Suitable for converting USB-C fast chargers or power banks into adjustable DC power sources.
Description

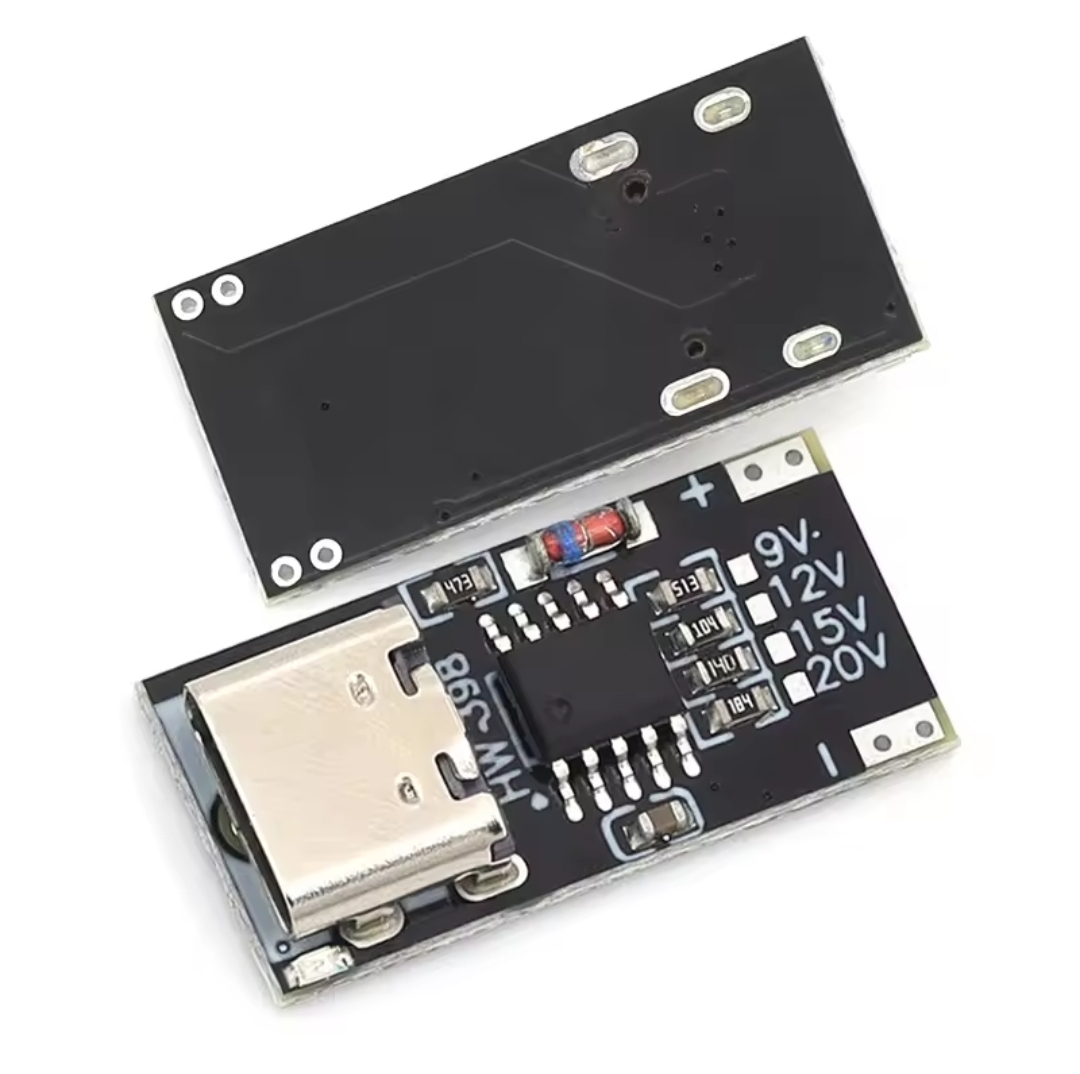

The PD/QC/AFC Type-C Trigger Decoy Board is a compact USB-C fast charging trigger module that negotiates higher voltages from compatible PD and QC chargers. It supports multiple fast charging protocols including PD, PPS, QC4+, QC3.0, FCP, and AFC, allowing you to obtain 9V, 12V, 15V, or 20V DC output by selecting the desired voltage through solder pads. Supporting up to 5A output current, this module is ideal for powering routers, LED lighting, DIY electronics, battery charging projects, and embedded systems using modern USB-C power adapters or power banks.
Application
Convert USB-C PD chargers into adjustable DC power supplies.
Power Wi-Fi routers, ONU/ONT, and networking devices.
DIY electronics and embedded development projects.
Portable power solutions using USB-C power banks.
Battery charging, testing, and laboratory applications.
