Specification
Interface: USB Type-C Female
Input Protocol: USB Power Delivery (PD 2.0/PD 3.0), QC Fast Charge
Output Voltage: 5V / 9V / 12V / 15V / 20V (Selectable)
Maximum Output Current: Up to 5A (Depending on Charger)
Maximum Output Power: Up to 100W
Voltage Selection: On-board Push Button
Trigger Function: Requests Required PD Voltage from Compatible Charger
Board Type: Bare PCB Module
Mounting: 2 Mounting Holes
Protection: Depends on Connected PD Charger
Compact & Lightweight Design
Easy Solder Pad Output (+ / â)
Compatible with PD Fast Chargers & Power Banks
Description

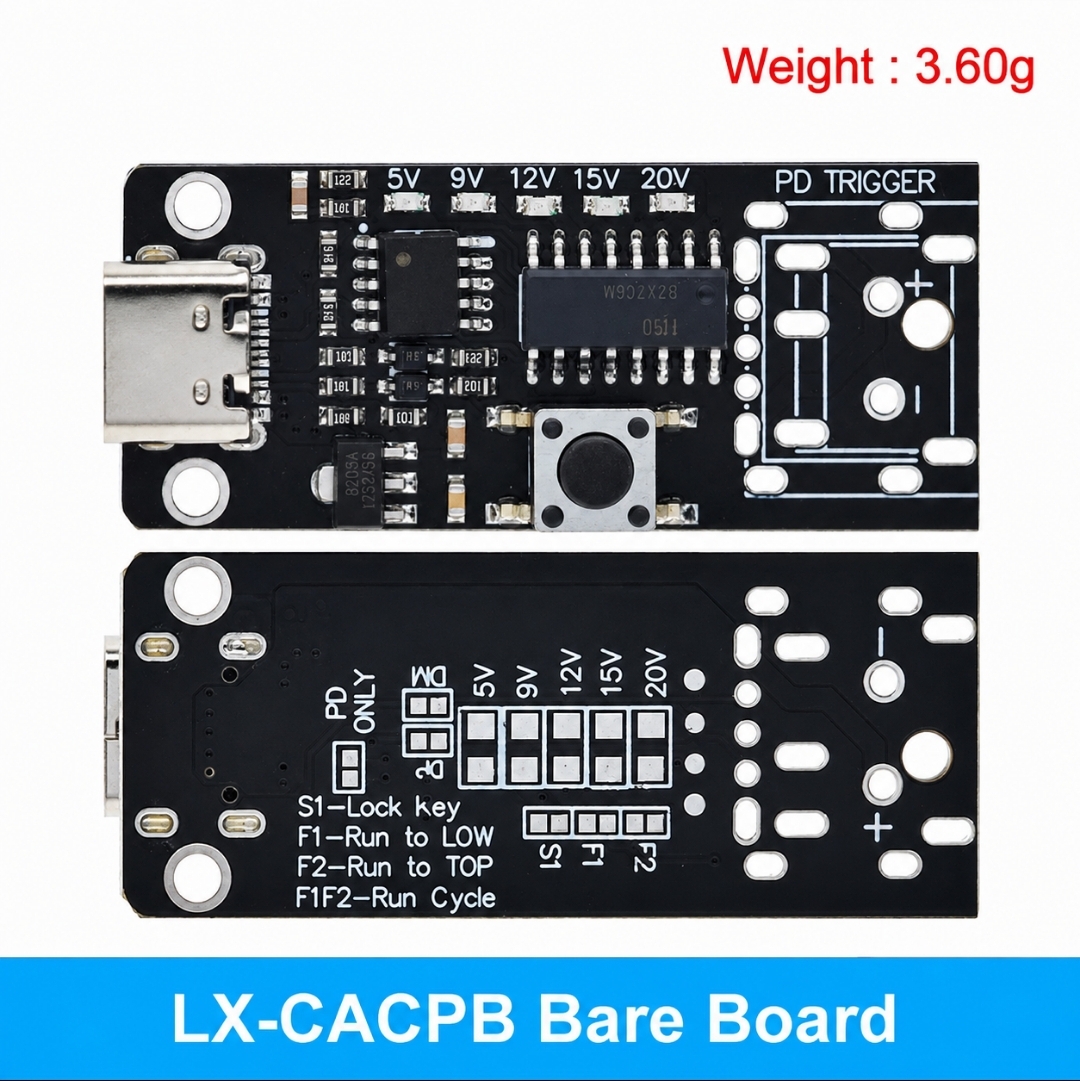

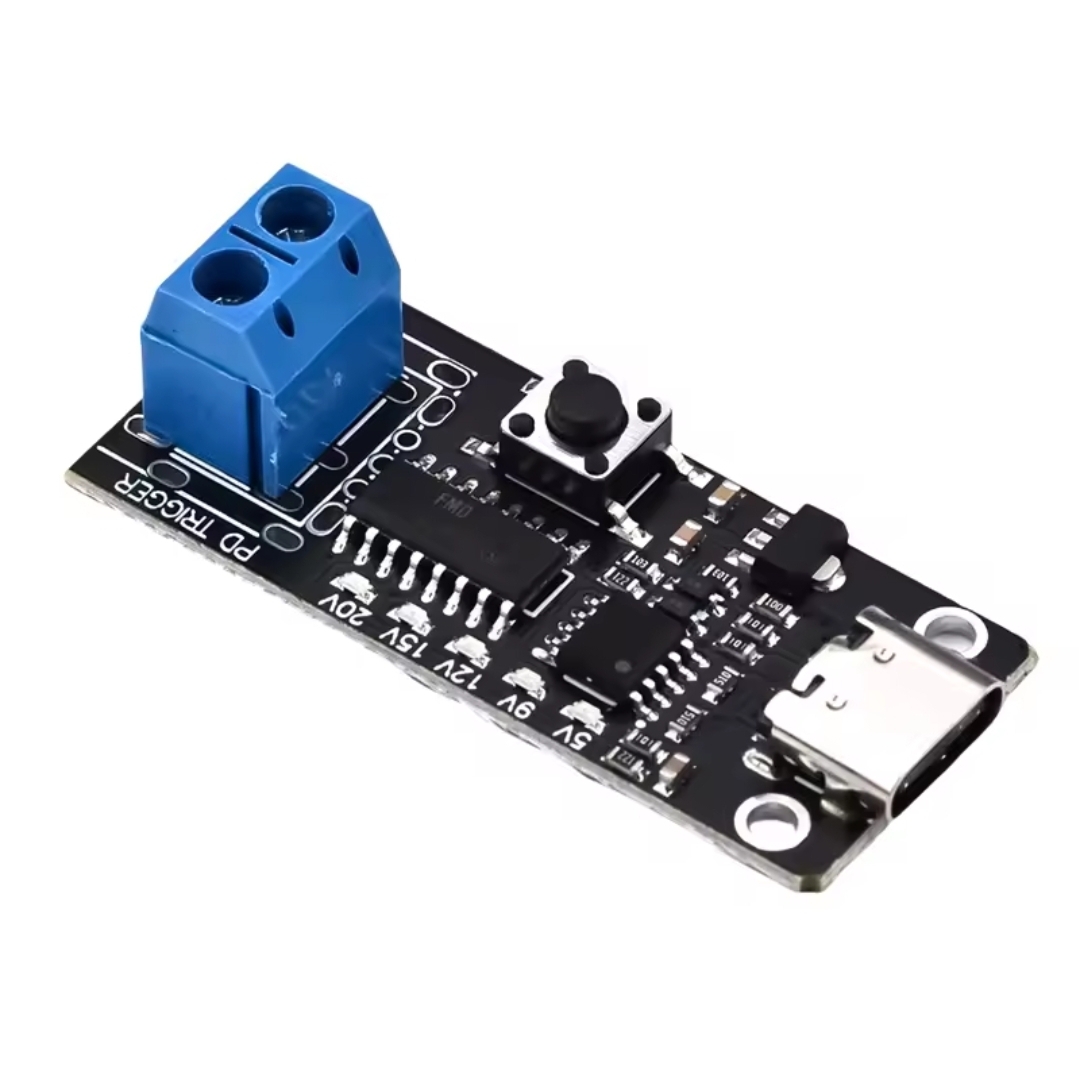

The 100W USB Type-C PD/QC Fast Charge Trigger Board Module is designed to trigger specific output voltages from USB-C Power Delivery (PD) chargers and compatible fast-charging power banks. With support for selectable 5V, 9V, 12V, 15V, and 20V outputs and up to 5A current, this compact module is ideal for powering DIY electronics, battery chargers, LED lighting projects, routers, soldering tools, and other DC devices. The on-board push button makes voltage selection quick and convenient while maintaining a compact, easy-to-install design.
Application
DIY electronic projects
USB-C PD powered battery chargers
Portable power bank output converter
LED lighting and testing circuits
Router, mini PC and DC device power supply
Robotics and embedded systems
Portable soldering iron power source
Electronic repair and laboratory testing
