Specification
Model: XL6019 DC-DC Boost Converter
IC Chip: XL6019
Converter Type: Step-Up (Boost)
Input Voltage: DC 3V–35V
Output Voltage: DC 5V–40V (Adjustable)
Maximum Output Current: 5A (Recommended ≤4A for continuous use)
Maximum Output Power: Up to 65W
Conversion Efficiency: Up to 94%
Switching Frequency: 400KHz
Output Voltage Adjustment: Multi-turn Precision Potentiometer
Protection: Over-temperature Protection (IC)
Input & Output: Screw Terminal Connectors
Mounting: 4 Mounting Holes
Cooling: Natural Air Cooling (Additional heatsink recommended for high power)
Description

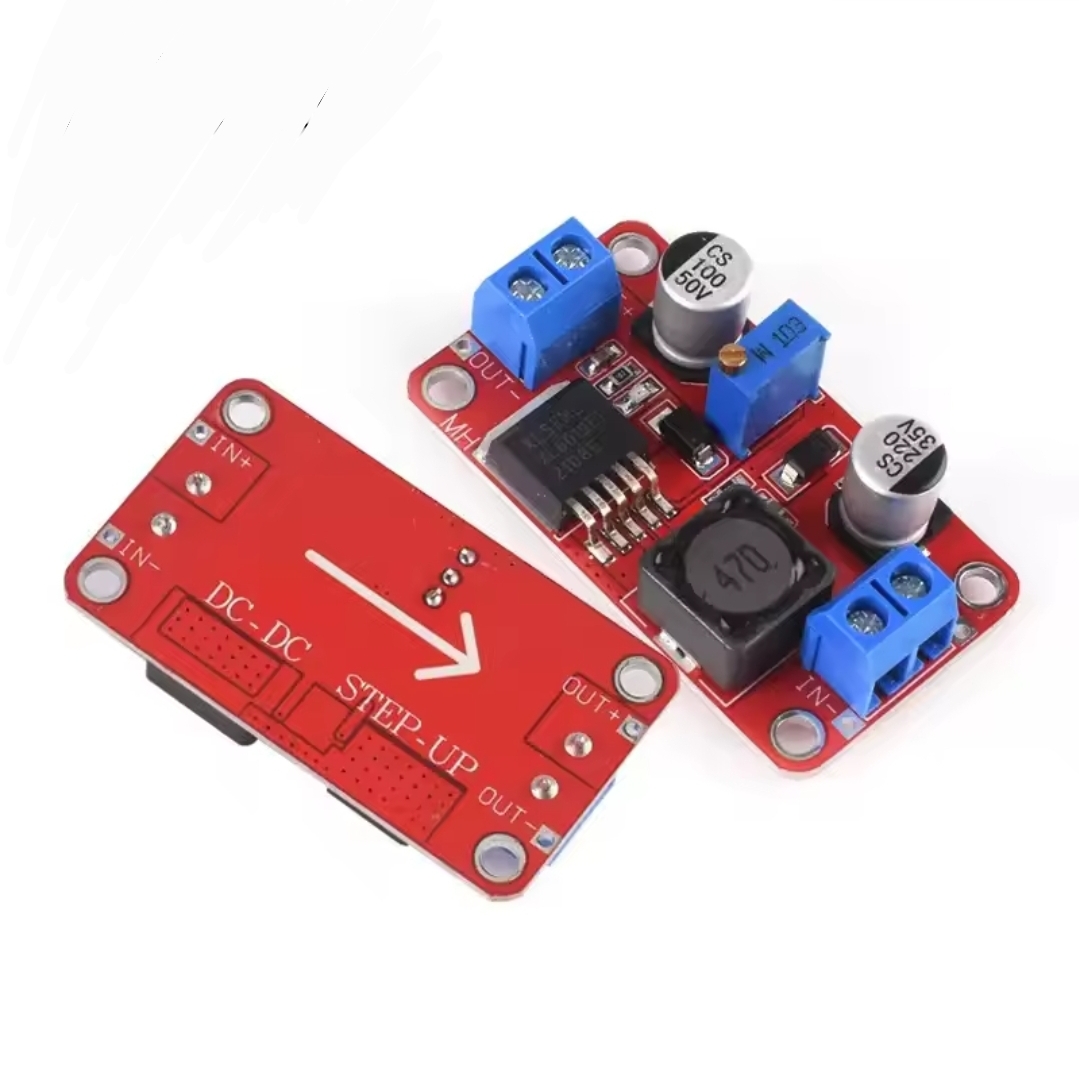

The XL6019 DC-DC Adjustable Boost Converter Module is a high-efficiency step-up power supply designed to increase a lower DC input voltage to a higher adjustable output voltage. Powered by the XL6019 switching regulator IC, it supports input voltages from 3V to 35V and provides an adjustable output of 5V to 40V with up to 5A output current. Featuring up to 94% conversion efficiency, precision voltage adjustment, and screw terminal connections, this module is ideal for battery-powered projects, LED drivers, solar systems, DIY electronics, and industrial DC power applications.
Application
Battery voltage boosting
Solar power systems
LED driver power supply
DIY electronic projects
Portable power supply circuits
Car electronics and automotive applications
Industrial DC power conversion
