Specification
Product Type: DC-DC Step-Up Boost Converter Module
Main IC: TPS61088
Input Voltage: DC Lithium Battery / DC Power Input
Output Voltage: 5V / 9V / 12V Selectable
Default Output: 12V
Maximum Output Current: Up to 10A*
Switching Frequency: 1MHz
Voltage Selection: Solder-Bridge Selection

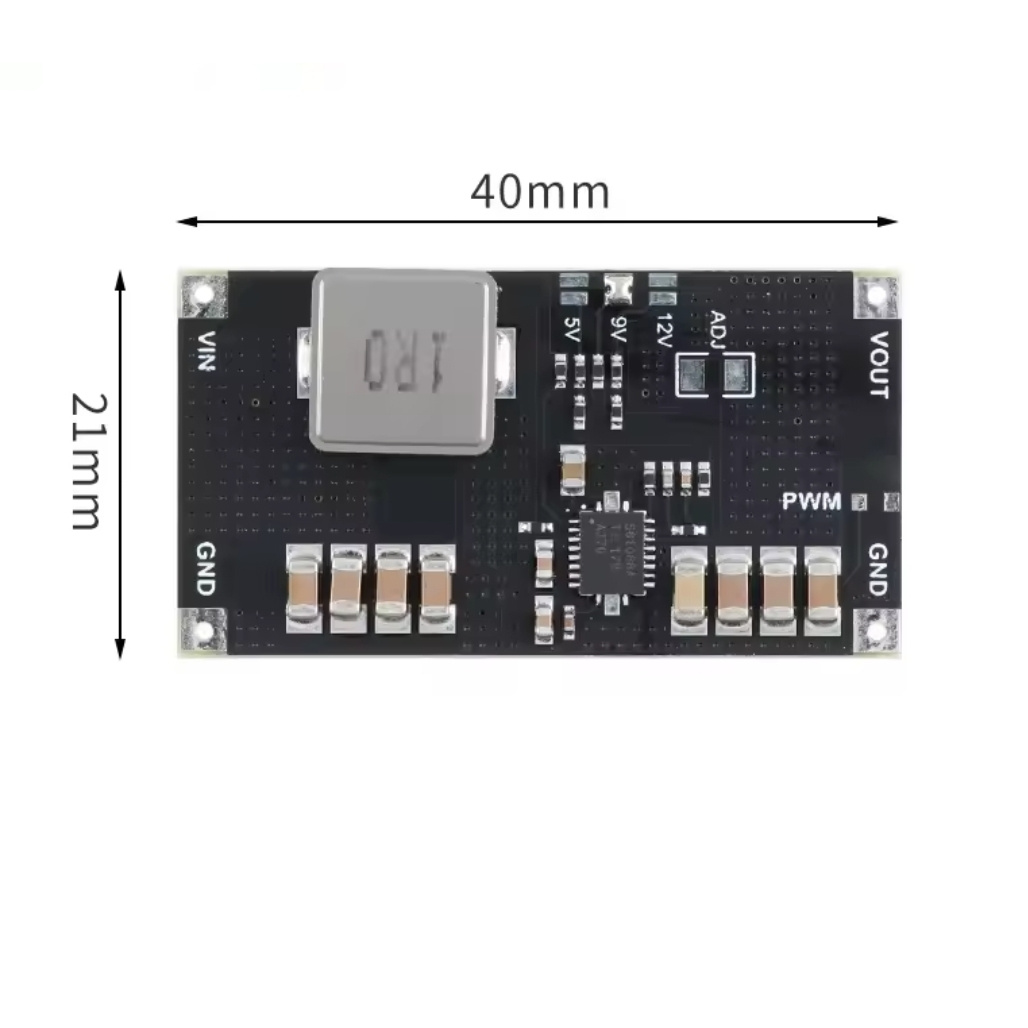

PCB Size: 40 Ã 21mm
Output Setting: 5V / 9V / 12V can be selected by shorting the corresponding solder pads
*Actual output current depends on input voltage, load, thermal conditions and cooling.
Description
TPS61088 High-Power Boost Converter Module āĻāĻāĻāĻŋ compact DC-DC Step-Up Power Supply Module, āĻ¯āĻž Lithium Battery āĻŦāĻž āĻ
āĻ¨ā§āĻ¯āĻžāĻ¨ā§āĻ¯ DC Power Source-āĻāĻ° Voltage āĻŦāĻžā§āĻžāĻ¨ā§āĻ° āĻāĻ¨ā§āĻ¯ āĻŦā§āĻ¯āĻŦāĻšāĻžāĻ° āĻāĻ°āĻž āĻ¯āĻžā§āĨ¤ Module-āĻāĻŋ default 12V output āĻ¸ā§āĻ āĻāĻ°āĻž āĻĨāĻžāĻā§āĨ¤ āĻĒā§āĻ°ā§ā§āĻāĻ¨ āĻ
āĻ¨ā§āĻ¯āĻžā§ā§ PCB-āĻāĻ° āĻ¨āĻŋāĻ°ā§āĻĻāĻŋāĻˇā§āĻ solder pad short āĻāĻ°ā§ 5V āĻ
āĻĨāĻŦāĻž 9V output āĻ¨āĻŋāĻ°ā§āĻŦāĻžāĻāĻ¨ āĻāĻ°āĻž āĻ¯āĻžā§āĨ¤ āĻŽāĻžāĻ¤ā§āĻ° 40 Ã 21mm PCB size āĻšāĻā§āĻžā§ āĻŦāĻŋāĻāĻŋāĻ¨ā§āĻ¨ DIY Electronics āĻ Portable Power Project-āĻ āĻ¸āĻšāĻā§ āĻŦā§āĻ¯āĻŦāĻšāĻžāĻ° āĻāĻ°āĻž āĻ¯āĻžā§āĨ¤
Application
Lithium Battery Voltage Boost
5V / 9V / 12V Power Supply
Router / ONU Backup Project
DIY UPS & IPS Project
Portable Power Bank Project
Arduino / ESP / Electronics Projects
LED & DC Device Power Supply
Rechargeable Fan Project
Battery-Powered Equipment
Custom DC Power Supply Applications
