Description

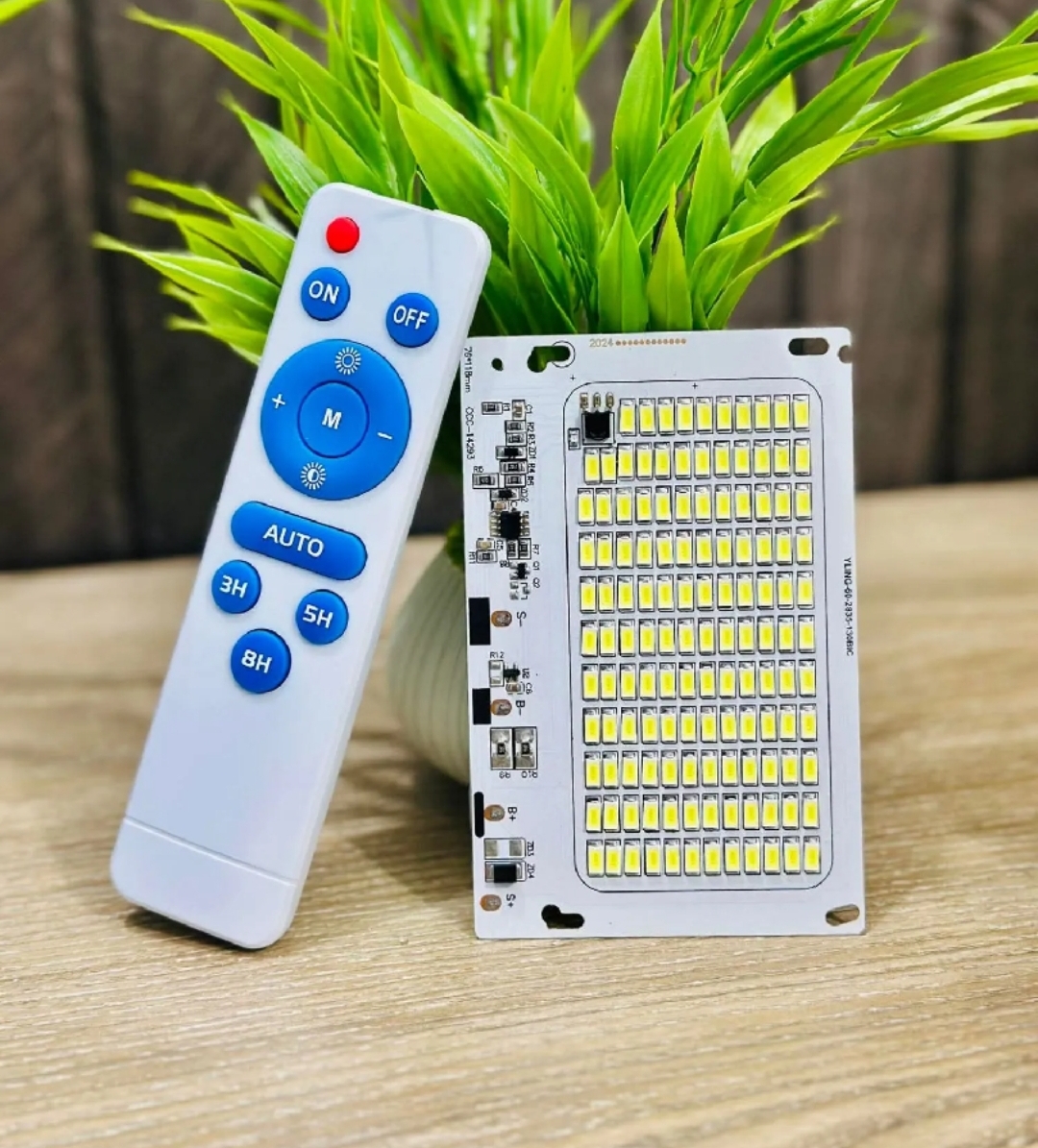

The 60W Solar LED Light Board (Model: YLING-60-2835-1306BC) is an all-in-one solar lighting driver and LED panel module equipped with high-brightness SMD 2835 LEDs and integrated charge controller circuitry. Designed for 3.2V LiFePO4 or 3.7V Lithium-ion battery systems, it features smart light-sensing automation for automatic dusk-to-dawn operation. The included infrared remote control allows full customization of brightness levels, manual power control, and preset timer durations (3H, 5H, 8H).
âSpecification
âManufacturer/Model: YLING-60-2835-1306BC
âRated Power: 60W
âCompatible Battery Voltage: 3.2V (LiFePO4) / 3.7V (Li-ion)
âSolar Panel Input Voltage: 5V â 6V DC
âLED Chip Type: High-Brightness SMD 2835
âTotal LED Count: 130 LED Chips
âPCB Dimensions: 76mm à 118mm
âBoard Material: Heat-dissipating Aluminum Substrate
âRemote Control Type: Infrared (IR) Wireless Remote
âRemote Functions: Power ON/OFF, Brightness Increase (+), Brightness Decrease (-), AUTO Mode, Mode Toggle (M), Timers (3H, 5H, 8H)
âControl Modes: Automatic Light Control (Dusk to Dawn), Manual IR Control, Timed Shutdown
âConnection Terminals: S+ / S- (Solar Panel Input), B+ / B- (Battery Connection)
âCircuit Protection: Integrated Charge Control, Over-discharge Protection, Overcurrent Protection
âApplication
âDirect replacement and repair of damaged circuit boards in 60W outdoor solar floodlights and street lamps
âCustom DIY solar lighting builds using 3.2V LiFePO4 (32700) or 3.7V Li-ion (18650) battery packs
âAutomated security lighting for courtyards, gardens, pathways, and perimeter fences
âOff-grid emergency and utility illumination for remote structures and farm sheds
