Description

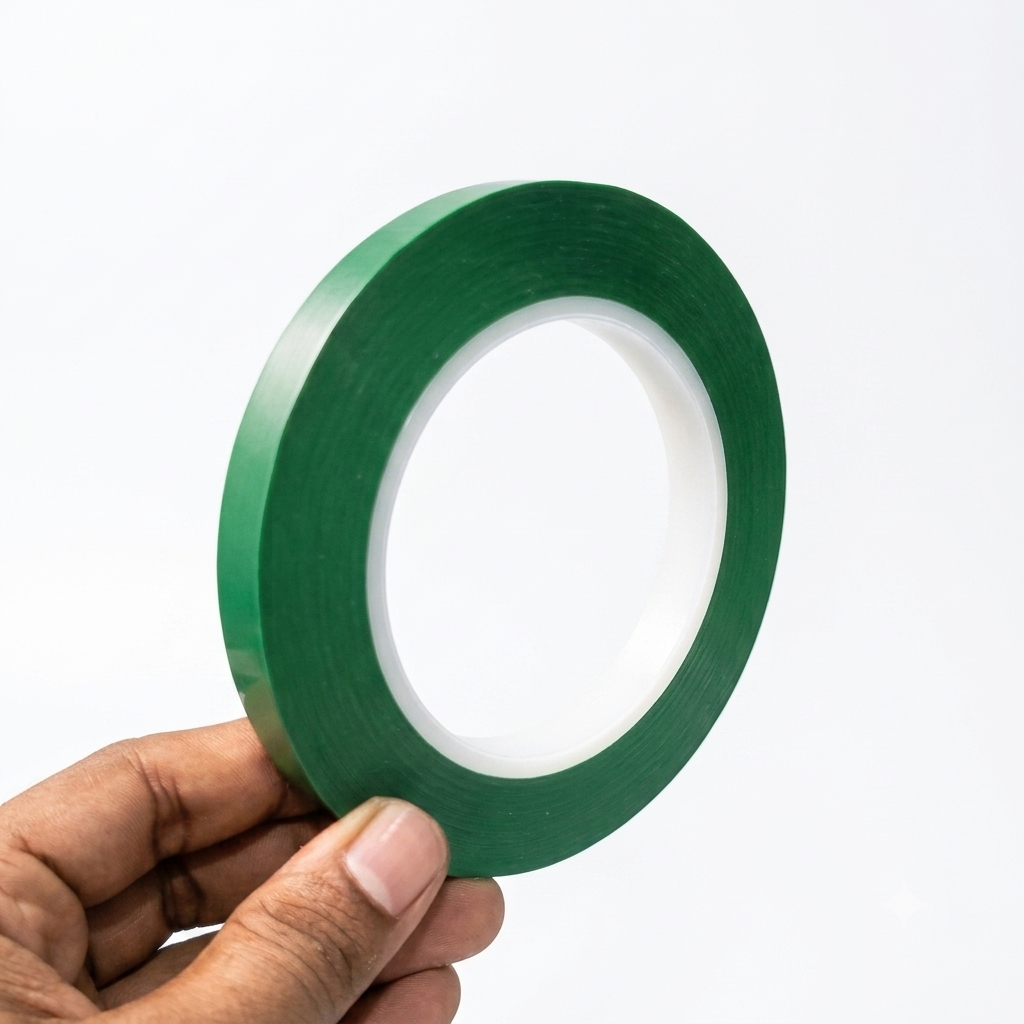

High-temperature resistant green PET insulation tape engineered with a pressure-sensitive silicone adhesive layer. It provides high dielectric strength, exceptional heat tolerance, and solvent resistance while leaving zero sticky residue upon removal. Designed specifically for high-stress electrical environments, battery pack wrapping, and circuit board masking during soldering operations.
Specification
Product Type: High-Temperature Thermal & Electrical Insulation Tape
Film Material: Polyethylene Terephthalate (PET) / High-Temp Polyester Film
Adhesive Type: Organic Silicone Adhesive
Color: Translucent Green
Tape Width: 10mm (1 cm)
Roll Length: 33 Meters (approx.)
Film Thickness: 0.06mm (60 microns)
Continuous Temperature Resistance: 180°C
Short-Term Peak Temperature: 200°C
Tensile Strength: ≥ 42 N / 25mm
Peel Adhesion: ≥ 6 N / 25mm
Elongation: 50%
Dielectric Breakdown Voltage: 4.5 kV
Residue Performance: Clean removal without surface residue
Resistance Properties: Acid, alkali, chemical solvent, moisture, and flame resistant
Application
Electrical insulation for LiFePO4, 18650, 32700, and pouch cell battery packs, protecting positive terminals and nickel tabs from short circuits
Securing highland barley paper, fish paper insulation, and balance wiring harnesses prior to spot welding and heat shrinking
High-temperature masking of gold fingers and sensitive PCB components during wave soldering, reflow soldering, and powder coating
Thermal insulation and layer winding for high-frequency transformers, electric motors, inductors, and relay coils
Surface protection and heat bed edge masking for 3D printers and high-temp industrial equipment
