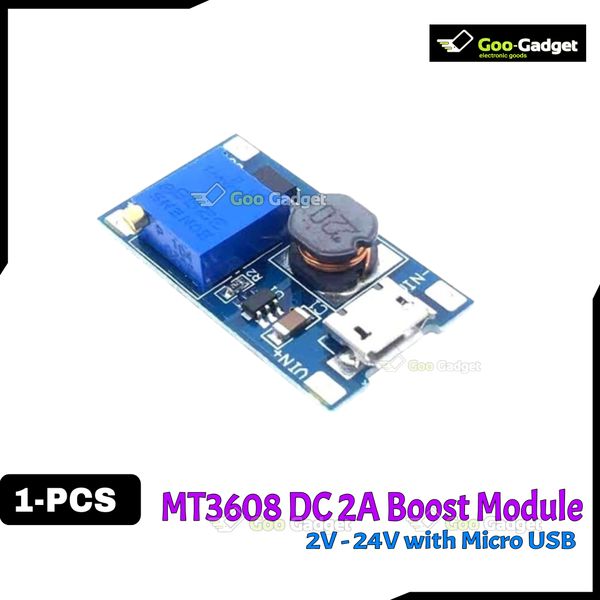

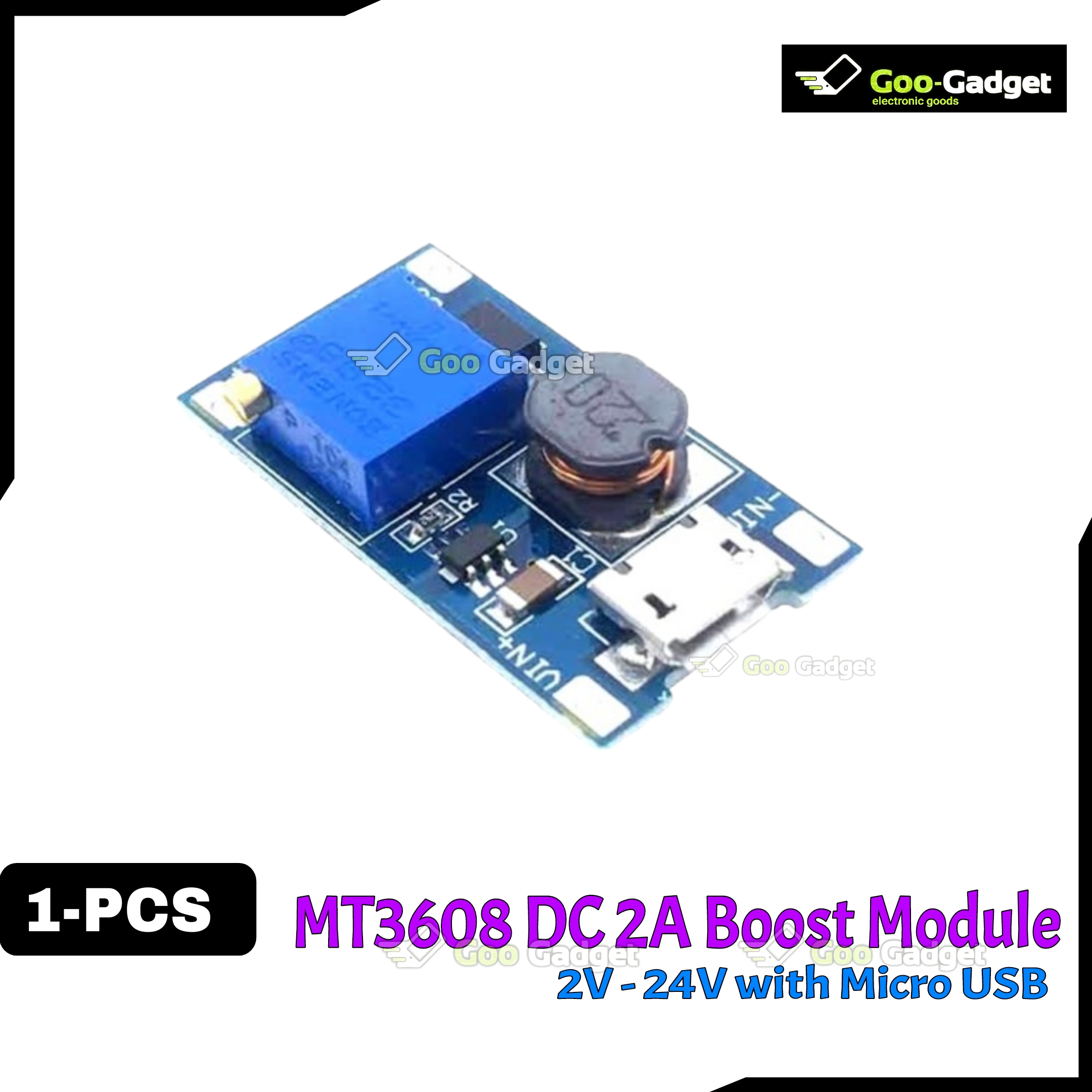

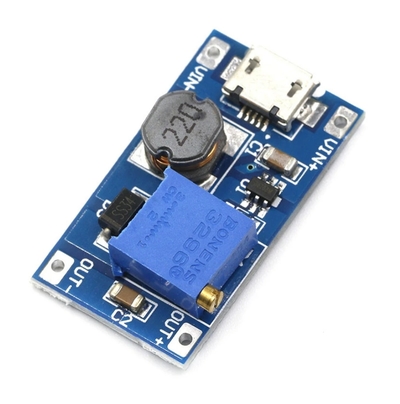

1-PCS MT3608 2A DC Boost Converter
Specifications:
- Input Voltage Range: DC 2V - 24V
- Output Voltage Range: DC 5V - 28V (adjustable)
- Maximum Output Current: 2A (with adequate heat dissipation)
- Efficiency: Up to 93%
- Load Regulation: ±1%
- Switching Frequency: 1.2MHz
- Operating Temperature: -40°C to +85°C
- Dimensions: 36mm x 17mm x 6mm
- Weight: Approx. 5g
Applications:
- Powering devices requiring a higher voltage than available input.
- DIY electronics projects and robotics.
- Portable chargers for batteries and USB devices.
- LED drivers and voltage boosting for displays.
- Conversion of solar panel output for various applications.
Description:
The MT3608 DC-DC Step-Up Boost Converter is a compact and efficient voltage regulator module designed to boost lower DC input voltages to higher output levels. It operates with a wide input range (2V-24V) and provides an adjustable output range of 5V to 28V, making it ideal for powering various electronic devices. With its high efficiency and compact size, this module is perfect for portable applications, DIY electronics, and situations where space is limited. The onboard potentiometer allows for easy voltage adjustment.
MT3608 DC-DC Step-Up Boost Converter Module 2A | 2V-24V Input To 5V-28V Output
65 BDT75 BDTSave 10 BDT
Total sold : 1289
1-PCS MT3608 2A DC Boost Converter
Specifications:
- Input Voltage Range: DC 2V - 24V
- Output Voltage Range: DC 5V - 28V (adjustable)
- Maximum Output Current: 2A (with adequate heat dissipation)
- Efficiency: Up to 93%
- Load Regulation: ±1%
- Switching Frequency: 1.2MHz
- Operating Temperature: -40°C to +85°C
- Dimensions: 36mm x 17mm x 6mm
- Weight: Approx. 5g
Applications:
- Powering devices requiring a higher voltage than available input.
- DIY electronics projects and robotics.
- Portable chargers for batteries and USB devices.
- LED drivers and voltage boosting for displays.
- Conversion of solar panel output for various applications.
Description:
The MT3608 DC-DC Step-Up Boost Converter is a compact and efficient voltage regulator module designed to boost lower DC input voltages to higher output levels. It operates with a wide input range (2V-24V) and provides an adjustable output range of 5V to 28V, making it ideal for powering various electronic devices. With its high efficiency and compact size, this module is perfect for portable applications, DIY electronics, and situations where space is limited. The onboard potentiometer allows for easy voltage adjustment.
