1S-8S 18650 Li-ion Lipo Lithium 5-30V Lead Acid Battery Level Indicator Tester LCD Display Meter Module Capacity Voltage Meter | Goo Gadget
Working current:<10mA<br><br>Working voltage: DC5V-30<br><br>Display mode: LED indicator<br><br>Refresh speed: 500ms/time<br><br>Appearance dimension: 46mm * 15mm * 3mm<br><br>LED displays different colors for different battery types:<br>Red light=lithium ternary battery<br>Green light=lithium iron phosphate battery<br>Yellow light=lead acid battery<br><br>Function setting:<br>1: Press and hold the key for 2 seconds to enter the setting state: the mode light (battery 1 type) flashes, and the string number light is always on; Briefly press the key to select the battery type.<br>2:After confirming the battery type, press and hold the key for 2 seconds to enter the string number 2/voltage setting (the mode light is always on, and the string number/voltage light flashes)<br>3. Press the button to set the battery string number or voltage; Please refer to the above table option settings for details.<br>4:After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)<br>5 In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.<br><br>1. The first time the product is powered on, the default is 3S voltage of ternary lithium battery.<br><br>2. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption. You can manually press the key briefly to close the display and enter low power consumption; When the product is turned off, press the key briefly to turn it on and display the power.<br><br> | বিভিন্ন ইলেকট্রিক gadgets সহ,18650 পলিমার ব্যাটারি পাবেন আমাদের কাছে। তো দেরি না করে এখনি অর্ডার করুন।Goo Gadget...
Goo Gadget
Category List
All products
Working current:<10mA
Working voltage: DC5V-30
Display mode: LED indicator
Refresh speed: 500ms/time

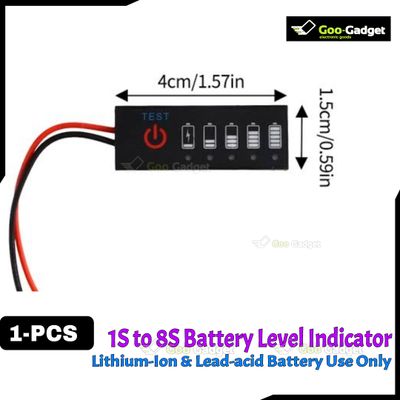

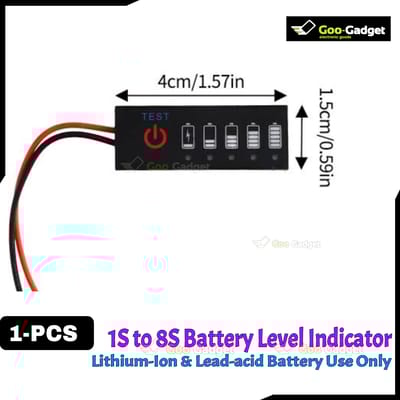

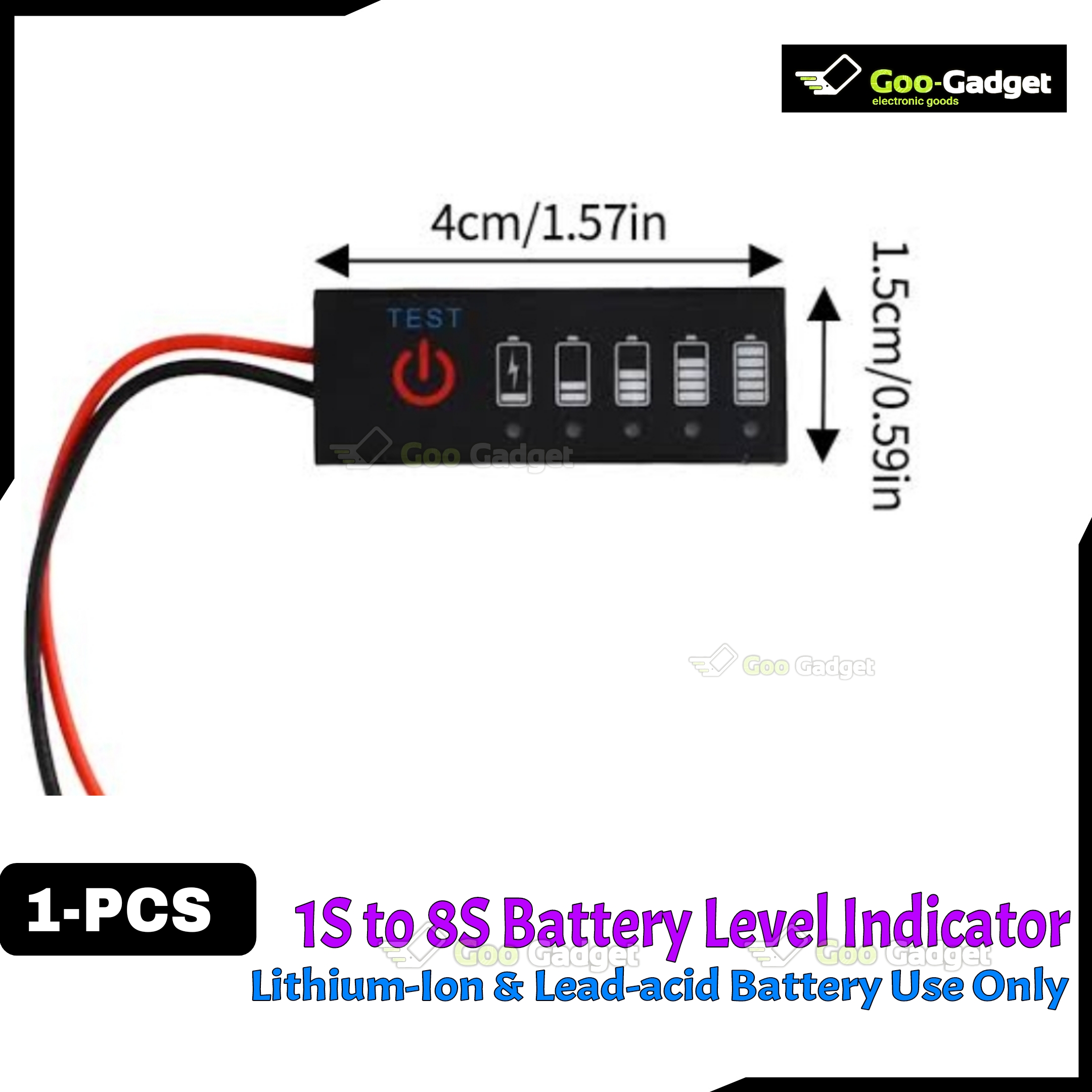

Appearance dimension: 46mm * 15mm * 3mm
LED displays different colors for different battery types:
Red light=lithium ternary battery
Green light=lithium iron phosphate battery
Yellow light=lead acid battery

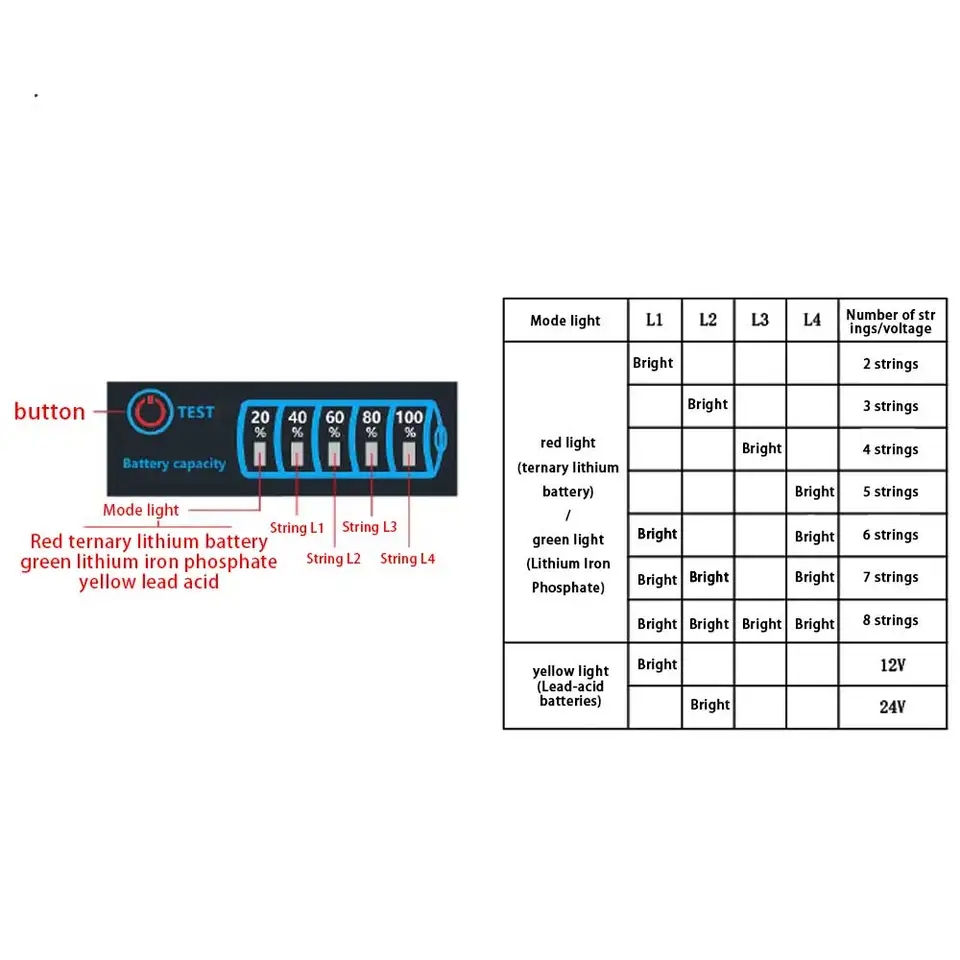

Function setting:
1: Press and hold the key for 2 seconds to enter the setting state: the mode light (battery 1 type) flashes, and the string number light is always on; Briefly press the key to select the battery type.
2:After confirming the battery type, press and hold the key for 2 seconds to enter the string number 2/voltage setting (the mode light is always on, and the string number/voltage light flashes)
3. Press the button to set the battery string number or voltage; Please refer to the above table option settings for details.
4:After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)
5 In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.
1. The first time the product is powered on, the default is 3S voltage of ternary lithium battery.
2. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption. You can manually press the key briefly to close the display and enter low power consumption; When the product is turned off, press the key briefly to turn it on and display the power.
Working voltage: DC5V-30
Display mode: LED indicator
Refresh speed: 500ms/time
Appearance dimension: 46mm * 15mm * 3mm
LED displays different colors for different battery types:
Red light=lithium ternary battery
Green light=lithium iron phosphate battery
Yellow light=lead acid battery
Function setting:
1: Press and hold the key for 2 seconds to enter the setting state: the mode light (battery 1 type) flashes, and the string number light is always on; Briefly press the key to select the battery type.
2:After confirming the battery type, press and hold the key for 2 seconds to enter the string number 2/voltage setting (the mode light is always on, and the string number/voltage light flashes)
3. Press the button to set the battery string number or voltage; Please refer to the above table option settings for details.
4:After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)
5 In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.
1. The first time the product is powered on, the default is 3S voltage of ternary lithium battery.
2. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption. You can manually press the key briefly to close the display and enter low power consumption; When the product is turned off, press the key briefly to turn it on and display the power.
1S-8S 18650 Li-ion Lipo Lithium 5-30V Lead Acid Battery Level Indicator Tester LCD Display Meter Module Capacity Voltage Meter
160 BDT200 BDTSave 40 BDT
sold_units 10
1
Working current:<10mA
Working voltage: DC5V-30
Display mode: LED indicator
Refresh speed: 500ms/time
Appearance dimension: 46mm * 15mm * 3mm
LED displays different colors for different battery types:
Red light=lithium ternary battery
Green light=lithium iron phosphate battery
Yellow light=lead acid battery
Function setting:
1: Press and hold the key for 2 seconds to enter the setting state: the mode light (battery 1 type) flashes, and the string number light is always on; Briefly press the key to select the battery type.
2:After confirming the battery type, press and hold the key for 2 seconds to enter the string number 2/voltage setting (the mode light is always on, and the string number/voltage light flashes)
3. Press the button to set the battery string number or voltage; Please refer to the above table option settings for details.
4:After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)
5 In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.
1. The first time the product is powered on, the default is 3S voltage of ternary lithium battery.
2. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption. You can manually press the key briefly to close the display and enter low power consumption; When the product is turned off, press the key briefly to turn it on and display the power.
Working voltage: DC5V-30
Display mode: LED indicator
Refresh speed: 500ms/time
Appearance dimension: 46mm * 15mm * 3mm
LED displays different colors for different battery types:
Red light=lithium ternary battery
Green light=lithium iron phosphate battery
Yellow light=lead acid battery
Function setting:
1: Press and hold the key for 2 seconds to enter the setting state: the mode light (battery 1 type) flashes, and the string number light is always on; Briefly press the key to select the battery type.
2:After confirming the battery type, press and hold the key for 2 seconds to enter the string number 2/voltage setting (the mode light is always on, and the string number/voltage light flashes)
3. Press the button to set the battery string number or voltage; Please refer to the above table option settings for details.
4:After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)
5 In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.
1. The first time the product is powered on, the default is 3S voltage of ternary lithium battery.
2. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption. You can manually press the key briefly to close the display and enter low power consumption; When the product is turned off, press the key briefly to turn it on and display the power.
