Details:
- Warranty700

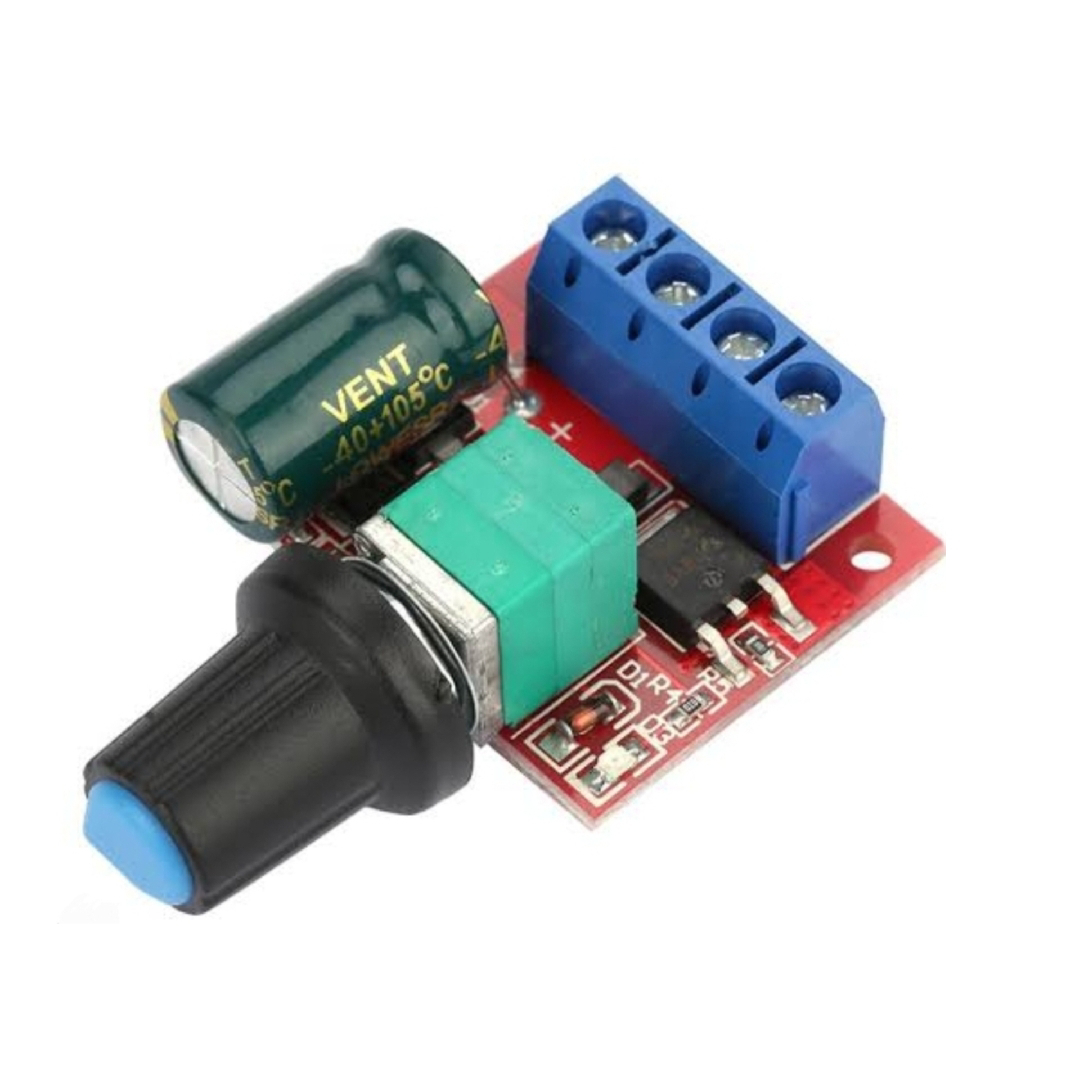

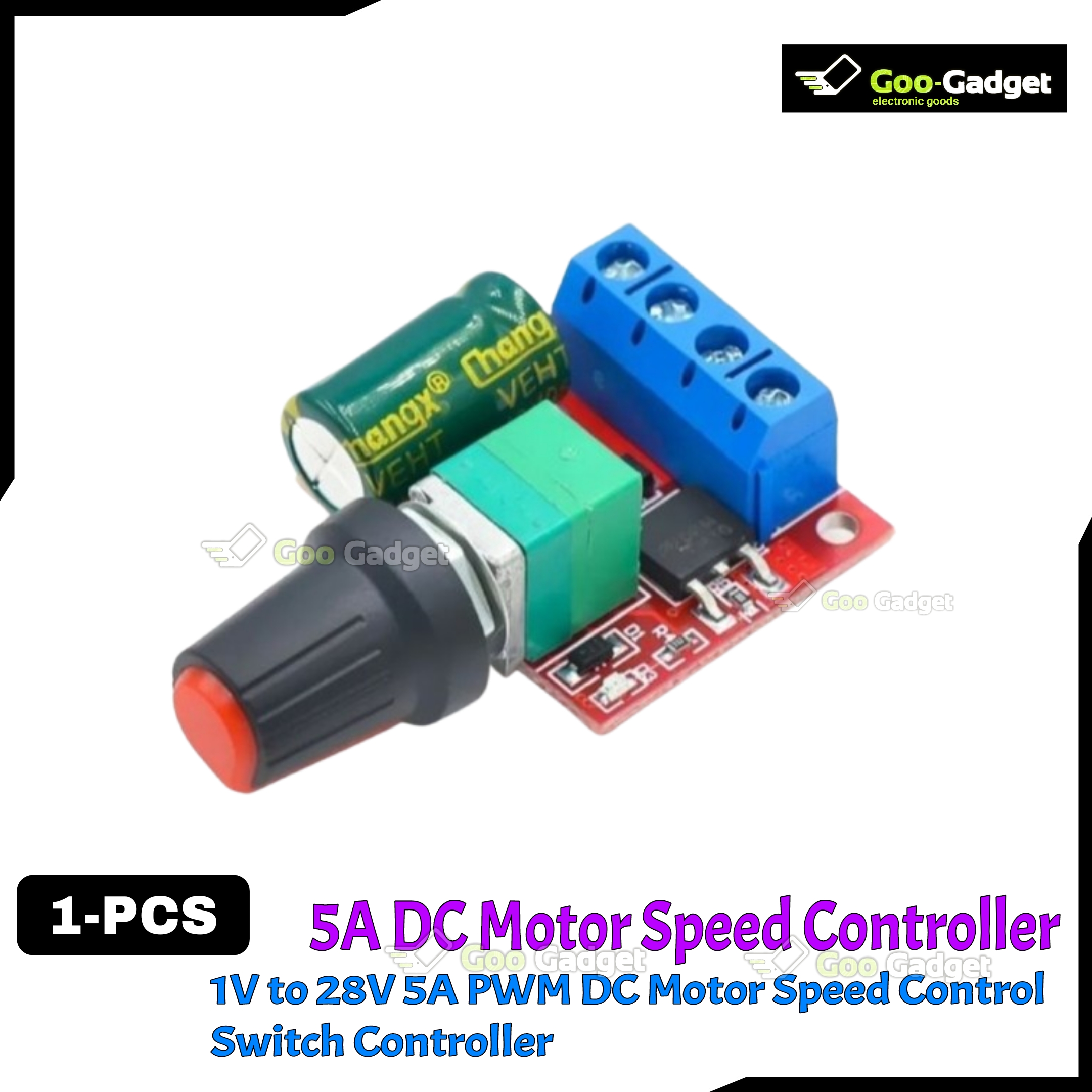

1-PCS PWM DC Motor Speed Controller Module
Specifications:
- Item Type: PWM Motor Speed Control Switch
- Working Voltage: DC 4.5V to 28V
- Output Current: 0 to 5A
- Output Power: Maximum 90W
- Quiescent Current: 7µA (standby state)
- PWM Duty Cycle: 1% to 100%
- PWM Frequency: 20kHz
- Module Size: Approx. 50mm x 32mm x 15mm
- Weight: Approx. 16g
- Control Mode: Pulse Width Modulation (PWM)
- Potentiometer: Adjustable knob for precise speed control
- Protection Features: Overcurrent and short-circuit protection
Applications:
- DIY Robotics: Control the speed of motors and actuators for robotic systems.
- RC Vehicles: Adjust motor speed for remote-controlled vehicles.
- Cooling Systems: Regulate fan speed for efficient thermal management.
- LED Lighting: Dimming control for LED strips and bulbs.
- Home Appliances: Speed control for small DC-powered devices.
- Automation Projects: Use in automated systems requiring adjustable speed.
Description:
The PWM DC Motor Speed Controller Module is a highly versatile and efficient controller for DC motors. Operating within a voltage range of 4.5V to 28V, this module allows for smooth speed control through Pulse Width Modulation (PWM), offering a duty cycle range of 1% to 100% and a high PWM frequency of 20kHz for optimal performance.
This module supports output currents up to 5A and a maximum power output of 90W, making it suitable for various applications, including motor-driven projects and fan speed regulation. The quiescent current of 7µA ensures low power consumption when the module is in standby. Built-in protection features safeguard against overcurrent and short-circuit conditions, promoting safe operation.
