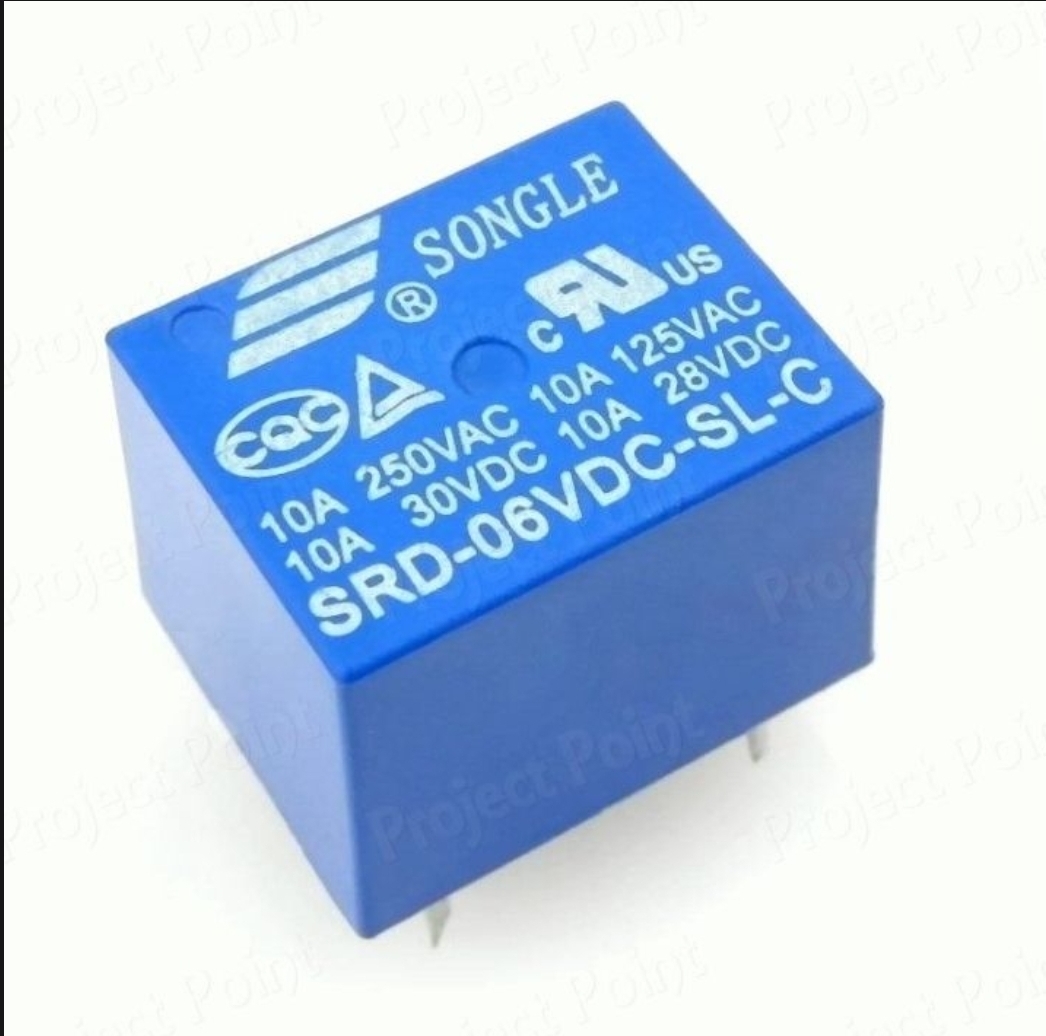

6V Relay Switch DC 6V Relay 5 Pin 10A SRD-06VDC-SL-C PCB Mount Power Relay Switches 220V 10A
Coil Voltage: 6V DC2. Contact Type: SPDT (Single Pole Double Throw)3. Contact Rating:AC Load: 10A at 250V ACDC Load: 10A at 30V DC4. Contact Resistance: ≤ 100mΩ5. Coil Resistance: Typically around 70Ω (varies by model)6. Insulation Resistance: ≥ 100MΩ at 500V DC7. Dielectric Strength:Coil to Contacts: 1500V AC for 1 minuteBetween Contacts: 1000V AC for 1 minute8. Operating Time: ≤ 10ms9. Release Time: ≤ 5ms10. Pin Configuration: 5 pins (Coil, Common, Normally Closed (NC), Normally Open (NO))11. Operating Temperature: -40°C to +85°C12. Mounting Style: PCB mountable13. Dimensions: Approximately 19mm x 15mm x 15mm (can vary slightly depending on manufacturer).
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Coil Voltage: 6V DC
2. Contact Type: SPDT (Single Pole Double Throw)
3. Contact Rating:
AC Load: 10A at 250V AC
DC Load: 10A at 30V DC
4. Contact Resistance: ≤ 100mΩ
5. Coil Resistance: Typically around 70Ω (varies by model)
6. Insulation Resistance: ≥ 100MΩ at 500V DC
7. Dielectric Strength:
Coil to Contacts: 1500V AC for 1 minute
Between Contacts: 1000V AC for 1 minute
8. Operating Time: ≤ 10ms
9. Release Time: ≤ 5ms
10. Pin Configuration: 5 pins (Coil, Common, Normally Closed (NC), Normally Open (NO))
11. Operating Temperature: -40°C to +85°C
12. Mounting Style: PCB mountable
13. Dimensions: Approximately 19mm x 15mm x 15mm (can vary slightly depending on manufacturer).
2. Contact Type: SPDT (Single Pole Double Throw)
3. Contact Rating:
AC Load: 10A at 250V AC
DC Load: 10A at 30V DC
4. Contact Resistance: ≤ 100mΩ
5. Coil Resistance: Typically around 70Ω (varies by model)
6. Insulation Resistance: ≥ 100MΩ at 500V DC
7. Dielectric Strength:
Coil to Contacts: 1500V AC for 1 minute
Between Contacts: 1000V AC for 1 minute
8. Operating Time: ≤ 10ms
9. Release Time: ≤ 5ms
10. Pin Configuration: 5 pins (Coil, Common, Normally Closed (NC), Normally Open (NO))
11. Operating Temperature: -40°C to +85°C
12. Mounting Style: PCB mountable
13. Dimensions: Approximately 19mm x 15mm x 15mm (can vary slightly depending on manufacturer).
6V Relay Switch DC 6V Relay 5 Pin 10A SRD-06VDC-SL-C PCB Mount Power Relay Switches 220V 10A
29 BDT35 BDTSave 6 BDT
Total sold : 14
Coil Voltage: 6V DC
2. Contact Type: SPDT (Single Pole Double Throw)
3. Contact Rating:
AC Load: 10A at 250V AC
DC Load: 10A at 30V DC
4. Contact Resistance: ≤ 100mΩ
5. Coil Resistance: Typically around 70Ω (varies by model)
6. Insulation Resistance: ≥ 100MΩ at 500V DC
7. Dielectric Strength:
Coil to Contacts: 1500V AC for 1 minute
Between Contacts: 1000V AC for 1 minute
8. Operating Time: ≤ 10ms
9. Release Time: ≤ 5ms
10. Pin Configuration: 5 pins (Coil, Common, Normally Closed (NC), Normally Open (NO))
11. Operating Temperature: -40°C to +85°C
12. Mounting Style: PCB mountable
13. Dimensions: Approximately 19mm x 15mm x 15mm (can vary slightly depending on manufacturer).
2. Contact Type: SPDT (Single Pole Double Throw)
3. Contact Rating:
AC Load: 10A at 250V AC
DC Load: 10A at 30V DC
4. Contact Resistance: ≤ 100mΩ
5. Coil Resistance: Typically around 70Ω (varies by model)
6. Insulation Resistance: ≥ 100MΩ at 500V DC
7. Dielectric Strength:
Coil to Contacts: 1500V AC for 1 minute
Between Contacts: 1000V AC for 1 minute
8. Operating Time: ≤ 10ms
9. Release Time: ≤ 5ms
10. Pin Configuration: 5 pins (Coil, Common, Normally Closed (NC), Normally Open (NO))
11. Operating Temperature: -40°C to +85°C
12. Mounting Style: PCB mountable
13. Dimensions: Approximately 19mm x 15mm x 15mm (can vary slightly depending on manufacturer).
