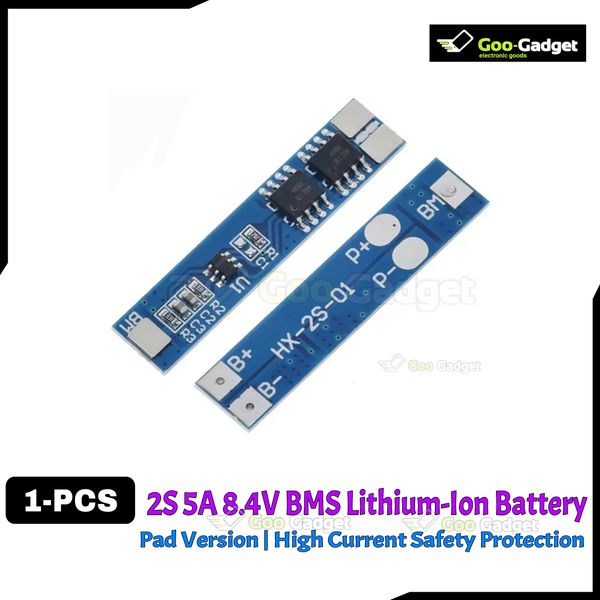

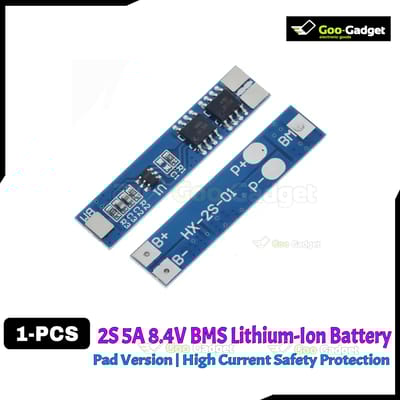

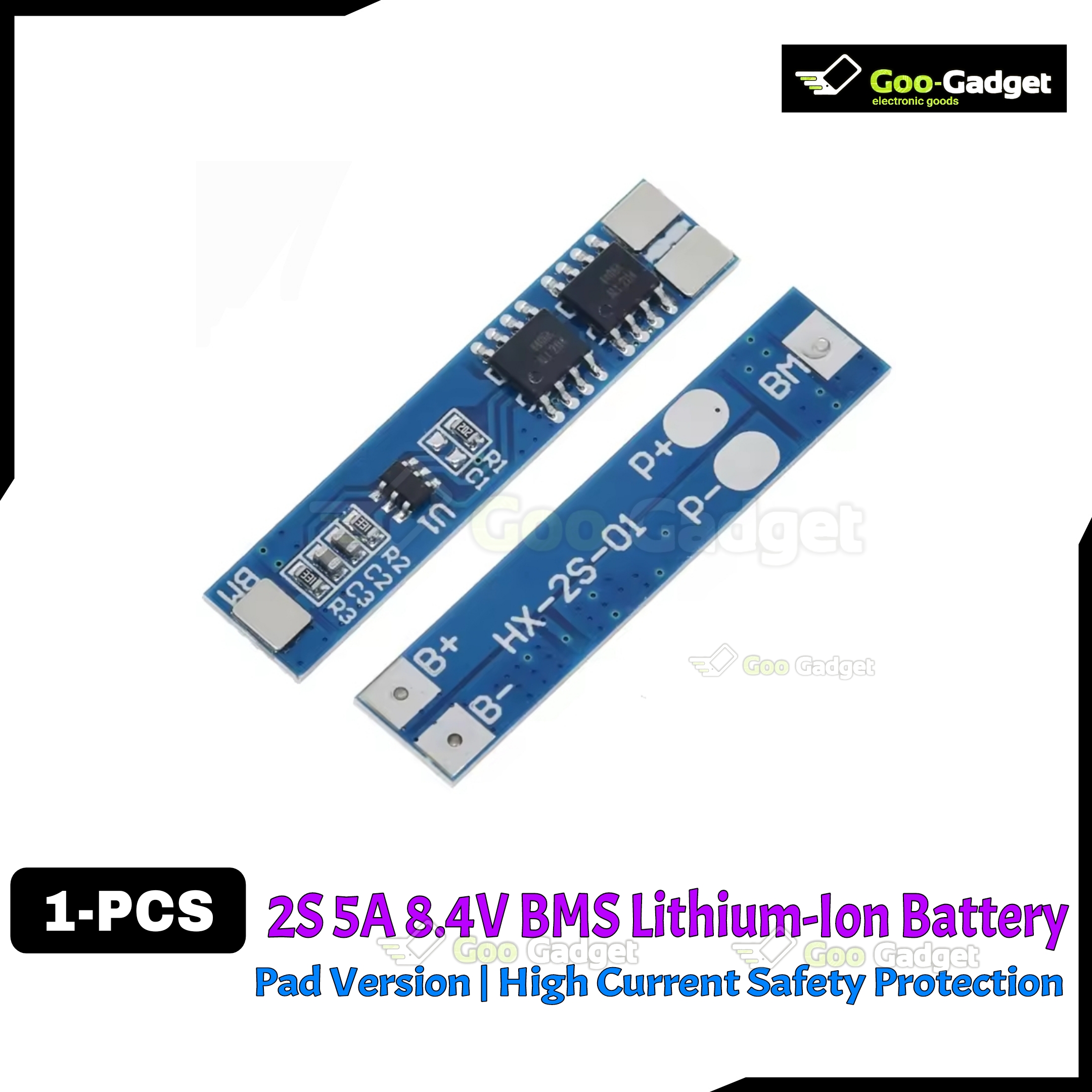

2S 5A BMS 18650 Lithium Battery Protection Board | 7.4V–8.4V Charger BMS Module | Pad Version | High Current Safety Protection

Specifications:Battery Type: 18650 Lithium-IonConfiguration: 2S (2 cells in series)Rated Voltage: 7.4VFull Charge Voltage: 8.4VMaximum Continuous Discharge Current: 5AOvercharge Protection Voltage: 4.25V ± 0.05VOverdischarge Protection Voltage: 2.5V ± 0.05VOvercurrent Protection: YesShort Circuit Protection: YesBalance Function: NoBoard Type: Pad ModuleDimensions: Approx. 45mm x 15mmWeight: ~5gColor: Green PCBDescription:The 2S 5A Lithium Battery Protection Board is a compact and reliable BMS module designed for 2-cell 18650 Li-ion battery packs. It provides essential safety features like overcharge, overdischarge, overcurrent, and short circuit protection. This board ensures long battery life and safe operation under 5A current loads. With pad-type connections, it’s easy to integrate into custom battery pack designs, ideal for electronics, DIY power banks, and small-scale battery-powered projects.Applications:DIY 2S 18650 battery packsPortable electronics power suppliesSmall electric toolsSolar-powered battery systemsCustom rechargeable projects

Categories

Category List

All products

Lifepo4 Battery

Bike/Car Self-Start LiFePO4 Battery

Buck/Boost

Amplifier

Tools

Spot Welding

BMS

Humidifier

PowerBank

Fan

Charger

Battery

Motor & Propeller

Soldering KIT

Connector

•
•
•

Specifications:

1. Battery Type: 18650 Lithium-Ion
2. Configuration: 2S (2 cells in series)
3. Rated Voltage: 7.4V
4. Full Charge Voltage: 8.4V
5. Maximum Continuous Discharge Current: 5A
6. Overcharge Protection Voltage: 4.25V ± 0.05V
7. Overdischarge Protection Voltage: 2.5V ± 0.05V
8. Overcurrent Protection: Yes
9. Short Circuit Protection: Yes
10. Balance Function: No
11. Board Type: Pad Module
12. Dimensions: Approx. 45mm x 15mm
13. Weight: ~5g
14. Color: Green PCB

Description:

The 2S 5A Lithium Battery Protection Board is a compact and reliable BMS module designed for 2-cell 18650 Li-ion battery packs. It provides essential safety features like overcharge, overdischarge, overcurrent, and short circuit protection. This board ensures long battery life and safe operation under 5A current loads. With pad-type connections, it’s easy to integrate into custom battery pack designs, ideal for electronics, DIY power banks, and small-scale battery-powered projects.

Applications:

1. DIY 2S 18650 battery packs
2. Portable electronics power supplies
3. Small electric tools
4. Solar-powered battery systems
5. Custom rechargeable projects

2S 5A BMS 18650 Lithium Battery Protection Board | 7.4V–8.4V Charger BMS Module | Pad Version | High Current Safety Protection

68 BDT85 BDTSave 17 BDT

Total sold : 16

Add to cartBuy now

Specifications:

1. Battery Type: 18650 Lithium-Ion
2. Configuration: 2S (2 cells in series)
3. Rated Voltage: 7.4V
4. Full Charge Voltage: 8.4V
5. Maximum Continuous Discharge Current: 5A
6. Overcharge Protection Voltage: 4.25V ± 0.05V
7. Overdischarge Protection Voltage: 2.5V ± 0.05V
8. Overcurrent Protection: Yes
9. Short Circuit Protection: Yes
10. Balance Function: No
11. Board Type: Pad Module
12. Dimensions: Approx. 45mm x 15mm
13. Weight: ~5g
14. Color: Green PCB

Description:

The 2S 5A Lithium Battery Protection Board is a compact and reliable BMS module designed for 2-cell 18650 Li-ion battery packs. It provides essential safety features like overcharge, overdischarge, overcurrent, and short circuit protection. This board ensures long battery life and safe operation under 5A current loads. With pad-type connections, it’s easy to integrate into custom battery pack designs, ideal for electronics, DIY power banks, and small-scale battery-powered projects.

Applications:

1. DIY 2S 18650 battery packs
2. Portable electronics power supplies
3. Small electric tools
4. Solar-powered battery systems
5. Custom rechargeable projects
