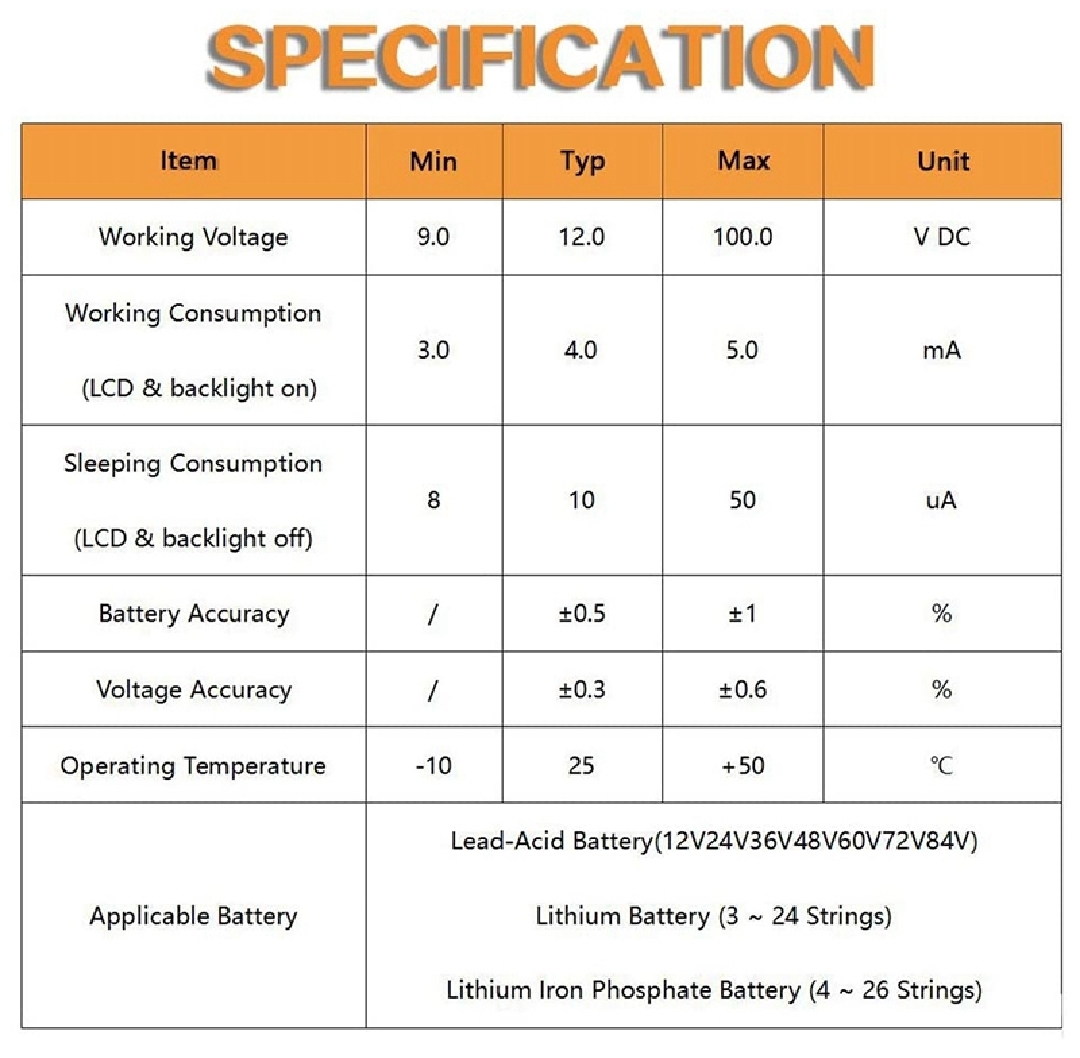

Specification:

1. Input Voltage Range: DC 12V / 24V / 36V / 48V / 60V / 72V / 84V (Auto-adaptive)
2. Display: LCD Screen (Available in Blue or Green)
3. Compatibility: Lead-Acid, Lithium-ion, AGM, GEL, and SLA batteries
4. Accuracy: ±1%
5. Display Function: Battery voltage + graphical battery level bar
6. Mounting: Embedded panel mount or surface use
7. Material: ABS plastic housing
8. Operating Temperature: -10°C to 65°C

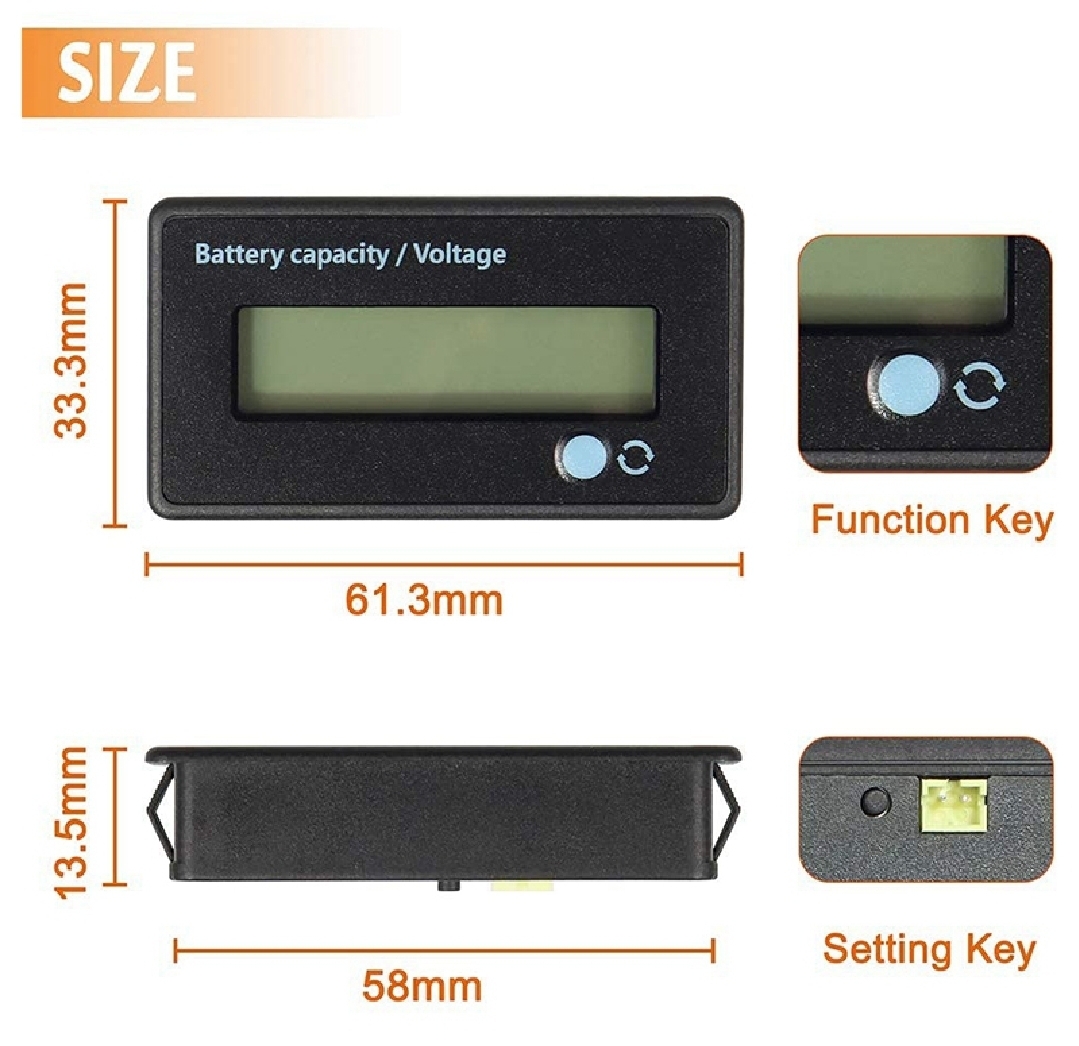

9. Dimensions: Approx. 61mm x 33mm
10. Power Consumption: Ultra-low standby current

Description:

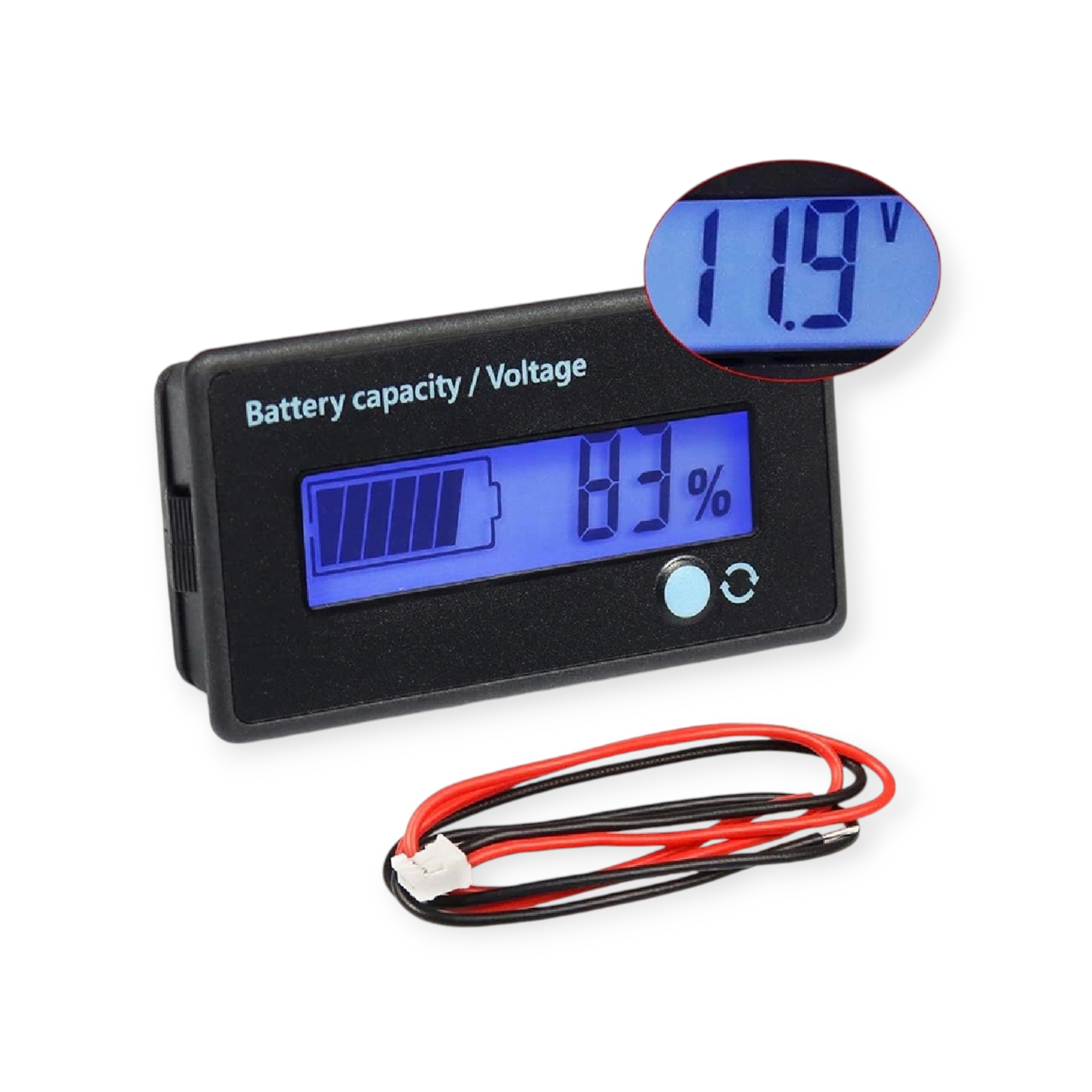

This multi-voltage digital battery capacity indicator is designed to monitor voltage and charge level for various battery types including lead-acid and lithium-ion. The clear LCD screen shows real-time voltage and battery percentage in bar graph format. Ideal for DIY solar setups, e-bikes, and battery-powered systems.

Application:

1. Electric bicycles and scooters
2. Solar power systems
3. Battery backup/UPS systems
4. Marine and RV battery monitoring
5. DIY battery packs and tools

12V/24V/36V/48V Battery Capacity Indicator LCD Display – Blue/Green | Acid, Lead-Acid & Lithium Battery Voltage Tester

530 BDT630 BDTSave 100 BDT

Total sold : 9

Add to cartBuy now

Specification:

1. Input Voltage Range: DC 12V / 24V / 36V / 48V / 60V / 72V / 84V (Auto-adaptive)
2. Display: LCD Screen (Available in Blue or Green)
3. Compatibility: Lead-Acid, Lithium-ion, AGM, GEL, and SLA batteries
4. Accuracy: ±1%
5. Display Function: Battery voltage + graphical battery level bar
6. Mounting: Embedded panel mount or surface use
7. Material: ABS plastic housing
8. Operating Temperature: -10°C to 65°C
9. Dimensions: Approx. 61mm x 33mm
10. Power Consumption: Ultra-low standby current

Description:

This multi-voltage digital battery capacity indicator is designed to monitor voltage and charge level for various battery types including lead-acid and lithium-ion. The clear LCD screen shows real-time voltage and battery percentage in bar graph format. Ideal for DIY solar setups, e-bikes, and battery-powered systems.

Application:

1. Electric bicycles and scooters
2. Solar power systems
3. Battery backup/UPS systems
4. Marine and RV battery monitoring
5. DIY battery packs and tools
