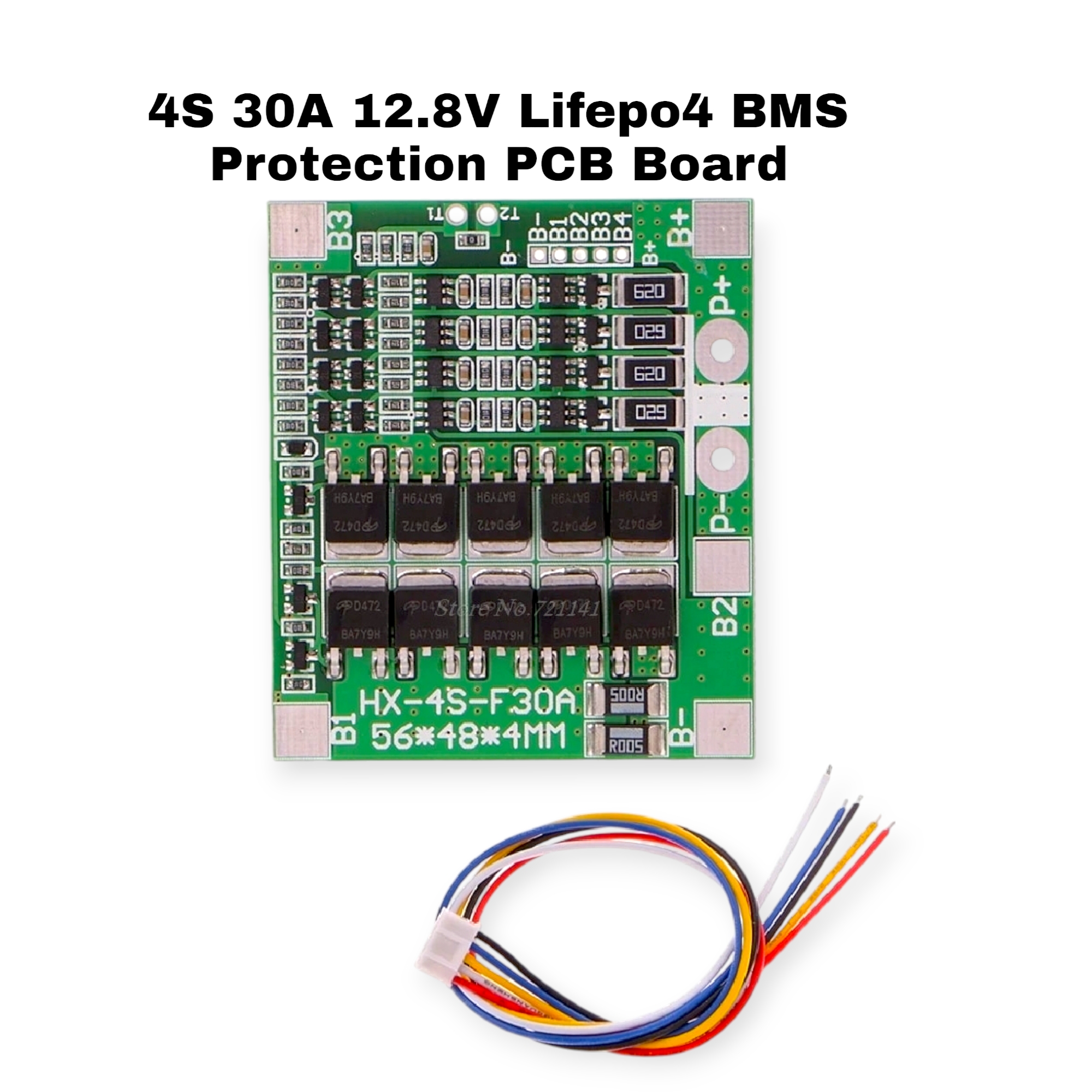

4S 30A 12.8V LiFePO4 BMS Protection PCB Board
Specification:Battery Type: LiFePO4 (Lithium Iron Phosphate)Series: 4S (4 Cells in Series)Nominal Voltage: 12.8VFull Charge Voltage: 14.6VContinuous Discharge Current: 30ACharge Current: Up to 20AOvercharge Protection: YesOver-discharge Protection: YesShort Circuit Protection: YesBalance Function: Yes (Passive/Active depending on version)Board Size: Approx. 65mm x 45mm x 5mmWeight: Approx. 25gDescription: This 4S 30A LiFePO4 BMS (Battery Management System) is designed to safely charge, discharge, and balance 4-cell lithium iron phosphate battery packs. It provides full protection including overcharge, over-discharge, over-current, and short-circuit protection. Perfect for electric vehicles, solar storage, and DIY battery systems.Application:12V LiFePO4 battery packsSolar energy storage systemsElectric bikes/scootersBackup UPS power unitsCustom DIY LiFePO4 battery projects
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification:
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Series: 4S (4 Cells in Series)
- Nominal Voltage: 12.8V
- Full Charge Voltage: 14.6V
- Continuous Discharge Current: 30A
- Charge Current: Up to 20A
- Overcharge Protection: Yes
- Over-discharge Protection: Yes
- Short Circuit Protection: Yes
- Balance Function: Yes (Passive/Active depending on version)
- Board Size: Approx. 65mm x 45mm x 5mm
- Weight: Approx. 25g
Description:
This 4S 30A LiFePO4 BMS (Battery Management System) is designed to safely charge, discharge, and balance 4-cell lithium iron phosphate battery packs. It provides full protection including overcharge, over-discharge, over-current, and short-circuit protection. Perfect for electric vehicles, solar storage, and DIY battery systems.
Application:
- 12V LiFePO4 battery packs
- Solar energy storage systems
- Electric bikes/scooters
- Backup UPS power units
- Custom DIY LiFePO4 battery projects
4S 30A 12.8V LiFePO4 BMS Protection PCB Board
Out of stock230 BDT300 BDTSave 70 BDT
Total sold : 53
No more items remaining!
Specification:
- Battery Type: LiFePO4 (Lithium Iron Phosphate)
- Series: 4S (4 Cells in Series)
- Nominal Voltage: 12.8V
- Full Charge Voltage: 14.6V
- Continuous Discharge Current: 30A
- Charge Current: Up to 20A
- Overcharge Protection: Yes
- Over-discharge Protection: Yes
- Short Circuit Protection: Yes
- Balance Function: Yes (Passive/Active depending on version)
- Board Size: Approx. 65mm x 45mm x 5mm
- Weight: Approx. 25g
Description:
This 4S 30A LiFePO4 BMS (Battery Management System) is designed to safely charge, discharge, and balance 4-cell lithium iron phosphate battery packs. It provides full protection including overcharge, over-discharge, over-current, and short-circuit protection. Perfect for electric vehicles, solar storage, and DIY battery systems.
Application:
- 12V LiFePO4 battery packs
- Solar energy storage systems
- Electric bikes/scooters
- Backup UPS power units
- Custom DIY LiFePO4 battery projects
