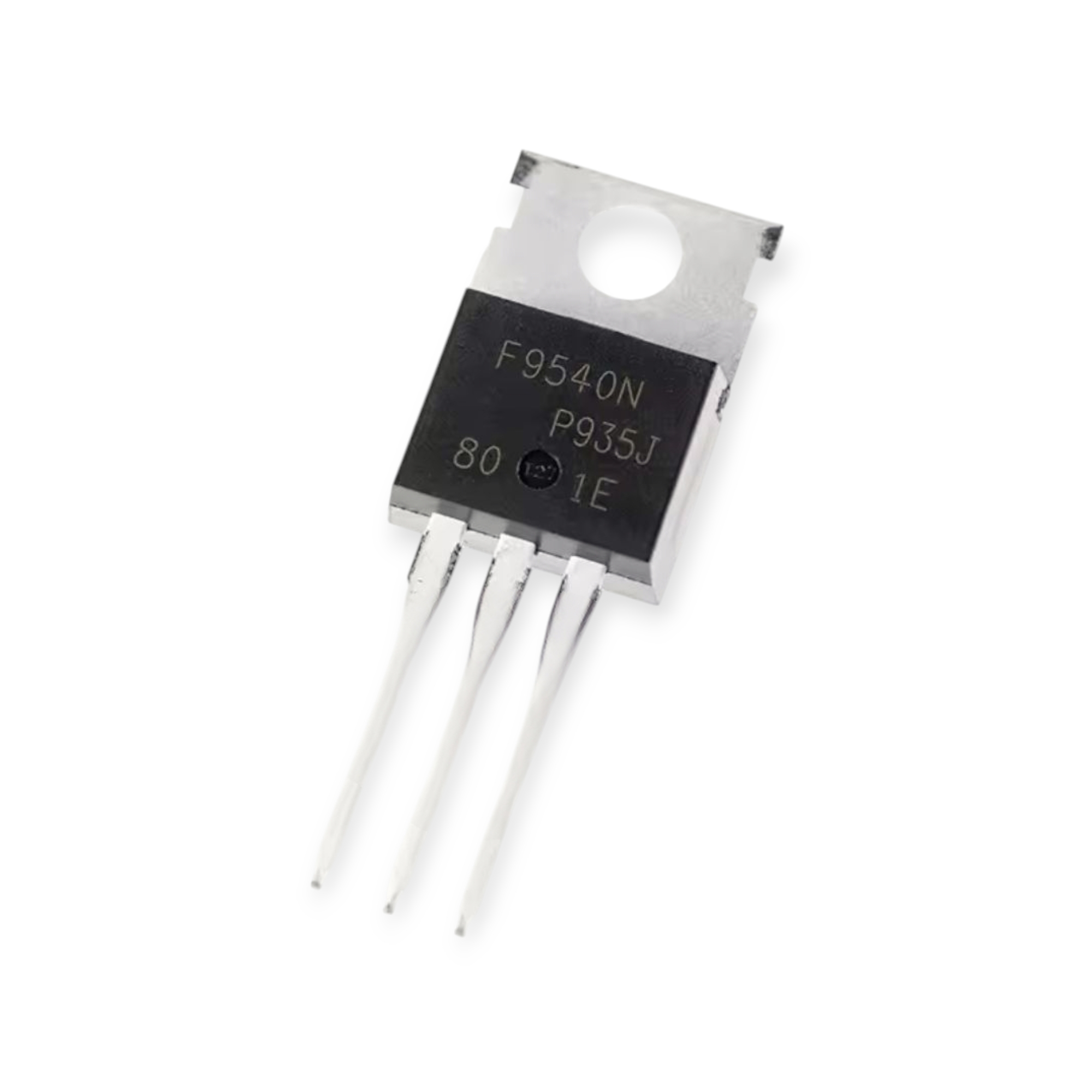

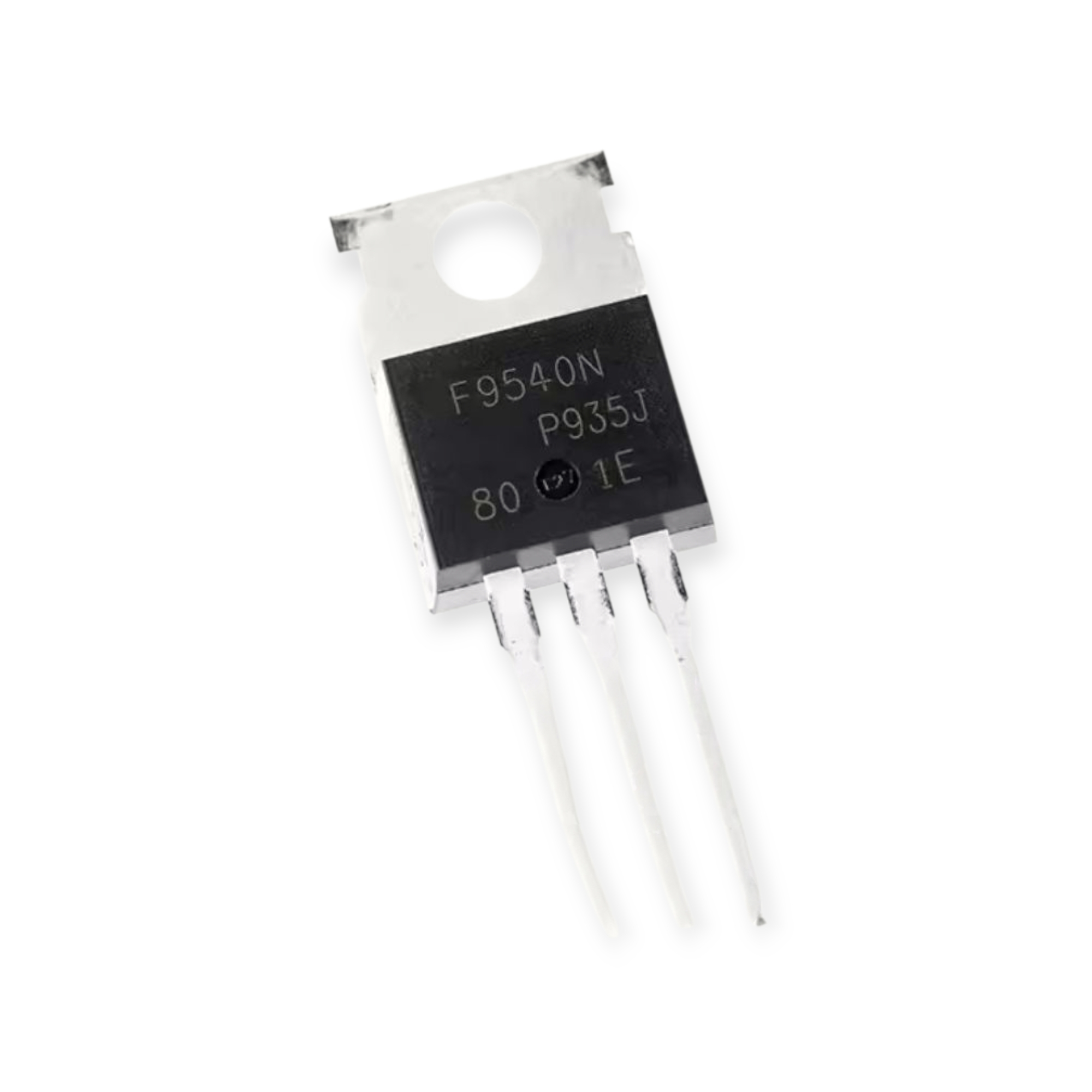

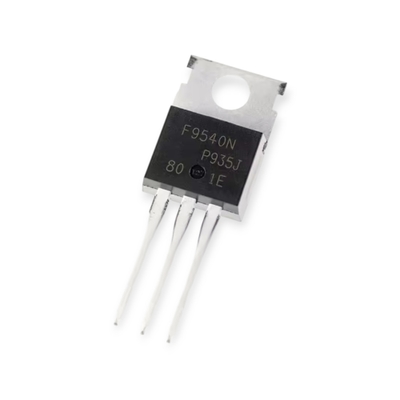

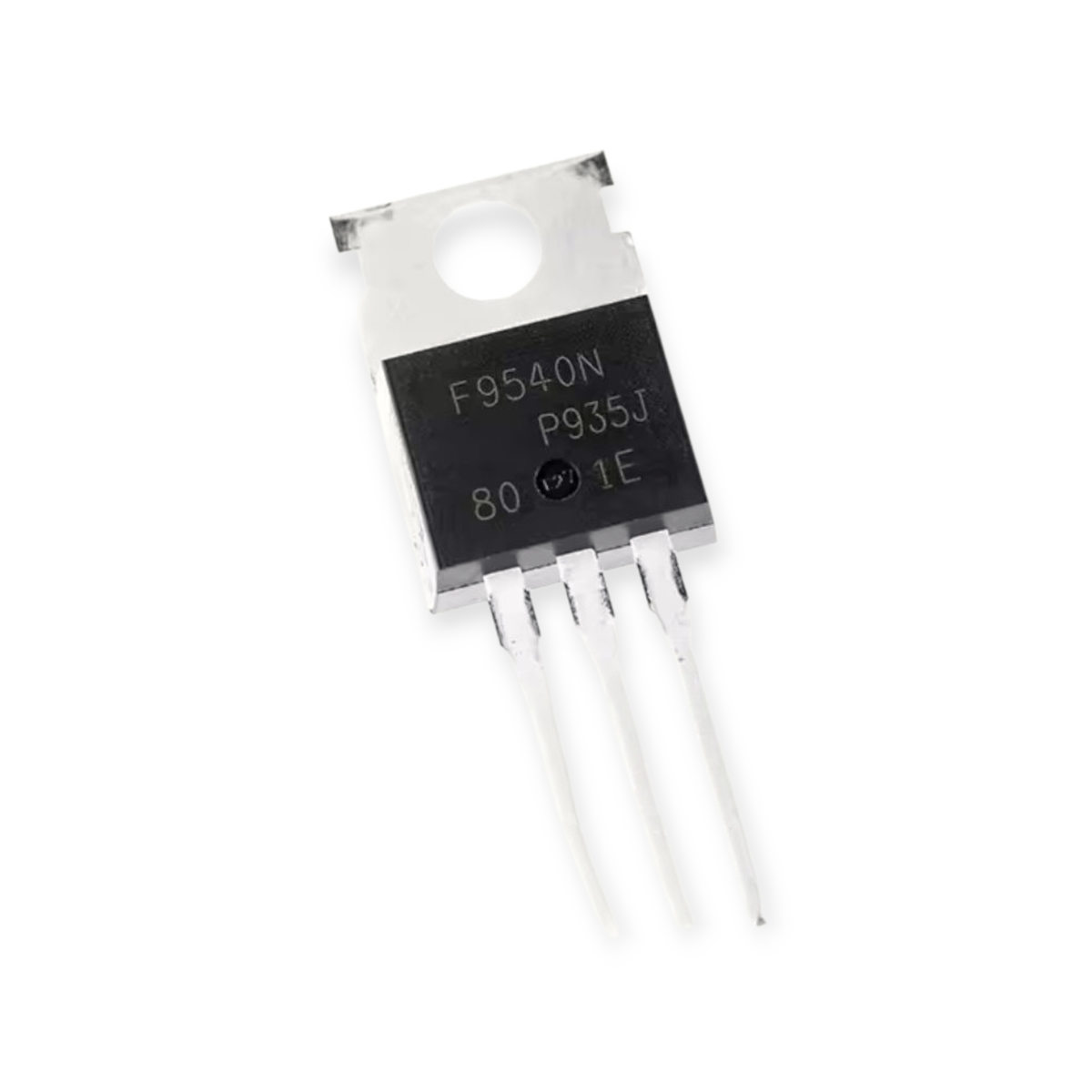

F9540N Power MOSFET – P-Channel 100V 23A TO-220 Package | High-Efficiency Switching Transistor For Inverter, Motor & Power Supply Circuit

75 BDT85 BDTSave 10 BDT

Total sold : 4

Add to cartBuy now

Specification:

1. Model: F9540N
2. Type: P-Channel Power MOSFET
3. Maximum Drain-Source Voltage (Vds): -100V
4. Continuous Drain Current (Id): -23A
5. Power Dissipation: 110W
6. Gate Threshold Voltage: -2V to -4V
7. Package Type: TO-220
8. RDS(on): ≤ 0.117Ω (at Vgs = -10V)
9. Switching Speed: High-speed switching performance
10. Application: Power supply, inverter, motor control, battery protection
11. Weight: Approx. 2.2g

Description:

The F9540N is a high-performance P-Channel Power MOSFET with excellent switching capability, suitable for use in power circuits. With a maximum drain current of 23A and 100V Vds, it is ideal for inverter circuits, motor drivers, battery protections, and high-efficiency power supplies. Its TO-220 package ensures easy heat dissipation and convenient mounting.

Application:

1. Inverter circuit for solar or UPS systems
2. DC motor control applications
3. Battery protection and BMS systems
4. High-efficiency power supply switching
