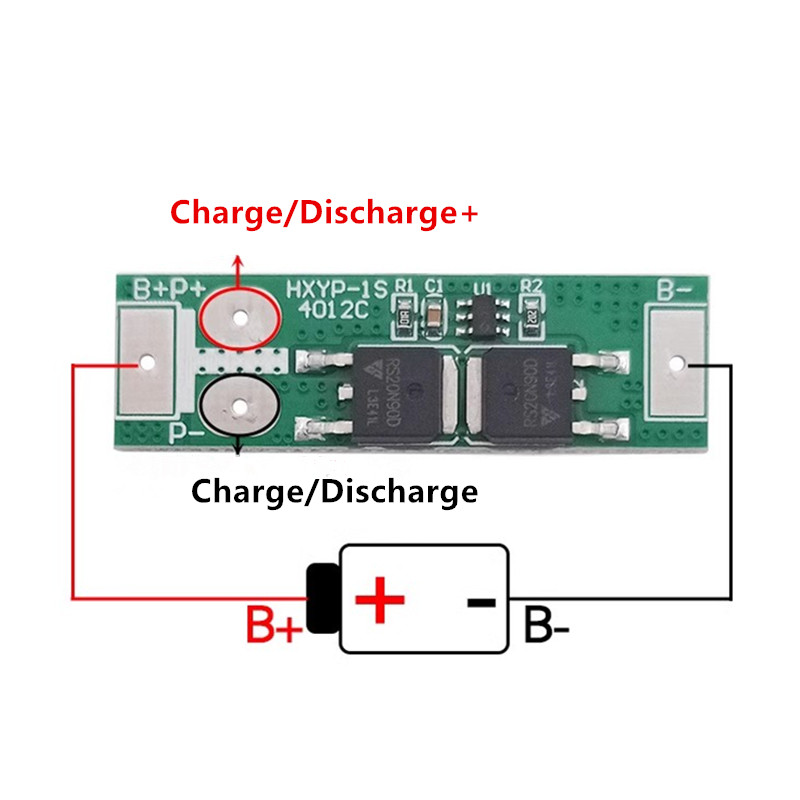

1S 12A 3.7V Li-ion BMS Protection Board | HXYP-1S-4012C Lithium Battery Charging & Discharge Protection Module
Specification:Model: HXYP-1S-4012CBattery Type: 1S 3.7V Li-ion / Li-Polymer CellNominal Voltage: 3.7VCharge Voltage: 4.2V ± 0.05VContinuous Discharge Current: 12AContinuous Charge Current: 12APeak Discharge Current: 20AOvercharge Protection Voltage: 4.28V ± 0.05VOverdischarge Protection Voltage: 2.5V ± 0.075VShort Circuit Protection: Yes (Auto Recovery)Static Current: <30µADimensions: 45mm × 12mm × 3mm (Approx.)Weight: Approx. 3g---Description:The HXYP-1S-4012C 1S 12A BMS Board ensures safe and efficient charging and discharging for single-cell 3.7V Li-ion or Li-Polymer batteries. It features automatic protection against overcharge, overdischarge, and short circuits, helping extend battery lifespan and maintain stability. Compact and powerful, this module is ideal for power banks, LED lights, UPS, and small DIY electronics projects.---Application:Single-cell 3.7V Li-ion / Li-polymer batteriesDIY power banks and solar battery packsLED lighting and flashlight circuitsPortable UPS and router backup projectsBattery-operated IoT and robotics modules
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification:
Model: HXYP-1S-4012C
Battery Type: 1S 3.7V Li-ion / Li-Polymer Cell
Nominal Voltage: 3.7V
Charge Voltage: 4.2V ± 0.05V
Continuous Discharge Current: 12A
Continuous Charge Current: 12A
Peak Discharge Current: 20A
Overcharge Protection Voltage: 4.28V ± 0.05V
Overdischarge Protection Voltage: 2.5V ± 0.075V
Short Circuit Protection: Yes (Auto Recovery)
Static Current: <30µA
Dimensions: 45mm × 12mm × 3mm (Approx.)
Weight: Approx. 3g
---
Description:
The HXYP-1S-4012C 1S 12A BMS Board ensures safe and efficient charging and discharging for single-cell 3.7V Li-ion or Li-Polymer batteries. It features automatic protection against overcharge, overdischarge, and short circuits, helping extend battery lifespan and maintain stability. Compact and powerful, this module is ideal for power banks, LED lights, UPS, and small DIY electronics projects.
---
Application:
Single-cell 3.7V Li-ion / Li-polymer batteries
DIY power banks and solar battery packs
LED lighting and flashlight circuits
Portable UPS and router backup projects
Battery-operated IoT and robotics modules
