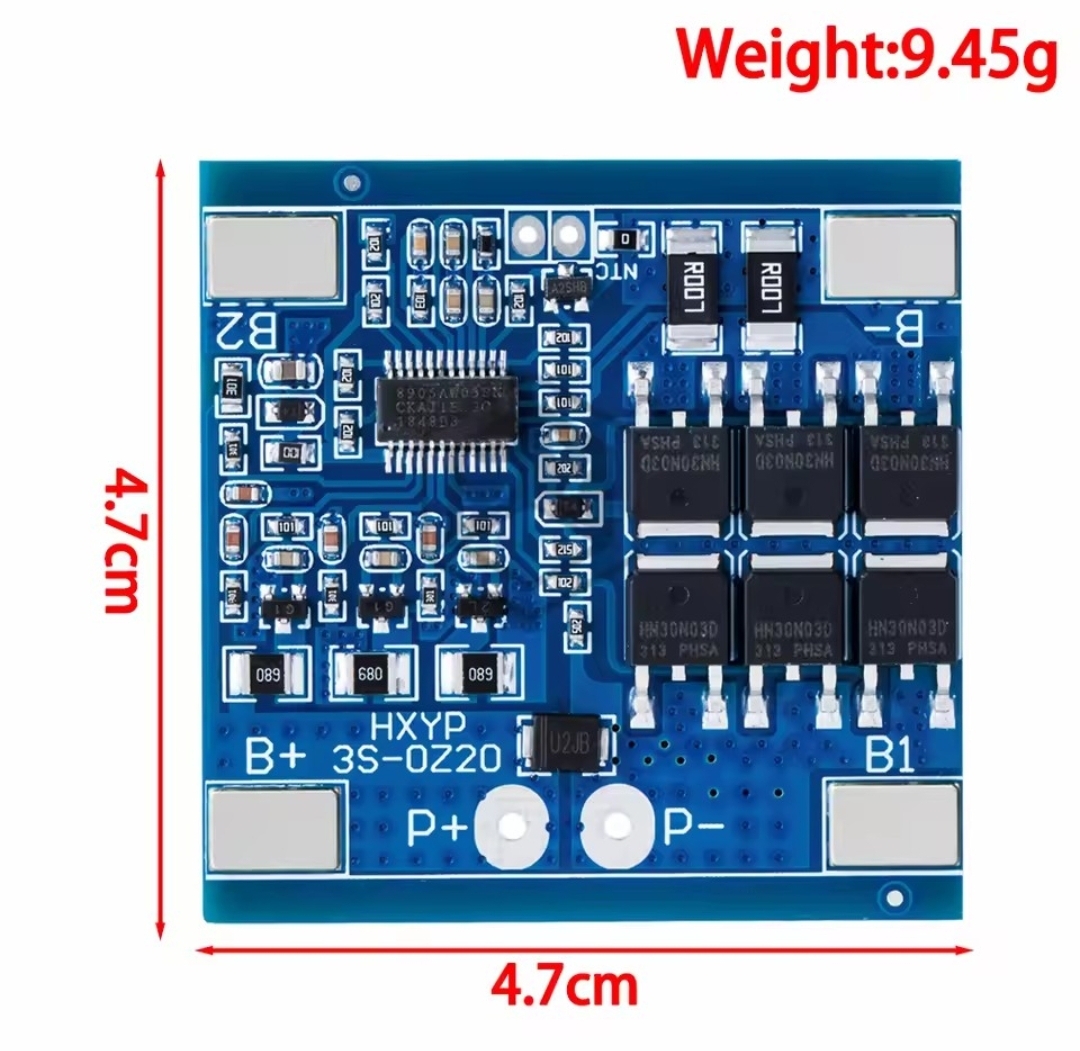

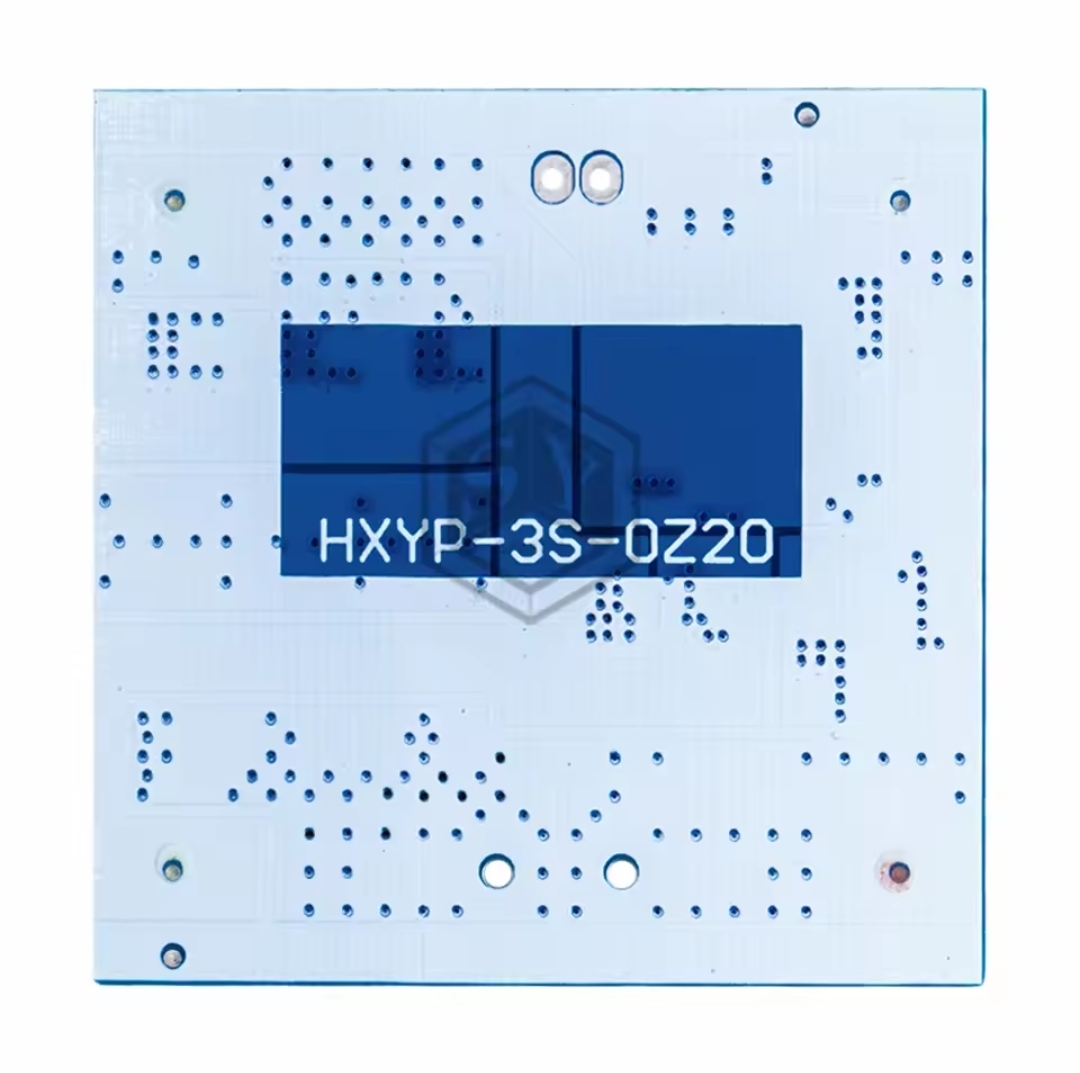

3S 12.6V Li-ion BMS 20A with Balance and Temperature Control | HXYP-3S-OZ20 Protection Board
SpecificationModel: HXYP-3S-OZ20Battery Type: 3S Li-ion / Li-polymer (10.8V–11.1V nominal, 12.6V max)Maximum Charging Current: 15AContinuous Discharge Current: 20APeak Instant Current: 25AOvercharge Protection Voltage: 4.225V ± 0.025V per cellOverdischarge Protection Voltage: 2.7V ± 0.5V per cellBalance Current: 56mABalance Function: YesTemperature Control: YesShort Circuit Protection: Auto recoveryCharging Voltage: 12.6VDimensions: 48 × 48 × 3.6 mmWeight: Approx. 12g---DescriptionThe HXYP-3S-OZ20 20A BMS is a 3S 12.6V Li-ion battery protection board with built-in balancing and temperature control. It ensures safe charging, stable discharging, and protects against overcharge, overdischarge, overcurrent, and short circuit. The 56mA balance system enhances battery lifespan and performance, making it ideal for medium-power lithium battery projects.---Application3S 18650 and 21700 Li-ion battery packsDIY power banksPortable UPS systemsLED lighting and power toolsRC projects and robotics
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification
Model: HXYP-3S-OZ20
Battery Type: 3S Li-ion / Li-polymer (10.8V–11.1V nominal, 12.6V max)
Maximum Charging Current: 15A
Continuous Discharge Current: 20A
Peak Instant Current: 25A
Overcharge Protection Voltage: 4.225V ± 0.025V per cell
Overdischarge Protection Voltage: 2.7V ± 0.5V per cell
Balance Current: 56mA
Balance Function: Yes
Temperature Control: Yes
Short Circuit Protection: Auto recovery
Charging Voltage: 12.6V
Dimensions: 48 × 48 × 3.6 mm
Weight: Approx. 12g
---
Description
The HXYP-3S-OZ20 20A BMS is a 3S 12.6V Li-ion battery protection board with built-in balancing and temperature control. It ensures safe charging, stable discharging, and protects against overcharge, overdischarge, overcurrent, and short circuit. The 56mA balance system enhances battery lifespan and performance, making it ideal for medium-power lithium battery projects.
---
Application
3S 18650 and 21700 Li-ion battery packs
DIY power banks
Portable UPS systems
LED lighting and power tools
RC projects and robotics
Model: HXYP-3S-OZ20
Battery Type: 3S Li-ion / Li-polymer (10.8V–11.1V nominal, 12.6V max)
Maximum Charging Current: 15A
Continuous Discharge Current: 20A
Peak Instant Current: 25A
Overcharge Protection Voltage: 4.225V ± 0.025V per cell
Overdischarge Protection Voltage: 2.7V ± 0.5V per cell
Balance Current: 56mA
Balance Function: Yes
Temperature Control: Yes
Short Circuit Protection: Auto recovery
Charging Voltage: 12.6V
Dimensions: 48 × 48 × 3.6 mm
Weight: Approx. 12g
---
Description
The HXYP-3S-OZ20 20A BMS is a 3S 12.6V Li-ion battery protection board with built-in balancing and temperature control. It ensures safe charging, stable discharging, and protects against overcharge, overdischarge, overcurrent, and short circuit. The 56mA balance system enhances battery lifespan and performance, making it ideal for medium-power lithium battery projects.
---
Application
3S 18650 and 21700 Li-ion battery packs
DIY power banks
Portable UPS systems
LED lighting and power tools
RC projects and robotics
3S 12.6V Li-Ion BMS 20A With Balance And Temperature Control | HXYP-3S-OZ20 Protection Board
240 BDT280 BDTSave 40 BDT
Total sold : 29
Specification
Model: HXYP-3S-OZ20
Battery Type: 3S Li-ion / Li-polymer (10.8V–11.1V nominal, 12.6V max)
Maximum Charging Current: 15A
Continuous Discharge Current: 20A
Peak Instant Current: 25A
Overcharge Protection Voltage: 4.225V ± 0.025V per cell
Overdischarge Protection Voltage: 2.7V ± 0.5V per cell
Balance Current: 56mA
Balance Function: Yes
Temperature Control: Yes
Short Circuit Protection: Auto recovery
Charging Voltage: 12.6V
Dimensions: 48 × 48 × 3.6 mm
Weight: Approx. 12g
---
Description
The HXYP-3S-OZ20 20A BMS is a 3S 12.6V Li-ion battery protection board with built-in balancing and temperature control. It ensures safe charging, stable discharging, and protects against overcharge, overdischarge, overcurrent, and short circuit. The 56mA balance system enhances battery lifespan and performance, making it ideal for medium-power lithium battery projects.
---
Application
3S 18650 and 21700 Li-ion battery packs
DIY power banks
Portable UPS systems
LED lighting and power tools
RC projects and robotics
Model: HXYP-3S-OZ20
Battery Type: 3S Li-ion / Li-polymer (10.8V–11.1V nominal, 12.6V max)
Maximum Charging Current: 15A
Continuous Discharge Current: 20A
Peak Instant Current: 25A
Overcharge Protection Voltage: 4.225V ± 0.025V per cell
Overdischarge Protection Voltage: 2.7V ± 0.5V per cell
Balance Current: 56mA
Balance Function: Yes
Temperature Control: Yes
Short Circuit Protection: Auto recovery
Charging Voltage: 12.6V
Dimensions: 48 × 48 × 3.6 mm
Weight: Approx. 12g
---
Description
The HXYP-3S-OZ20 20A BMS is a 3S 12.6V Li-ion battery protection board with built-in balancing and temperature control. It ensures safe charging, stable discharging, and protects against overcharge, overdischarge, overcurrent, and short circuit. The 56mA balance system enhances battery lifespan and performance, making it ideal for medium-power lithium battery projects.
---
Application
3S 18650 and 21700 Li-ion battery packs
DIY power banks
Portable UPS systems
LED lighting and power tools
RC projects and robotics
