Specification

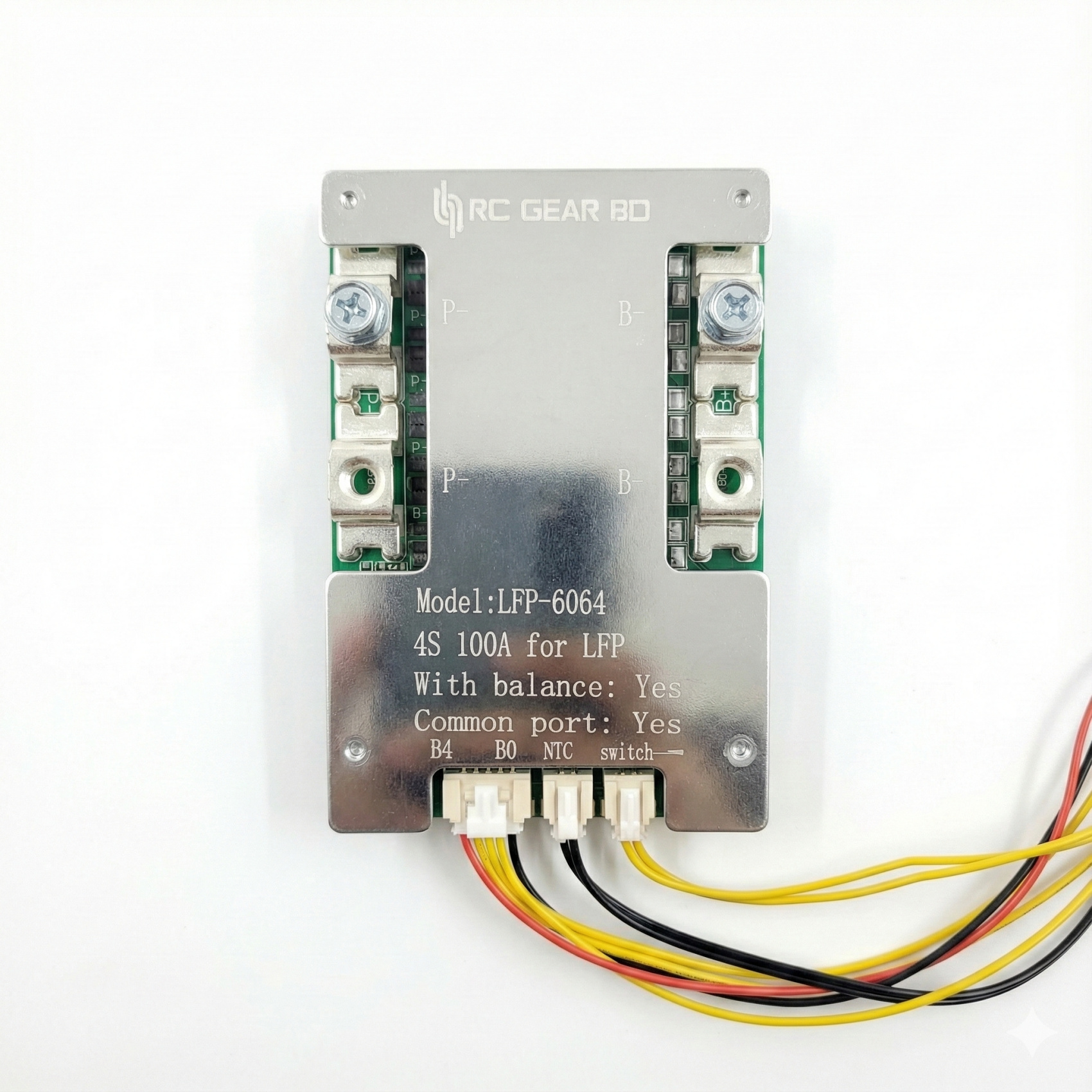

• Model: LFP-6064
• Supported Cells: 4S LiFePO4 (3.2V × 4 = 12.8V Pack)
• Discharge Current: 100A
• Charge Current: 50A
• Balance Function: Yes
• Common Port: Yes
• Terminals: B+, B−, P+, P−
• Additional Ports: B4, B0, NTC, Switch
• Protection System: Overcharge, Over-discharge, Over-current, Short-circuit
• Cooling Plate: Full Aluminium Heat Sink
• Application Voltage: 12.8V LiFePO4 Battery Pack
• Build Quality: Heavy-Duty High-Current MOSFET + Thick Copper Tracks
• Ideal For: High-Load Bike Self-Start, Solar Backup, Power Station
• Weight: Lightweight Aluminium Plate
---
Description
The LFP-6064 4S 100A BMS is designed specifically for 12.8V LiFePO4 high-current battery packs.
It supports 100A continuous discharge, making it perfect for heavy power loads such as bike self-start, IPS backup, e-bike packs, and high-drain DC equipment.
This BMS includes active balancing, voltage protection, short-circuit protection, and temperature sensing input (NTC).
The thick aluminium heat-sink plate ensures proper cooling and improves long-term durability.
It is ideal for DIY battery builders looking for premium and stable performance.
---
Application
• Bike Self-Start LiFePO4 Battery
• Solar Power Backup System
• Portable Power Station
• High-Current 12V DC Machine Battery
• DIY LiFePO4 UPS/IPS Pack
