Specification
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cell Type: 3.2V 15Ah 32140 LiFePO4 Cell
• Total Cell Count: 12 pcs
• Nominal Voltage: 38V
• Capacity: 15Ah
• Energy: 570Wh
• Mileage: 40-45km

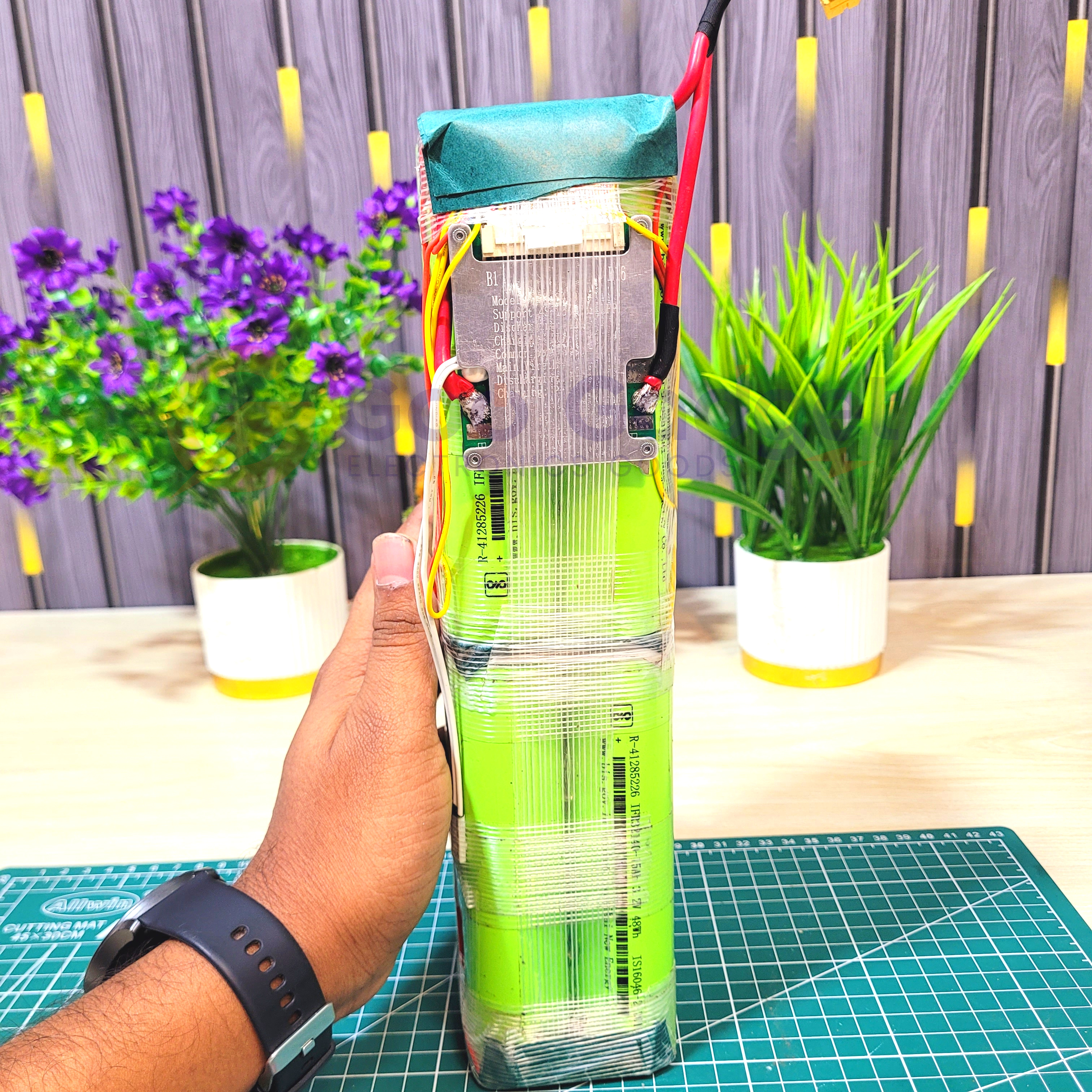

• BMS Type: 4S–16S Universal BMS
• BMS Current Rating: 40A
• BMS Features: Temperature sensor support
• Nickel Strip: 0.2 × 15 mm pure nickel strip

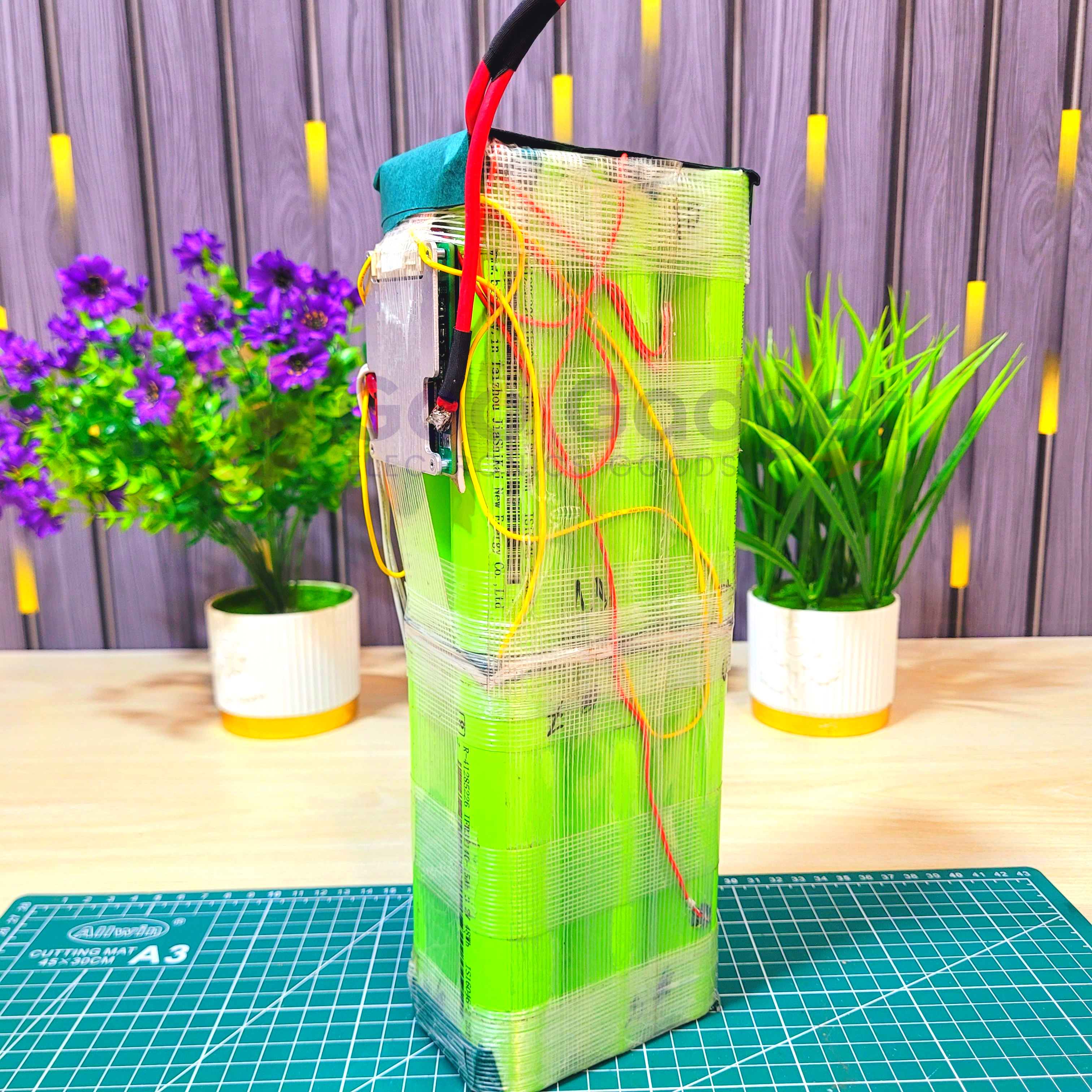

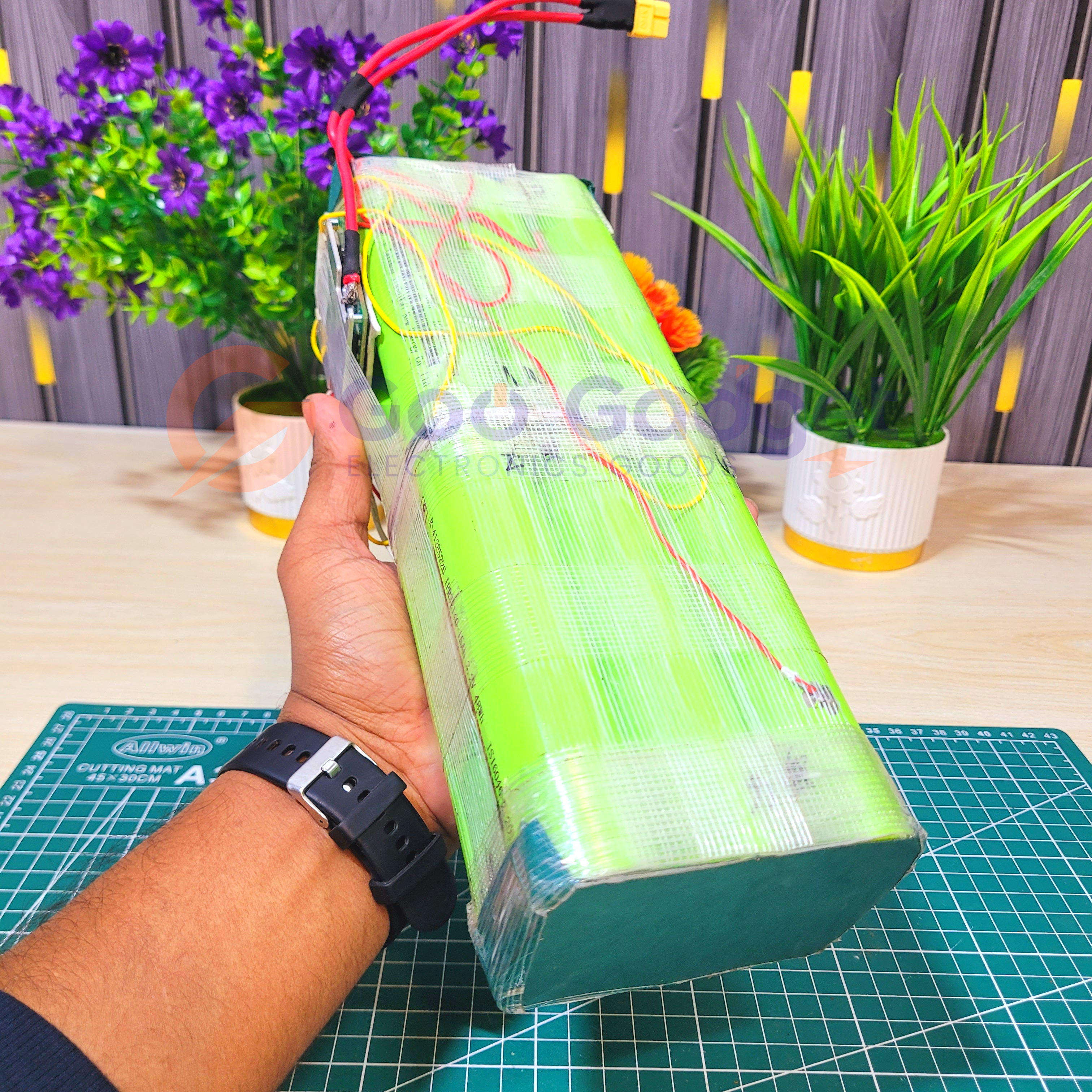

• Insulation & Wrapping: Fiber tape battery wrapping

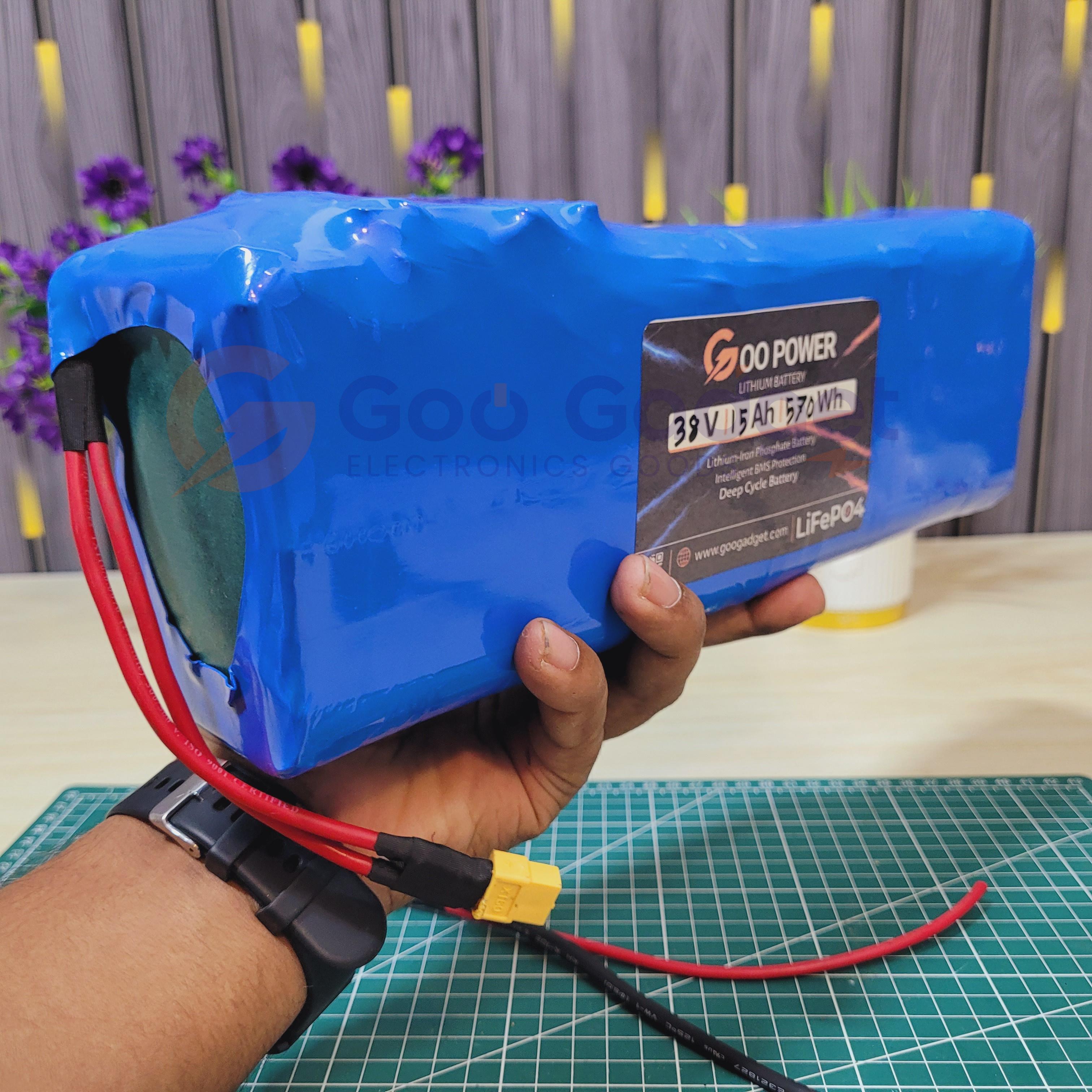

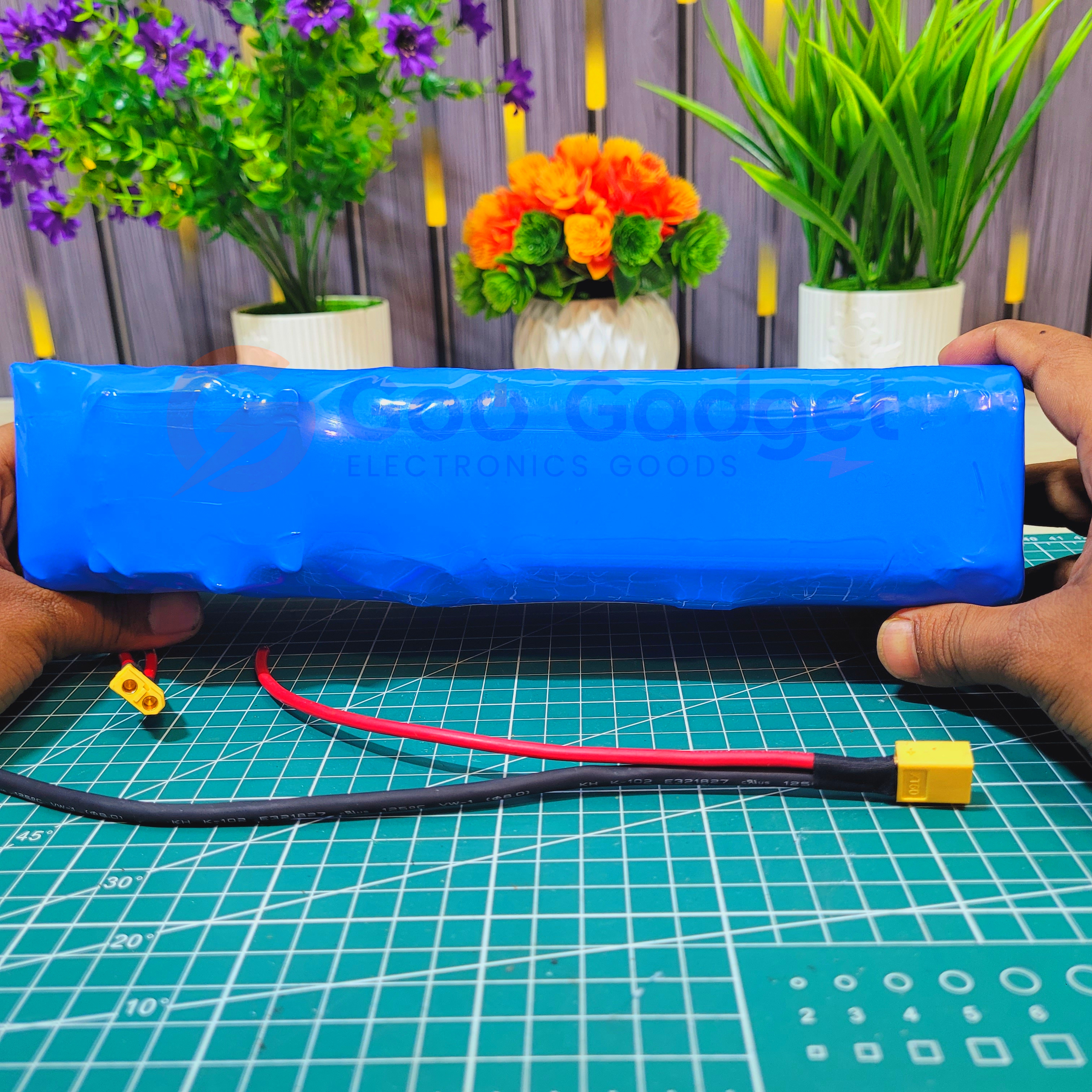

• Outer Cover: 200mm heat shrink tube
• Output Connector: XT60 connector
• Output Cable: 3 RM copper flexible cable

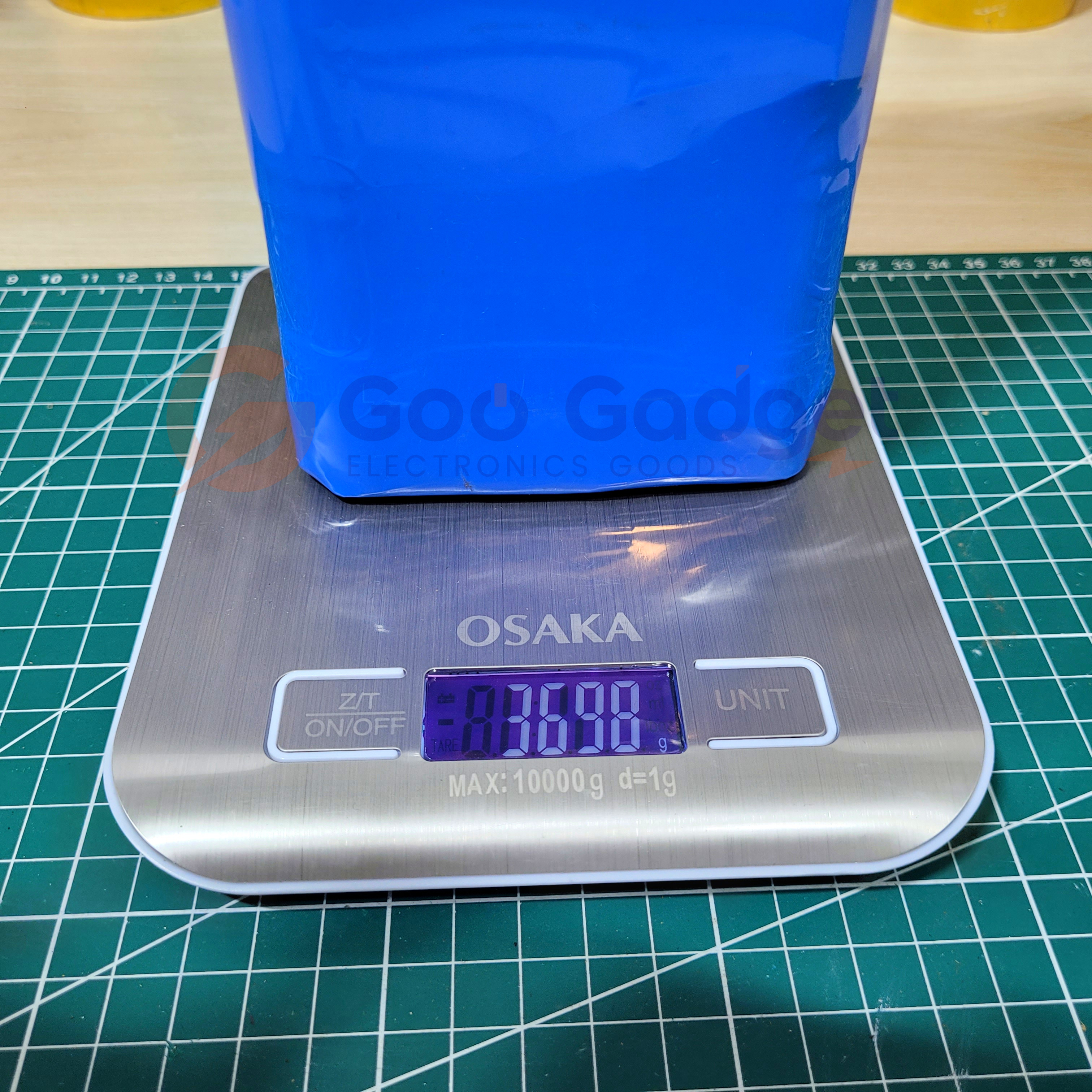

• Total Weight: 3700 gm

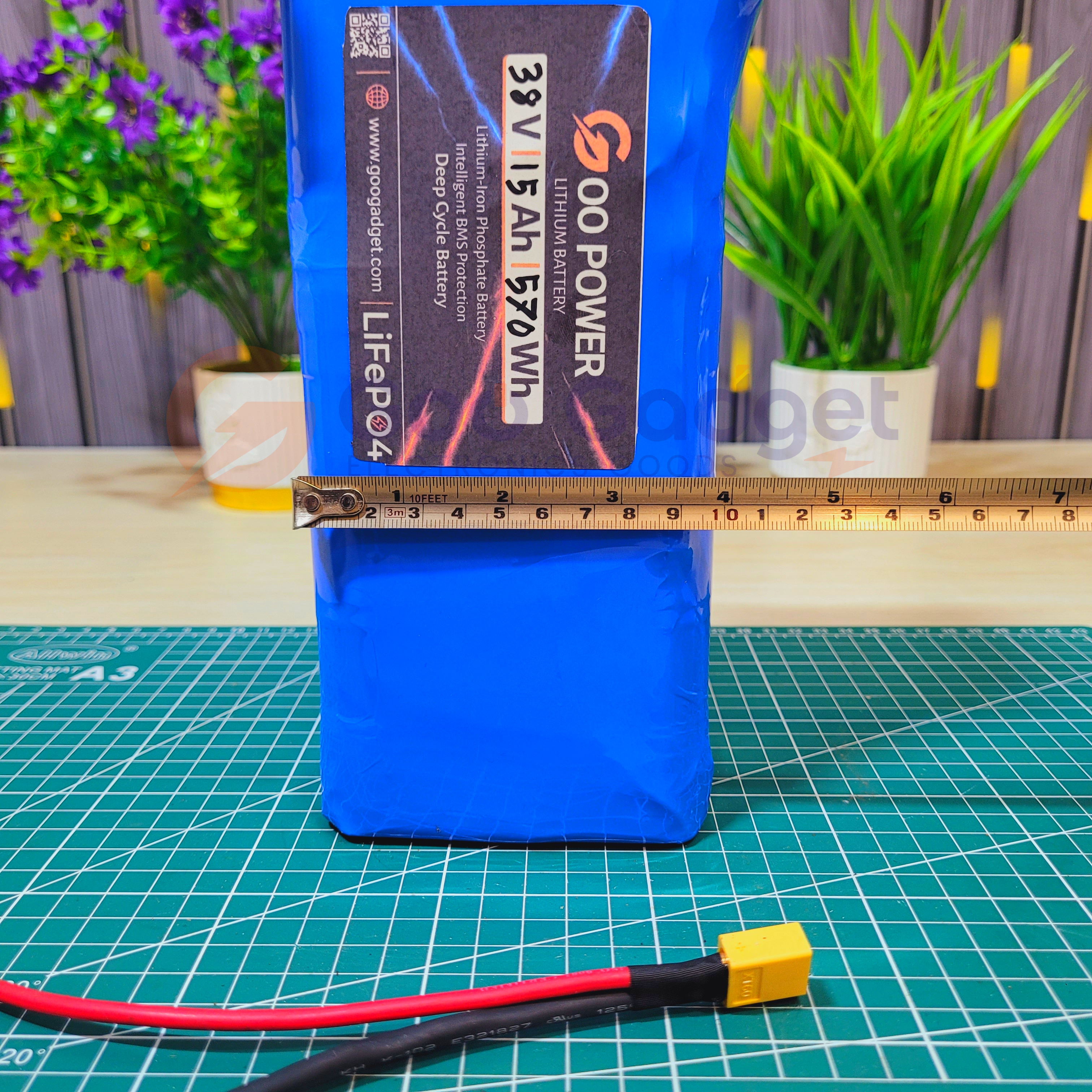

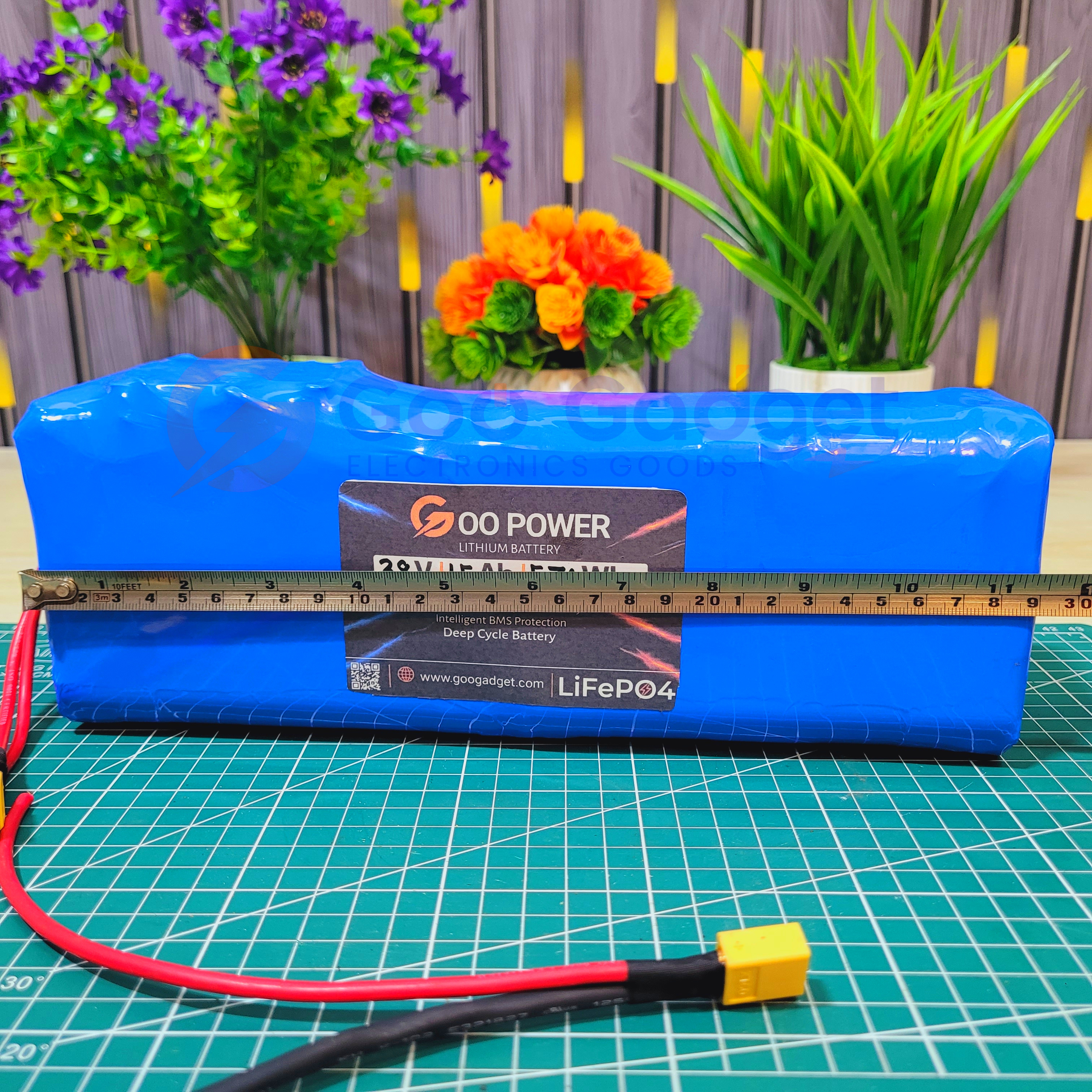

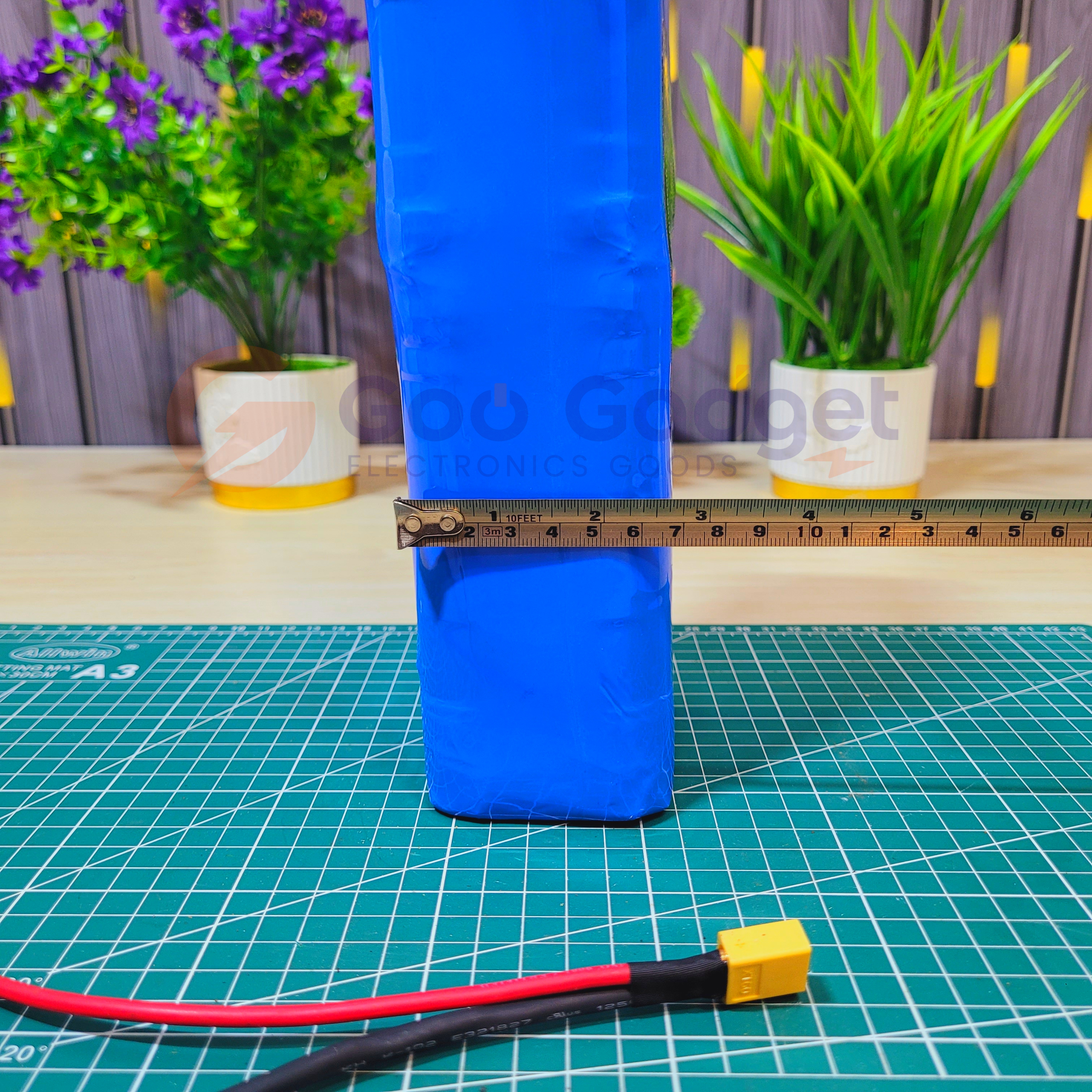

• Battery Size: 4 × 2.5 × 12 inch
Description

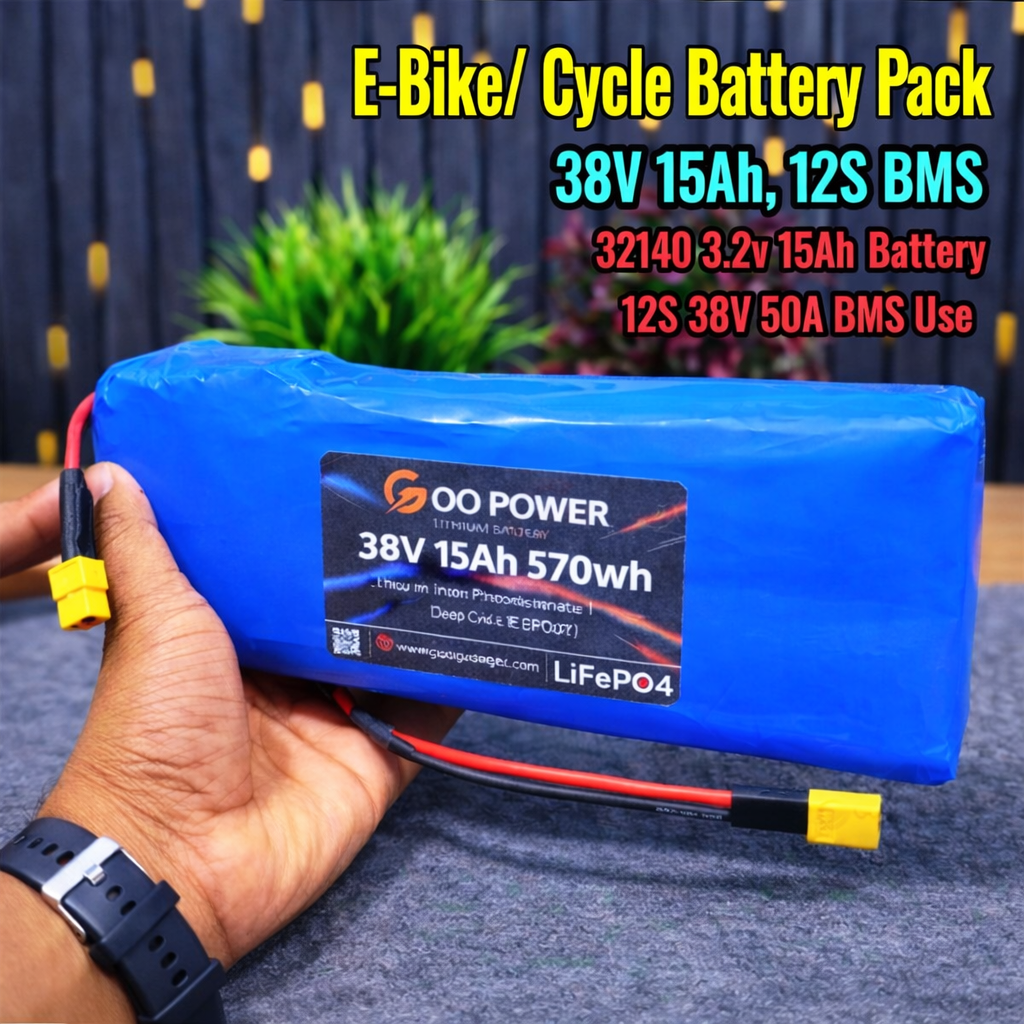

This 38V 15Ah LiFePO4 battery pack is designed for electric bike and cycle applications where safety, durability, and stable performance are essential.
The pack is built using 12 pieces of 3.2V 15Ah 32140 LiFePO4 cells, combined with a 4S–16S universal 40A BMS equipped with a temperature sensor for enhanced protection.
High-quality 0.2×15mm nickel strips ensure low resistance connections, while fiber tape insulation and 200mm heat shrink wrapping provide strong mechanical protection.
An XT60 connector with 3 RM copper flexible cable ensures reliable power delivery.
This battery pack offers long cycle life, stable voltage, and deep cycle performance suitable for daily electric mobility use.
Application
• Electric Bike (E-Bike)
• Electric Cycle
• Light Electric Scooter
• DIY LiFePO4 Battery Projects
• Custom 36V–38V Electric Mobility Systems
