Specification

• Supported Battery Type: Li-ion / LiFePO4

• Series Support: 8S to 24S Configurable

• Continuous Discharge Current: 60A / 100A (Model Based)

• Active Balancing Current: Up to 1.2A

• Bluetooth: Built-in, Mobile App Monitoring

• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit

• Temperature Protection: NTC Sensor Supported

• Communication: Bluetooth App (Android / iOS)

• Balance Type: Smart Active Energy Transfer

• Application Voltage Range: Suitable for 24V–72V Battery Packs

Description

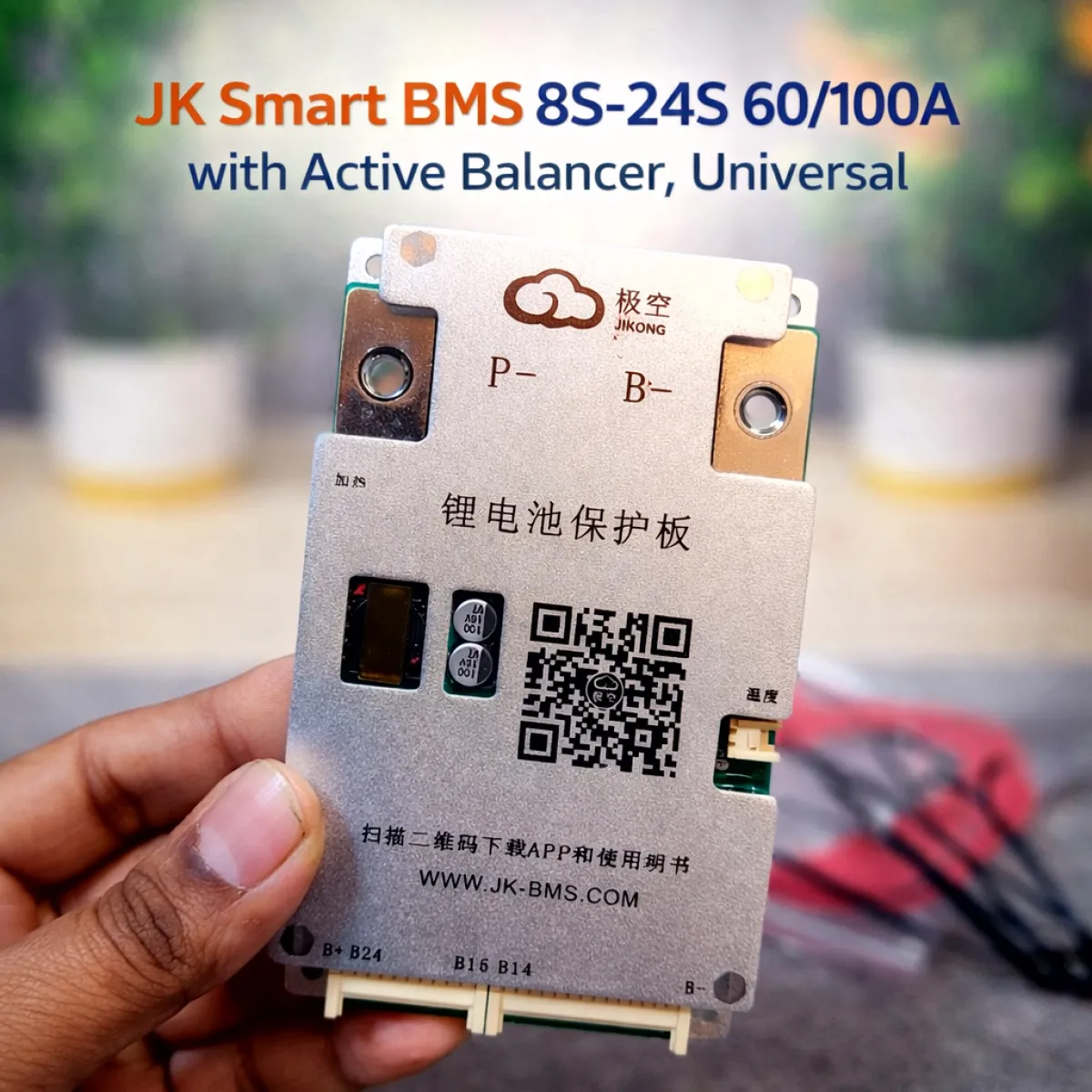

The JK Smart Active Balance BMS is a high-performance battery management system designed for lithium and LiFePO4 battery packs from 8S to 24S configurations. It features built-in active balancing technology that transfers energy between cells to maintain equal voltage, improving battery efficiency and lifespan. With integrated Bluetooth support, users can monitor real-time voltage, current, temperature, and battery health directly from a smartphone app. This BMS ensures stable performance, high safety, and reliable protection for demanding power applications.

Application

• Electric Bike and Electric Scooter Battery Packs

• Solar Energy Storage Systems

• Home UPS and IPS Backup Batteries

• Electric Vehicle and E-Rickshaw Battery Packs

• Custom High-Capacity Lithium Battery Projects

Specification

• Supported Battery Type: Li-ion / LiFePO4

• Series Support: 8S to 24S Configurable

• Continuous Discharge Current: 60A / 100A (Model Based)

• Active Balancing Current: Up to 1.2A

• Bluetooth: Built-in, Mobile App Monitoring

• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit

• Temperature Protection: NTC Sensor Supported

• Communication: Bluetooth App (Android / iOS)

• Balance Type: Smart Active Energy Transfer

• Application Voltage Range: Suitable for 24V–72V Battery Packs

Description

The JK Smart Active Balance BMS is a high-performance battery management system designed for lithium and LiFePO4 battery packs from 8S to 24S configurations. It features built-in active balancing technology that transfers energy between cells to maintain equal voltage, improving battery efficiency and lifespan. With integrated Bluetooth support, users can monitor real-time voltage, current, temperature, and battery health directly from a smartphone app. This BMS ensures stable performance, high safety, and reliable protection for demanding power applications.

Application

• Electric Bike and Electric Scooter Battery Packs

• Solar Energy Storage Systems

• Home UPS and IPS Backup Batteries

• Electric Vehicle and E-Rickshaw Battery Packs

• Custom High-Capacity Lithium Battery Projects
