Specification
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Series Support: 8S (8 Cells in Series)
• Nominal Voltage: 24V System
• Model: HBJ-PT633A
• Continuous Discharge Current: 25A
• Charge/Discharge Port: Common Port
• Balance Function: Built-in Cell Balancing
• Protection Functions:
– Overcharge Protection
– Over-discharge Protection
– Overcurrent Protection
– Short Circuit Protection
– Temperature Protection (NTC Supported)
• Connection: Balance Wire Socket + B+/B- Terminals
• Application Type: 24V LiFePO4 Battery Pack
Description

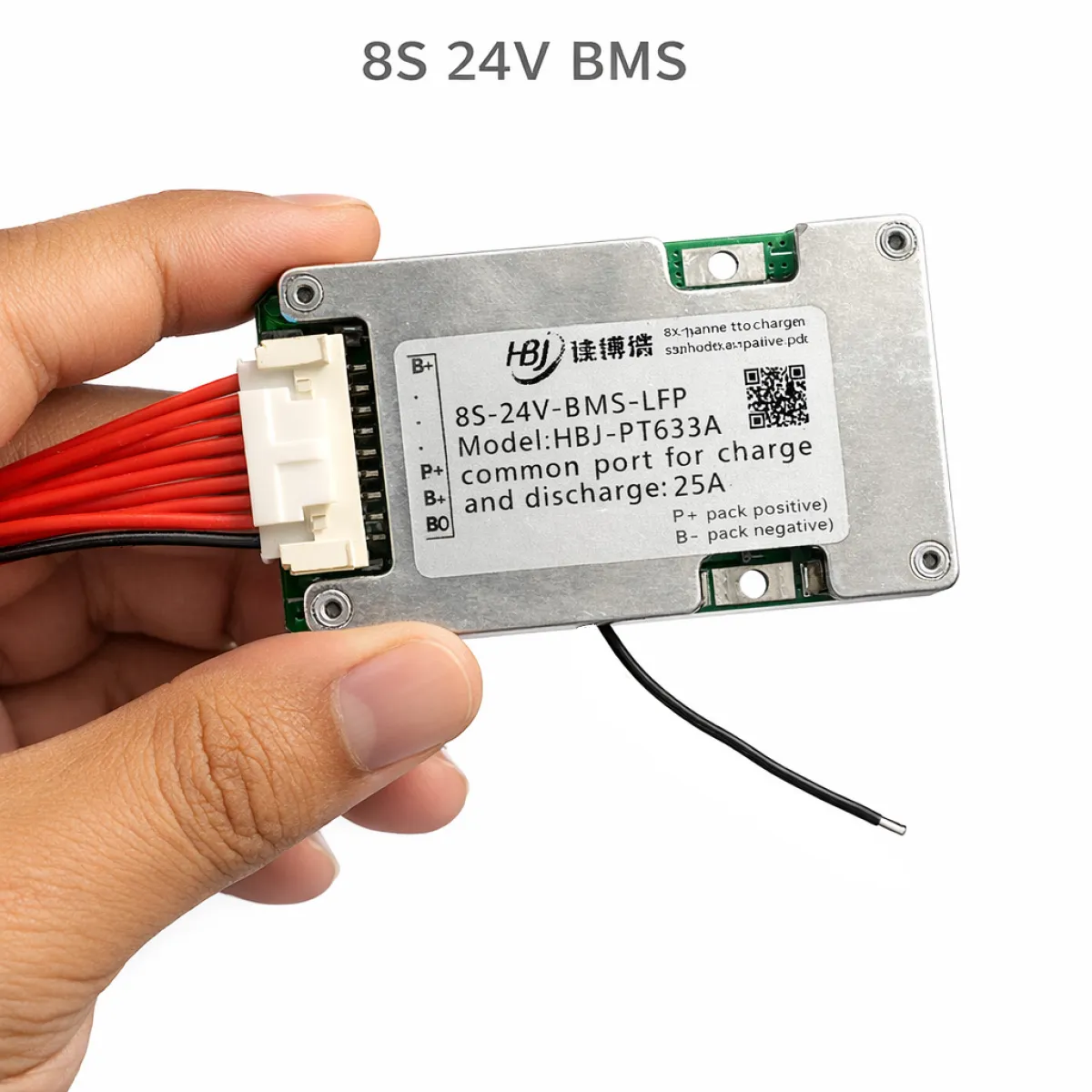

This 8S 24V LiFePO4 BMS is designed to manage and protect 8-cell LiFePO4 battery packs. It supports a 24V system with a continuous 25A charge and discharge current using a common port design.
The BMS ensures safe battery operation by providing multiple protection features including overcharge, over-discharge, overcurrent, and short-circuit protection. It also includes a balancing function to maintain equal voltage across all cells, improving battery lifespan and performance.
The compact design with aluminum heat dissipation plate makes it suitable for inverter systems and medium-power battery applications.
Application
• 24V LiFePO4 Battery Packs
• Solar Energy Storage Systems
• Inverter Battery Systems
• Electric Vehicles (Low Power)
• UPS Backup Systems
• DIY 24V Lithium Battery Projects
