Specification
• Model: XL4015 DC-DC Buck Converter Module
• Input Voltage: DC 5V – 36V
• Output Voltage: DC 1.25V – 32V Adjustable
• Maximum Output Current: 5A (Recommended ≤ 4.5A)
• Maximum Output Power: 75W
• Conversion Efficiency: Up to 96%

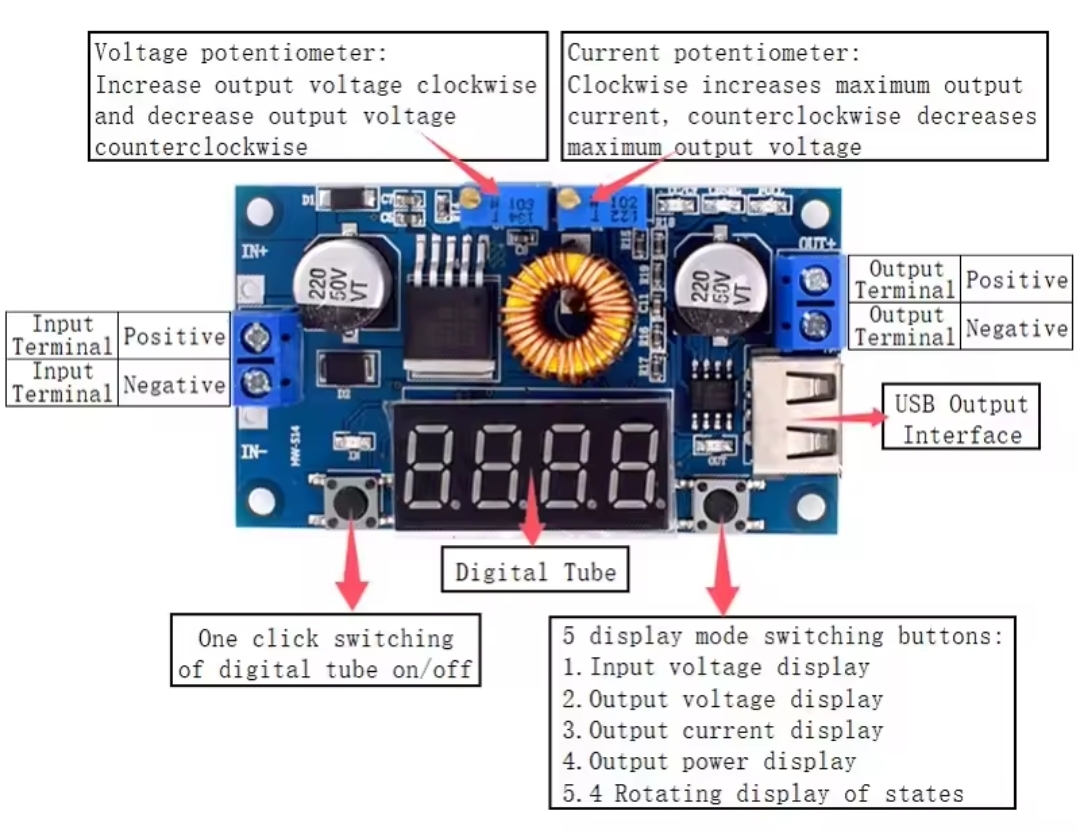

• Display: Digital Voltmeter Display (Input/Output Monitoring)
• Output Interface: Screw Terminal + USB Output Port
• Protection: Short Circuit & Over-Temperature Protection
• Working Temperature: −40°C to +85°C
Description
The XL4015 75W DC-DC Buck Converter Module is a powerful adjustable voltage regulator designed for efficient power conversion. It supports 5V–36V input and provides an adjustable 1.25V–32V output with up to 5A current capability.
This module features a built-in digital voltmeter display that allows easy monitoring of input and output voltage. The onboard USB output port makes it convenient for powering USB devices directly. With high conversion efficiency up to 96%, along with short-circuit and over-temperature protection, it ensures safe and stable operation for various electronics and DIY power supply projects.
Application
• Adjustable Power Supply Projects
• Battery Charging Circuits
• Solar Power Voltage Regulation
• Arduino / DIY Electronics Projects
• USB Device Power Supply
