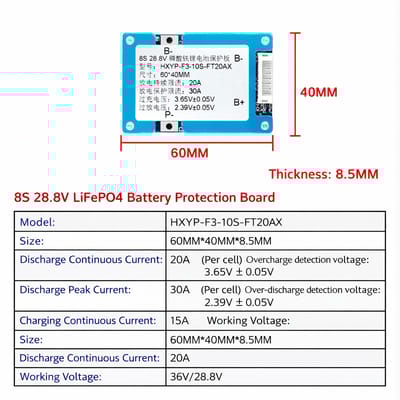

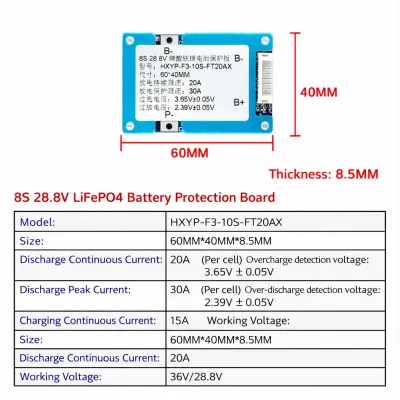

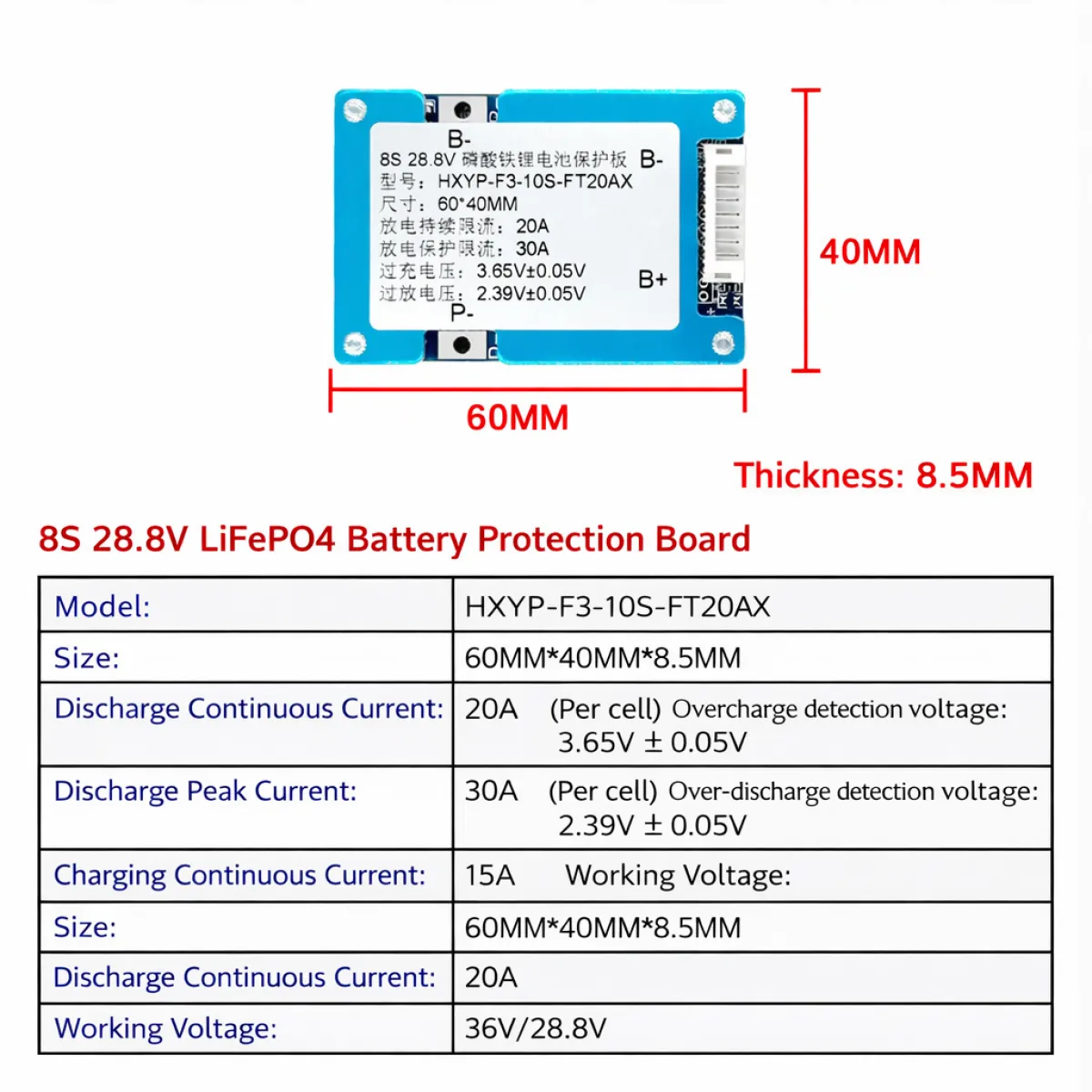

Specification
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Series Configuration: 8S (8 Cells in Series)
• Nominal Voltage: 24V / 28.8V Battery Pack
• Continuous Discharge Current: 20A
• Peak Discharge Current: 30A
• Charging Continuous Current: 15A
• Overcharge Detection Voltage: 3.65V ± 0.05V per Cell
• Over-discharge Detection Voltage: 2.39V ± 0.05V per Cell
• Board Size: 60mm × 40mm × 8.5mm (2.36 × 1.57 × 0.33 inch)
• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit
Description
The 8S 24V LiFePO4 BMS HXYP-F3-10S-FT20AX is a reliable battery protection board designed for 8-cell LiFePO4 battery packs (24V / 28.8V systems). It provides 20A continuous discharge and up to 30A peak current, ensuring safe and stable battery operation.
This BMS monitors each cell to protect the battery from overcharging, over-discharging, overcurrent, and short circuits, which helps extend battery lifespan and improve safety. Its compact size makes it suitable for DIY battery packs, solar energy storage systems, electric equipment, and backup power projects.
Application
• 24V LiFePO4 Battery Pack Projects
• Solar Energy Storage Batteries
• Electric Bike / Scooter Battery Packs
• DIY Lithium Battery Systems
• Portable Power Supply Projects
