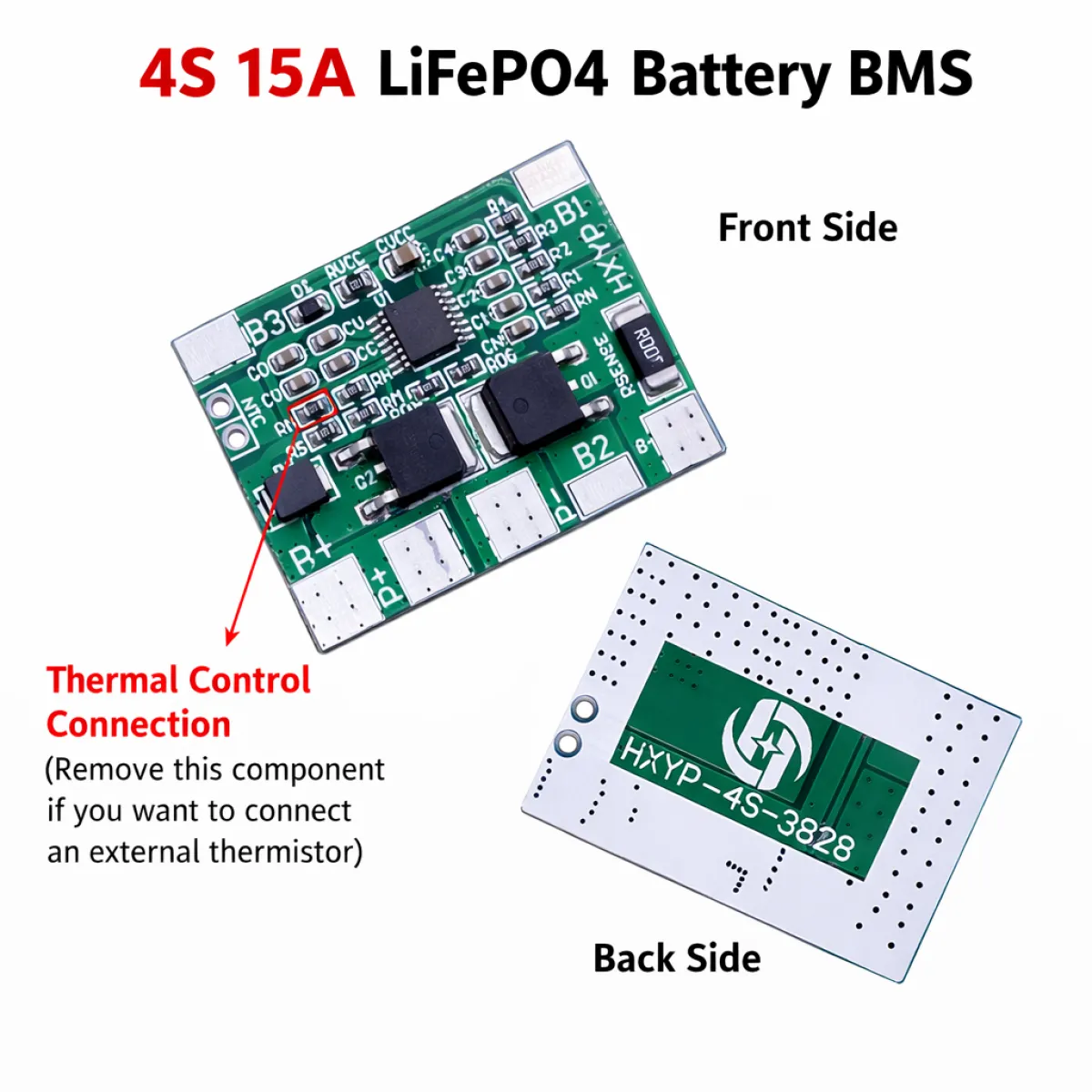

4S 12V 15A LiFePO4 BMS Battery Protection Board HXYP-4S-3828
Specification• Battery Type: LiFePO4 (Lithium Iron Phosphate)• Series Configuration: 4S (4 Cells in Series)• Nominal Voltage: 12V / 12.8V Battery Pack• Continuous Discharge Current: 7A• Maximum Discharge Current: 15A• Continuous Charge Current: 10A• Charge Voltage Limit: 14.6V• Single Cell Overcharge Protection: 3.65V ± 0.025V• Board Size: 38mm × 28mm × 3.6mm (1.50 × 1.10 × 0.14 inch)• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Thermal Control SupportDescriptionThe HXYP-4S-3828 4S 12V LiFePO4 BMS is a compact battery protection board designed for 4-cell LiFePO4 battery packs used in 12V lithium battery systems. It supports 7A continuous discharge current and up to 15A peak current, ensuring stable and safe battery operation.This BMS monitors each individual cell to prevent overcharging, over-discharging, overcurrent, and short circuits, helping extend battery lifespan and improve system safety. The board also supports thermal control connection, allowing an external thermistor to monitor temperature if needed. Its small size makes it ideal for compact DIY battery packs and portable devices.Application• 12V LiFePO4 Battery Packs• Rechargeable Fan Battery Packs• Solar Energy Battery Systems• DIY Lithium Battery Projects• Portable Backup Power Systems
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Series Configuration: 4S (4 Cells in Series)
• Nominal Voltage: 12V / 12.8V Battery Pack
• Continuous Discharge Current: 7A
• Maximum Discharge Current: 15A
• Continuous Charge Current: 10A
• Charge Voltage Limit: 14.6V
• Single Cell Overcharge Protection: 3.65V ± 0.025V
• Board Size: 38mm × 28mm × 3.6mm (1.50 × 1.10 × 0.14 inch)
• Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Thermal Control Support
Description
The HXYP-4S-3828 4S 12V LiFePO4 BMS is a compact battery protection board designed for 4-cell LiFePO4 battery packs used in 12V lithium battery systems. It supports 7A continuous discharge current and up to 15A peak current, ensuring stable and safe battery operation.
This BMS monitors each individual cell to prevent overcharging, over-discharging, overcurrent, and short circuits, helping extend battery lifespan and improve system safety. The board also supports thermal control connection, allowing an external thermistor to monitor temperature if needed. Its small size makes it ideal for compact DIY battery packs and portable devices.
Application
• 12V LiFePO4 Battery Packs
• Rechargeable Fan Battery Packs
• Solar Energy Battery Systems
• DIY Lithium Battery Projects
• Portable Backup Power Systems
