Specification
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Charging Voltage: 3.6V
• Charging Current: 2.4A Max
• Input Interface: USB Type-C
• Input Voltage: 5V DC
• Charging Method: CC/CV (Constant Current / Constant Voltage)
• Charging Indicator: Charging / Full Status LED
• Output Connection: B+ / B- Battery Terminal
• Board Size: Approx. 28mm × 17mm × 4mm (1.10 × 0.67 × 0.16 inch)
• Protection: Overcharge Protection & Stable Charging Control
Description

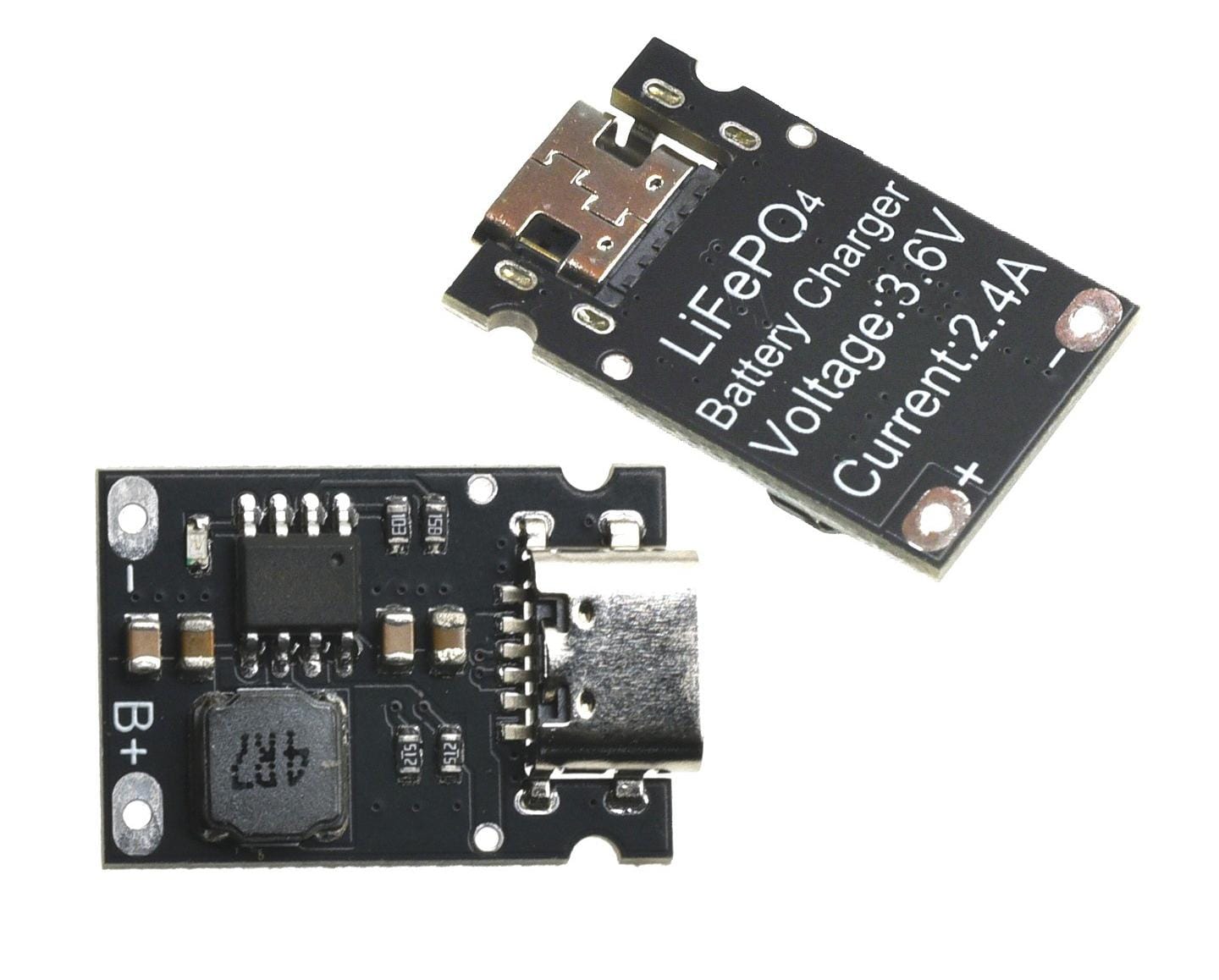

The 3.6V 2.4A LiFePO4 Battery Charging Module is a compact charging board designed specifically for single-cell LiFePO4 batteries (3.2V nominal). It supports USB Type-C 5V input and provides stable 3.6V charging output with up to 2.4A fast charging current.
The module uses a constant current / constant voltage (CC/CV) charging method to ensure safe and efficient charging. Its small size makes it perfect for portable battery projects and DIY electronics. Simply connect the battery to B+ and B- terminals, plug in a Type-C power source, and the module will automatically manage the charging process.
Application
• Single Cell LiFePO4 Battery Charging
• DIY Lithium Battery Projects
• Portable Power Devices
• Rechargeable Lights & Small Electronics
• Custom Battery Pack Charging Modules
