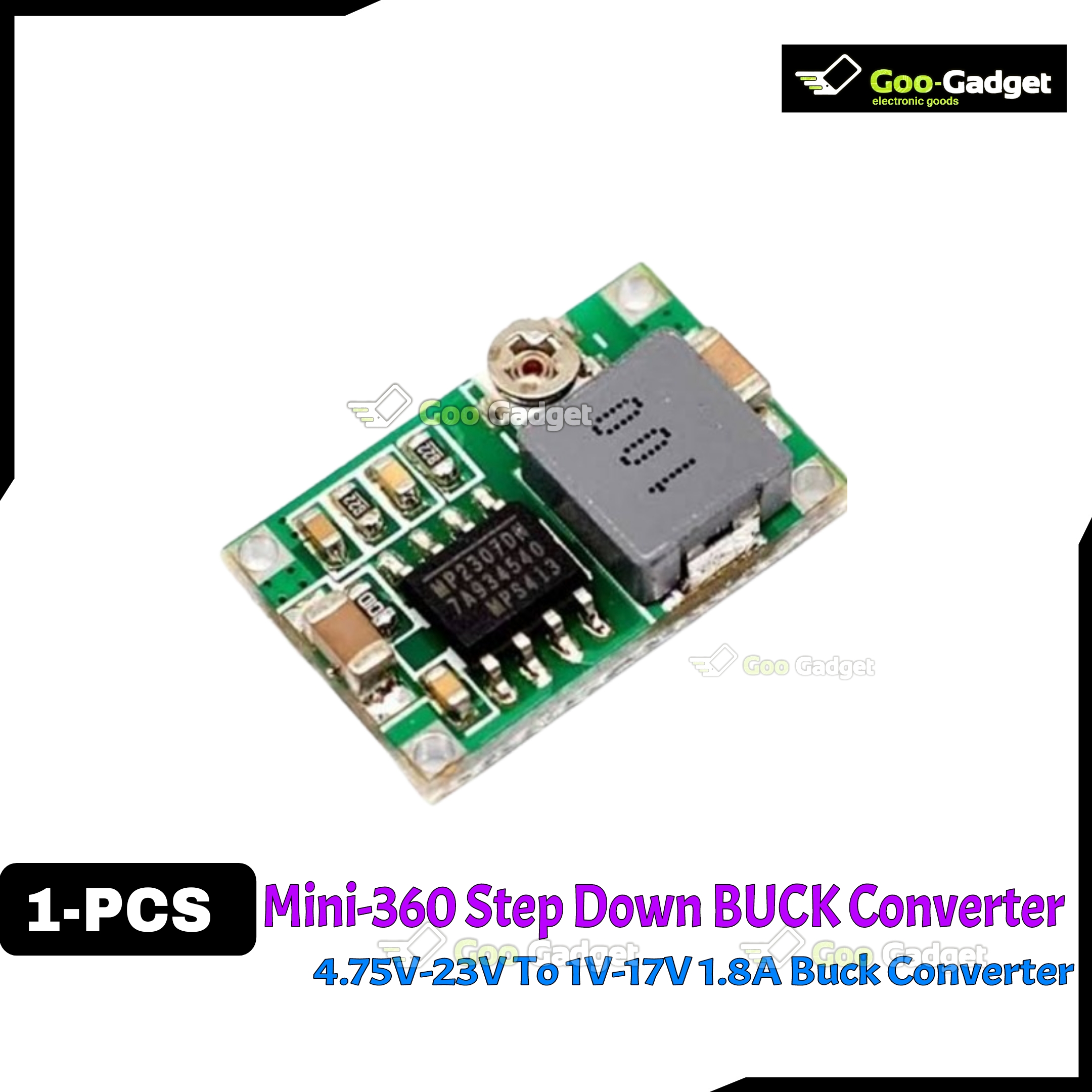

Mini-360 DC-DC Step-Down Buck Converter Module | Adjustable Voltage Regulator 4.75V-23V to 1V-17V

1-PCS Mini-360 DC Step-Down ModuleSpecifications:\Input Voltage Range: 4.75V - 23V DCOutput Voltage Range: 1V - 17V DC (Adjustable)Output Current: Up to 1.8A (Peak), 1.2A (Stable)Conversion Efficiency: Up to 96% (depending on input/output voltage)Ripple Voltage: ≤30mVSwitching Frequency: 340kHzOperating Temperature: -40°C to 85°CDimensions: 17mm x 11mm x 4mmWeight: Approx. 2gProtection Features: Over-temperature and short circuit protectionApplications:Power regulation for embedded and IoT devices.DIY electronics and prototyping projects.Battery-powered systems and chargers.Voltage conversion for LED drivers and small motors.Compact power supply for Arduino and Raspberry Pi projects.Description:The Mini-360 DC-DC Step-Down Buck Converter Module is a compact and efficient voltage regulator designed for applications requiring precise voltage conversion. With an adjustable output range from 1V to 17V, this module can step down input voltages between 4.75V and 23V, making it ideal for low-power electronics and DIY projects. Its high efficiency ensures minimal energy loss, and the built-in thermal and short-circuit protection enhances reliability. The tiny form factor allows for easy integration into tight spaces, perfect for portable devices, embedded systems, and more.

categories

Category List

All products

•

1-PCS Mini-360 DC Step-Down Module

Specifications:

•

  \Input Voltage Range: 4.75V - 23V DC

• Output Voltage Range: 1V - 17V DC (Adjustable)

• Output Current: Up to 1.8A (Peak), 1.2A (Stable)

• Conversion Efficiency: Up to 96% (depending on input/output voltage)

• Ripple Voltage: ≤30mV

• Switching Frequency: 340kHz

• Operating Temperature: -40°C to 85°C

• Dimensions: 17mm x 11mm x 4mm

• Weight: Approx. 2g

• Protection Features: Over-temperature and short circuit protection

Applications:

1.
   Power regulation for embedded and IoT devices.
2. DIY electronics and prototyping projects.
3. Battery-powered systems and chargers.
4. Voltage conversion for LED drivers and small motors.
5. Compact power supply for Arduino and Raspberry Pi projects.

Description:

The Mini-360 DC-DC Step-Down Buck Converter Module is a compact and efficient voltage regulator designed for applications requiring precise voltage conversion. With an adjustable output range from 1V to 17V, this module can step down input voltages between 4.75V and 23V, making it ideal for low-power electronics and DIY projects. Its high efficiency ensures minimal energy loss, and the built-in thermal and short-circuit protection enhances reliability. The tiny form factor allows for easy integration into tight spaces, perfect for portable devices, embedded systems, and more.

Mini-360 DC-DC Step-Down Buck Converter Module | Adjustable Voltage Regulator 4.75V-23V to 1V-17V

65 BDT85 BDTSave 20 BDT

sold_units 1592

1

add_to_cartbuy_now
