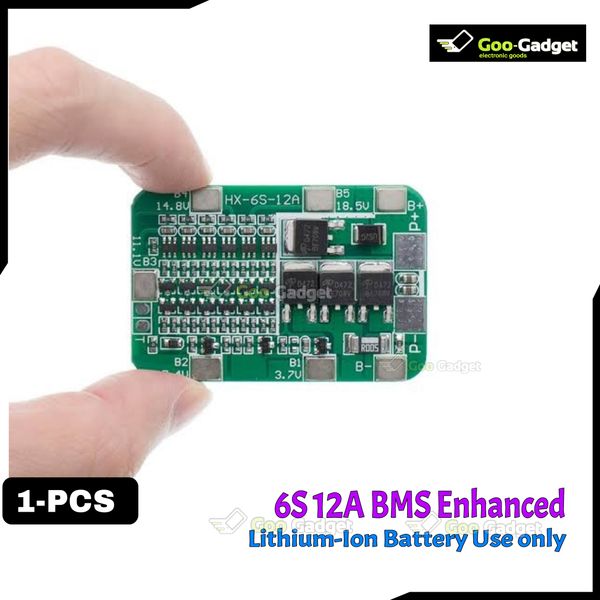

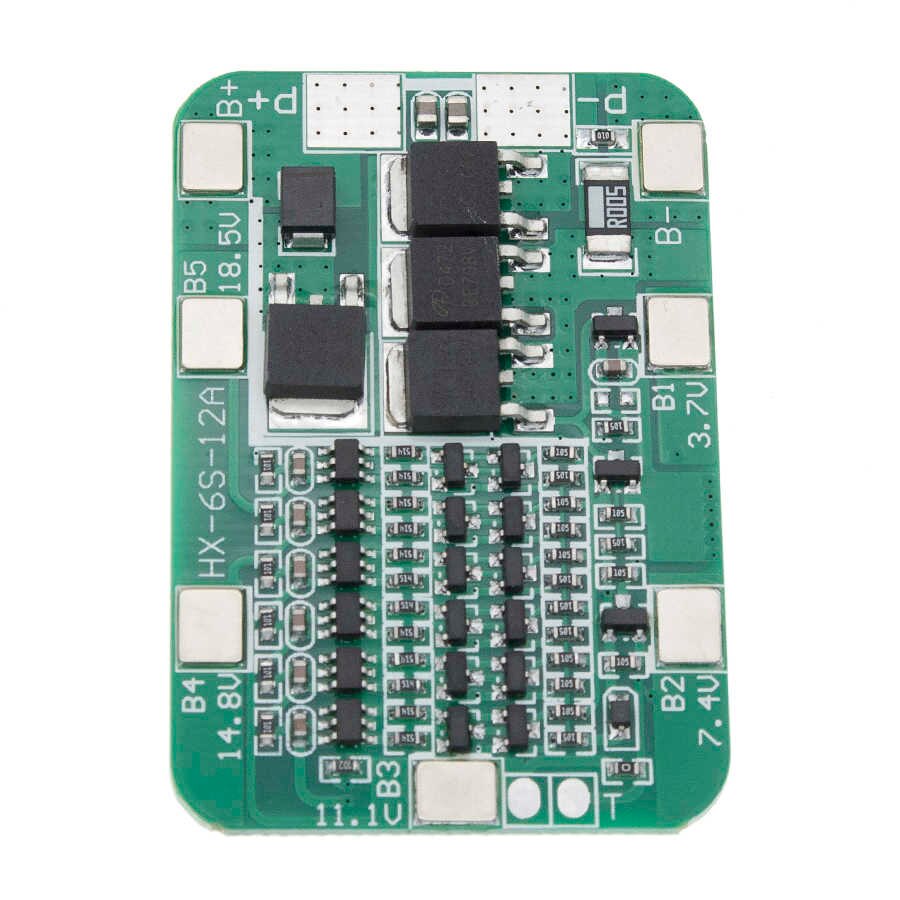

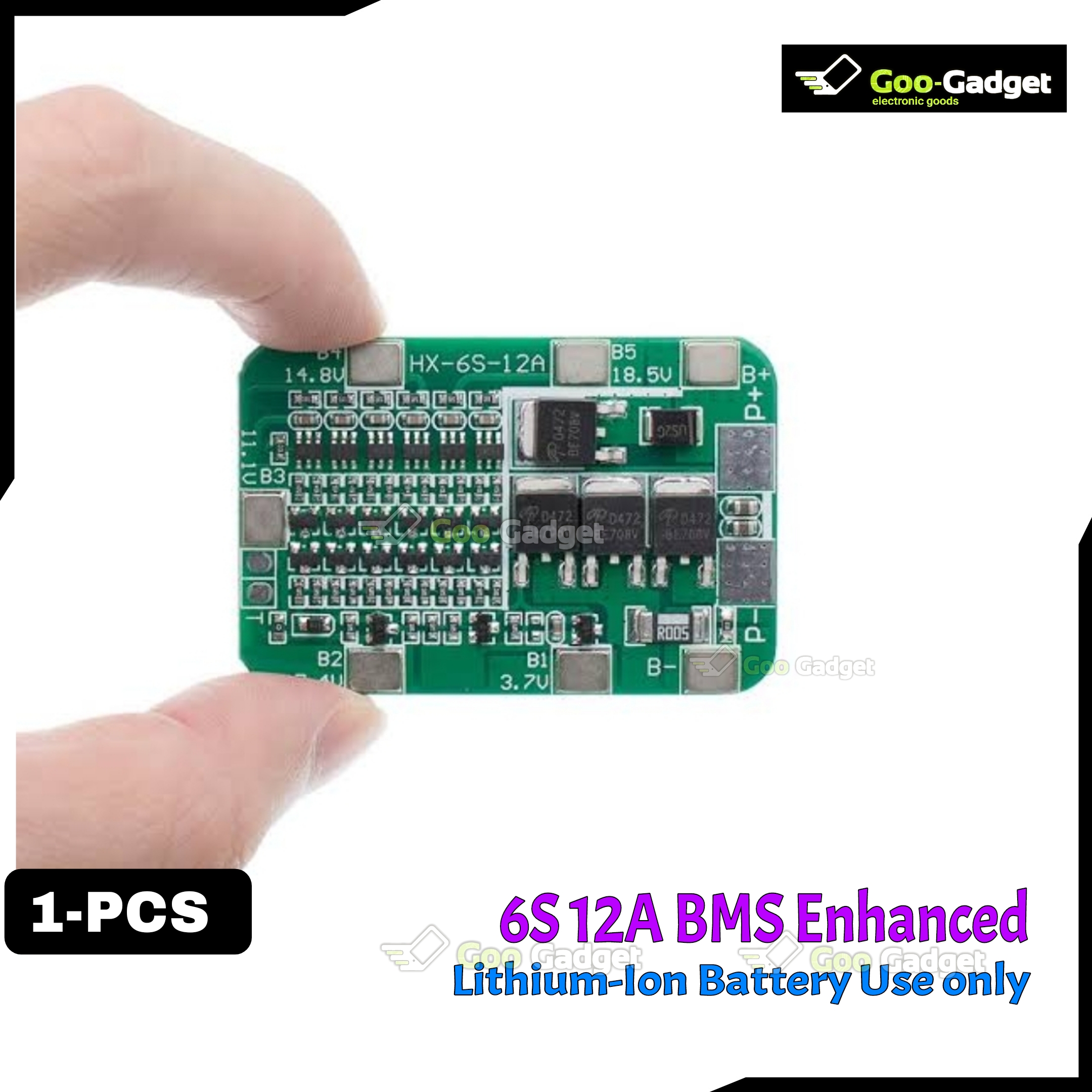

6S 12A 24V BMS Protection Board for 6-Pack 18650 Li-ion Battery Cells with Overcharge and Discharge Protection
1-PCS 6S 12A 24V BMS Specifications:Input Voltage: 24V (6S configuration, 3.7V per cell)Current Rating: 12A continuous discharge currentBattery Type: Compatible with 18650 Li-ion batteriesProtection Features: Overcharge, over-discharge, and over-current protectionBalancing Function: Built-in balancing function for even cell voltage distributionLow Voltage Cutoff: Prevents deep discharge of individual cellsSize: Compact design for easy integration (Approx. 70mm x 50mm x 10mm)Efficiency: High efficiency for optimal battery managementOvercurrent Protection: Safeguards against excessive current flowTemperature Protection: Ensures safe operation within temperature limitsApplications:Electric vehicles powered by 18650 Li-ion battery packs.Solar energy storage systems using 6S Li-ion battery configurations.Power tools requiring stable, high-capacity battery power.DIY battery packs for custom power storage solutions.Robotics and other high-power applications needing reliable battery management.Description:The 6S 12A 24V BMS Protection Board is designed to provide optimal protection for 6-pack 18650 Li-ion batteries. This protection board features built-in overcharge, over-discharge, over-current, and temperature protection, ensuring the safety and longevity of your battery pack. It also includes a balancing function that ensures all cells are charged and discharged evenly, preventing voltage imbalances that could damage the battery. With a maximum continuous discharge current of 12A, this BMS is suitable for powering a wide range of devices requiring a 24V power source, such as electric vehicles, power tools, and renewable energy storage systems.
Goo Gadget
All products
1-PCS 6S 12A 24V BMS
Specifications:
- Input Voltage: 24V (6S configuration, 3.7V per cell)
- Current Rating: 12A continuous discharge current
- Battery Type: Compatible with 18650 Li-ion batteries
- Protection Features: Overcharge, over-discharge, and over-current protection
- Balancing Function: Built-in balancing function for even cell voltage distribution
- Low Voltage Cutoff: Prevents deep discharge of individual cells

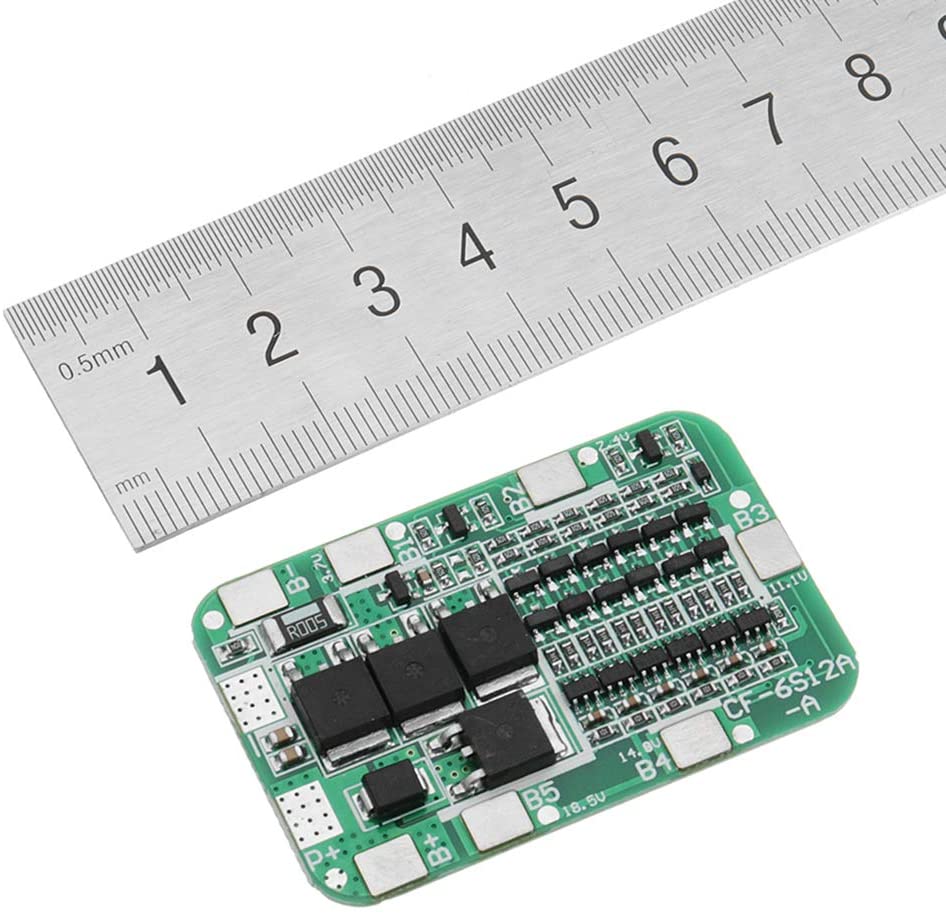

- Size: Compact design for easy integration (Approx. 70mm x 50mm x 10mm)
- Efficiency: High efficiency for optimal battery management
- Overcurrent Protection: Safeguards against excessive current flow
- Temperature Protection: Ensures safe operation within temperature limits
Applications:
- Electric vehicles powered by 18650 Li-ion battery packs.
- Solar energy storage systems using 6S Li-ion battery configurations.
- Power tools requiring stable, high-capacity battery power.
- DIY battery packs for custom power storage solutions.
- Robotics and other high-power applications needing reliable battery management.
Description:
The 6S 12A 24V BMS Protection Board is designed to provide optimal protection for 6-pack 18650 Li-ion batteries. This protection board features built-in overcharge, over-discharge, over-current, and temperature protection, ensuring the safety and longevity of your battery pack. It also includes a balancing function that ensures all cells are charged and discharged evenly, preventing voltage imbalances that could damage the battery. With a maximum continuous discharge current of 12A, this BMS is suitable for powering a wide range of devices requiring a 24V power source, such as electric vehicles, power tools, and renewable energy storage systems.
6S 12A 24V BMS Protection Board for 6-Pack 18650 Li-ion Battery Cells with Overcharge and Discharge Protection
1-PCS 6S 12A 24V BMS
Specifications:
- Input Voltage: 24V (6S configuration, 3.7V per cell)
- Current Rating: 12A continuous discharge current
- Battery Type: Compatible with 18650 Li-ion batteries
- Protection Features: Overcharge, over-discharge, and over-current protection
- Balancing Function: Built-in balancing function for even cell voltage distribution
- Low Voltage Cutoff: Prevents deep discharge of individual cells
- Size: Compact design for easy integration (Approx. 70mm x 50mm x 10mm)
- Efficiency: High efficiency for optimal battery management
- Overcurrent Protection: Safeguards against excessive current flow
- Temperature Protection: Ensures safe operation within temperature limits
Applications:
- Electric vehicles powered by 18650 Li-ion battery packs.
- Solar energy storage systems using 6S Li-ion battery configurations.
- Power tools requiring stable, high-capacity battery power.
- DIY battery packs for custom power storage solutions.
- Robotics and other high-power applications needing reliable battery management.
Description:
The 6S 12A 24V BMS Protection Board is designed to provide optimal protection for 6-pack 18650 Li-ion batteries. This protection board features built-in overcharge, over-discharge, over-current, and temperature protection, ensuring the safety and longevity of your battery pack. It also includes a balancing function that ensures all cells are charged and discharged evenly, preventing voltage imbalances that could damage the battery. With a maximum continuous discharge current of 12A, this BMS is suitable for powering a wide range of devices requiring a 24V power source, such as electric vehicles, power tools, and renewable energy storage systems.
