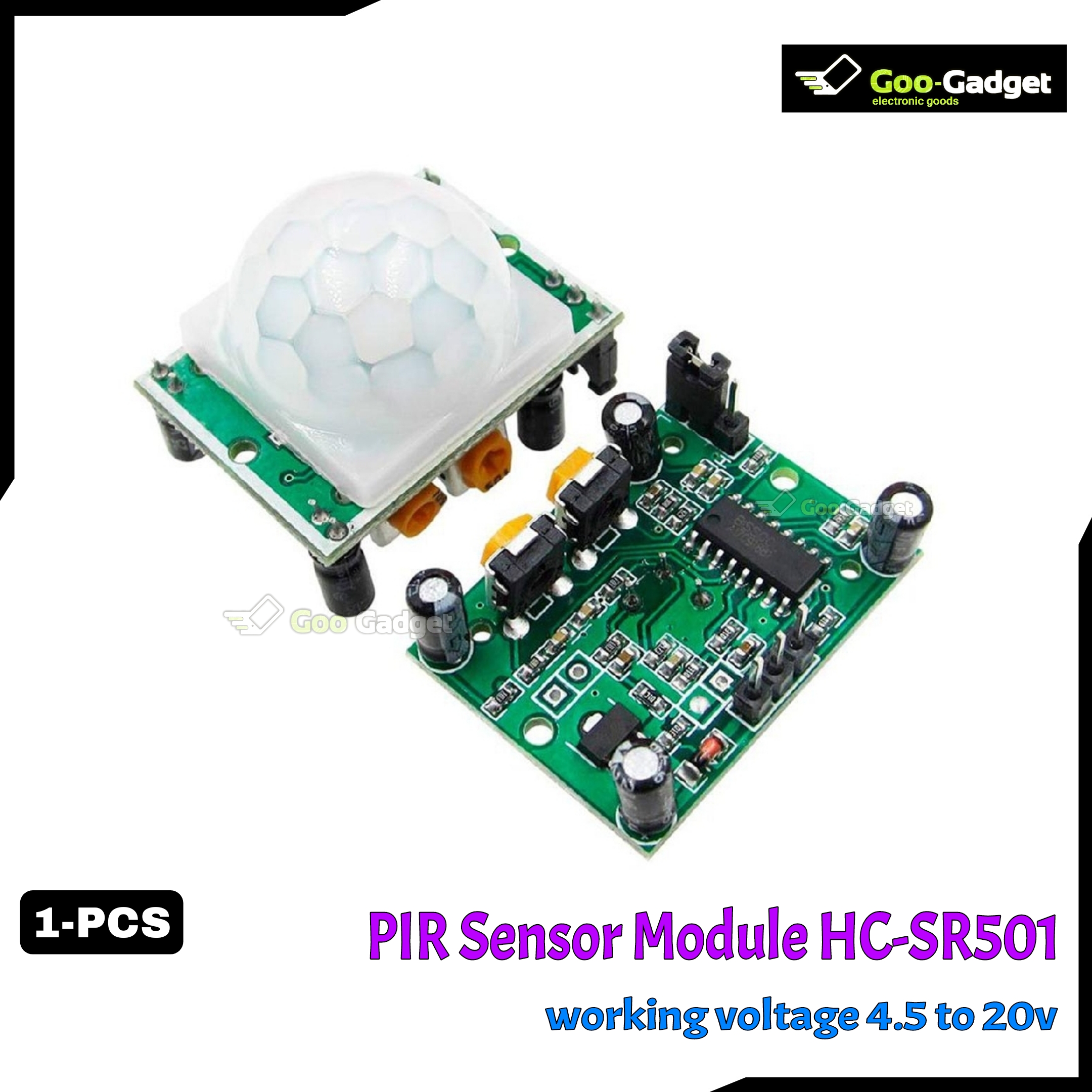

1-PCS PIR Sensor Module HC-SR501
Specifications:
- Sensor Type: Passive Infrared (PIR) motion sensor
- Operating Voltage: DC 4.5V - 20V
- Current Consumption: <50µA
- Detection Range: Up to 7 meters (adjustable)
- Sensing Angle: Approximately 120°
- Delay Time: Adjustable from 0.3 to 300 seconds
- Trigger Mode: Repeatable (default) and non-repeatable (jumper selection)
- Output Level: High (3.3V) on detection, Low (0V) otherwise
- Dimensions: Compact 32mm x 24mm PCB module
Applications:
- Motion-activated lighting systems
- Security alarm and surveillance devices
- Automatic doors and entry systems
- Home automation projects
- Robotic and IoT motion detection solutions
Description:
The PIR Sensor Module HC-SR501 is a reliable motion detection component designed for various DIY, security, and automation projects. Using passive infrared technology, the module detects human or animal movements within its 120° sensing range, up to 7 meters. With adjustable delay time and sensitivity, it allows customization for different applications. The module operates efficiently with low current consumption and provides a high-level output upon motion detection. Its compact design ensures seamless integration into projects like lighting systems, alarm systems, or robotics.
PIR Sensor Module HC-SR501 Quality Product
87 BDT100 BDTSave 13 BDT
Total sold : 205
1-PCS PIR Sensor Module HC-SR501
Specifications:
- Sensor Type: Passive Infrared (PIR) motion sensor
- Operating Voltage: DC 4.5V - 20V
- Current Consumption: <50µA
- Detection Range: Up to 7 meters (adjustable)
- Sensing Angle: Approximately 120°
- Delay Time: Adjustable from 0.3 to 300 seconds
- Trigger Mode: Repeatable (default) and non-repeatable (jumper selection)
- Output Level: High (3.3V) on detection, Low (0V) otherwise
- Dimensions: Compact 32mm x 24mm PCB module
Applications:
- Motion-activated lighting systems
- Security alarm and surveillance devices
- Automatic doors and entry systems
- Home automation projects
- Robotic and IoT motion detection solutions
Description:
The PIR Sensor Module HC-SR501 is a reliable motion detection component designed for various DIY, security, and automation projects. Using passive infrared technology, the module detects human or animal movements within its 120° sensing range, up to 7 meters. With adjustable delay time and sensitivity, it allows customization for different applications. The module operates efficiently with low current consumption and provides a high-level output upon motion detection. Its compact design ensures seamless integration into projects like lighting systems, alarm systems, or robotics.
