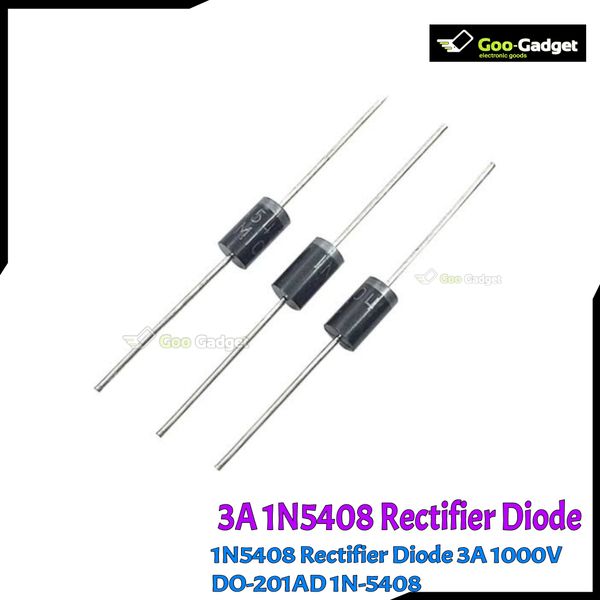

1N5408 3A Rectifier Diode
Specifications
- Type: General-Purpose Rectifier Diode
- Forward Current: 3A (continuous)
- Peak Reverse Voltage: 1000V
- Forward Voltage Drop: ~1.2V at 3A
- Package: DO-201AD Axial Lead
- Material: Silicon Junction
- Reverse Recovery Time: Standard recovery
- Operating Temperature Range: -65°C to +150°C
- Polarity: Cathode indicated by a band on the diode body
Application
- Used in power supply rectifiers for AC to DC conversion.
- Freewheeling diodes in motor control circuits.
- Voltage clamping and protection in electronic circuits.
- Suitable for battery chargers and inverters.
- Ideal for DIY projects and general-purpose rectification tasks.
Description
The 1N5408 Rectifier Diode is a robust and reliable component designed for general-purpose rectification in power supply and electronic circuits. With a maximum continuous forward current of 3A and a peak reverse voltage of 1000V, this diode is ideal for high-voltage applications. Its silicon junction construction ensures durability and efficiency in handling repetitive peak reverse voltages. The DO-201AD package with axial leads allows for easy integration into circuit boards. Suitable for use in rectification, voltage doubling, and power factor correction, the 1N5408 is a versatile choice for a wide range of electronics projects.

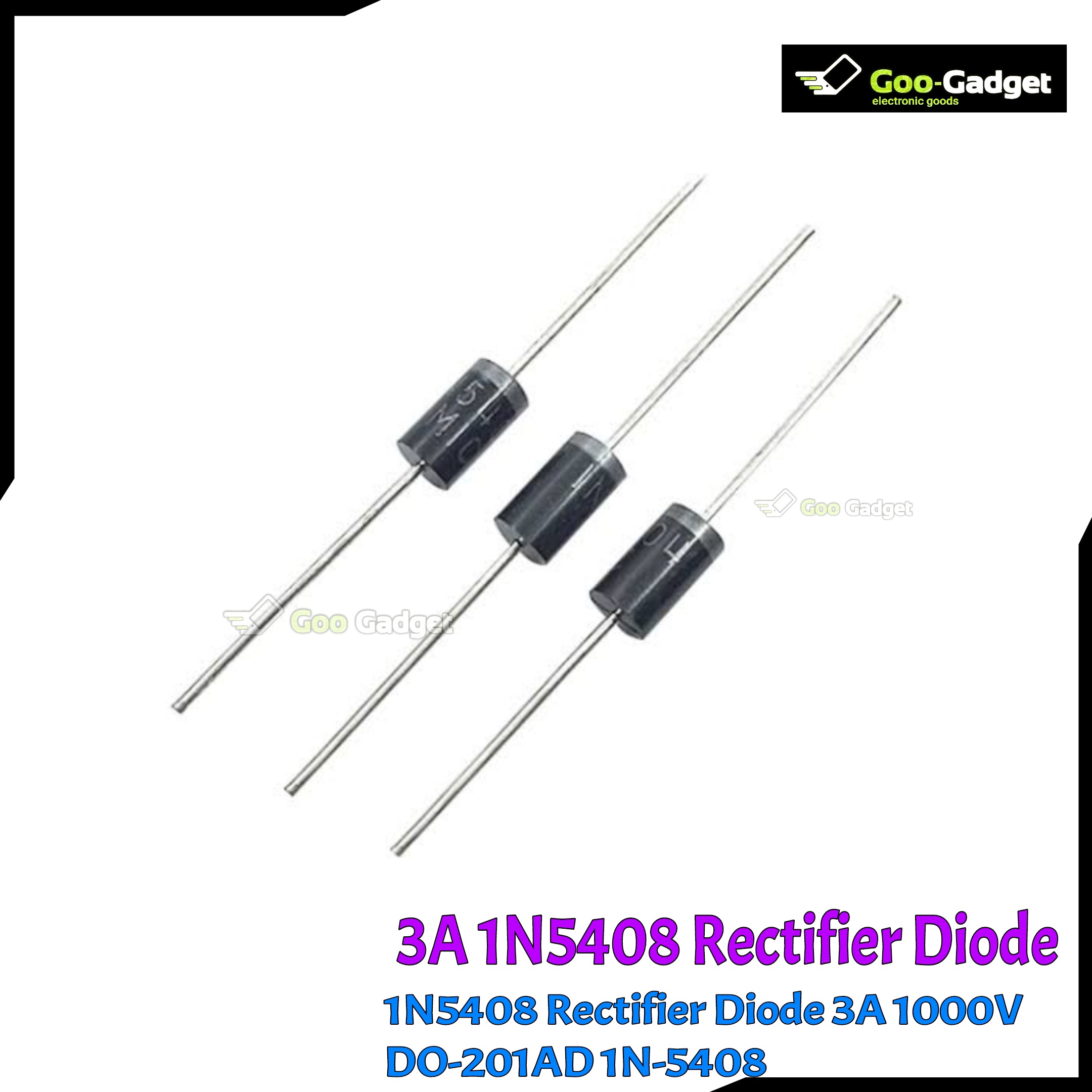

1N5408 Rectifier Diode | 3A 1000V DO-201AD Silicon Junction Diode
5 BDT6 BDTSave 1 BDT
Total sold : 361
1N5408 3A Rectifier Diode
Specifications
- Type: General-Purpose Rectifier Diode
- Forward Current: 3A (continuous)
- Peak Reverse Voltage: 1000V
- Forward Voltage Drop: ~1.2V at 3A
- Package: DO-201AD Axial Lead
- Material: Silicon Junction
- Reverse Recovery Time: Standard recovery
- Operating Temperature Range: -65°C to +150°C
- Polarity: Cathode indicated by a band on the diode body
Application
- Used in power supply rectifiers for AC to DC conversion.
- Freewheeling diodes in motor control circuits.
- Voltage clamping and protection in electronic circuits.
- Suitable for battery chargers and inverters.
- Ideal for DIY projects and general-purpose rectification tasks.
Description
The 1N5408 Rectifier Diode is a robust and reliable component designed for general-purpose rectification in power supply and electronic circuits. With a maximum continuous forward current of 3A and a peak reverse voltage of 1000V, this diode is ideal for high-voltage applications. Its silicon junction construction ensures durability and efficiency in handling repetitive peak reverse voltages. The DO-201AD package with axial leads allows for easy integration into circuit boards. Suitable for use in rectification, voltage doubling, and power factor correction, the 1N5408 is a versatile choice for a wide range of electronics projects.
