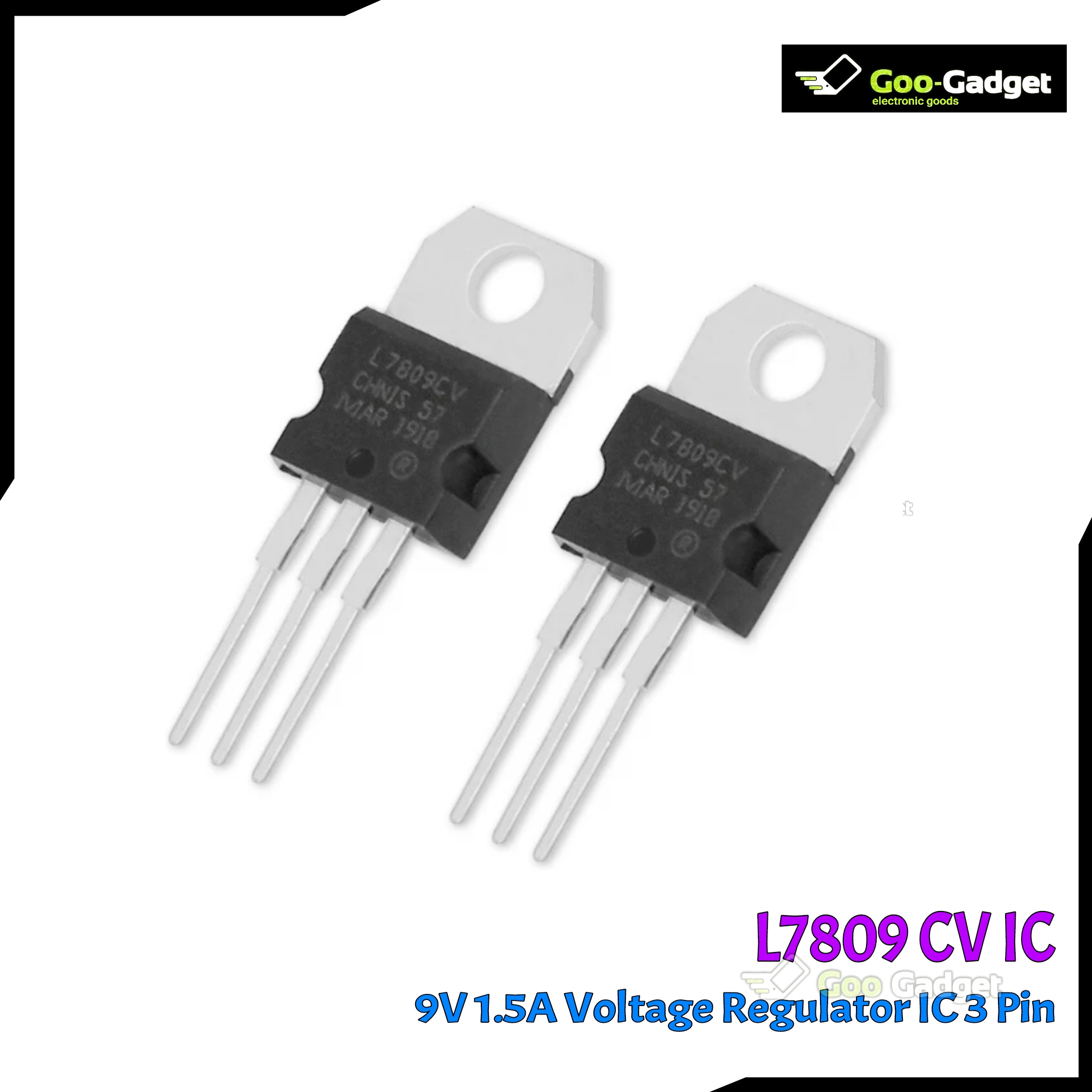

L7809-CV 1.5A IC
Specifications
- Output Voltage: 9V (fixed)
- Output Current: Up to 1.5A
- Input Voltage Range: 11V to 35V
- Dropout Voltage: Typically 2V
- Package Type: TO-220 (3-pin)
- Line Regulation: 0.01%/V (typical)
- Load Regulation: 0.1% (typical)
- Internal Protections: Over-temperature shutdown, short circuit, and overcurrent protection
- Operating Temperature Range: -40°C to +125°C
Application
- Regulated 9V power supply for electronic devices.
- Voltage stabilization in battery-powered projects.
- Noise filtering for sensitive audio or RF circuits.
- DIY kits and embedded system power solutions.
- Industrial and educational circuit designs.
Description
The L7809-CV Voltage Regulator IC is a high-performance linear voltage regulator designed to provide a stable and precise 9V output at currents up to 1.5A. Encased in a durable TO-220 package, this regulator is equipped with built-in thermal shutdown, overcurrent protection, and short circuit protection for enhanced safety and reliability. It ensures a smooth and noise-free output, making it ideal for sensitive electronic applications. Widely used in power supply circuits, the L7809-CV is an excellent choice for DIY projects, embedded systems, and industrial applications requiring regulated 9V DC power.
