L7805-CV 5V IC
Specifications
- Type: Linear Voltage Regulator
- Output Voltage: 5V
- Output Current: Up to 1.5A
- Input Voltage Range: 7V to 35V
- Dropout Voltage: ~2V
- Package: TO-220
- Pins: 3 (Input, Ground, Output)
- Thermal Protection: Integrated
- Short-Circuit Protection: Yes
- Operating Temperature Range: -40°C to +125°C
Application
- Power regulation for microcontrollers and sensors.
- DC voltage stabilization in electronic circuits.
- Power supplies for hobbyist and professional projects.
- Battery-powered devices requiring regulated 5V output.
- Replacement in repair and maintenance of existing circuits.
Description
The L7805-CV Voltage Regulator IC is a dependable and widely used 3-pin linear voltage regulator designed to provide a stable 5V DC output. With a maximum output current of 1.5A, it is suitable for a wide range of low to medium-power applications. Its integrated thermal and short-circuit protection ensures durability and reliability, making it ideal for use in power supplies, microcontroller projects, and other electronic circuits. The TO-220 package with a built-in heatsink mounting option allows efficient heat dissipation for consistent performance. Whether for DIY electronics or professional applications, the L7805-CV offers simplicity and versatility.

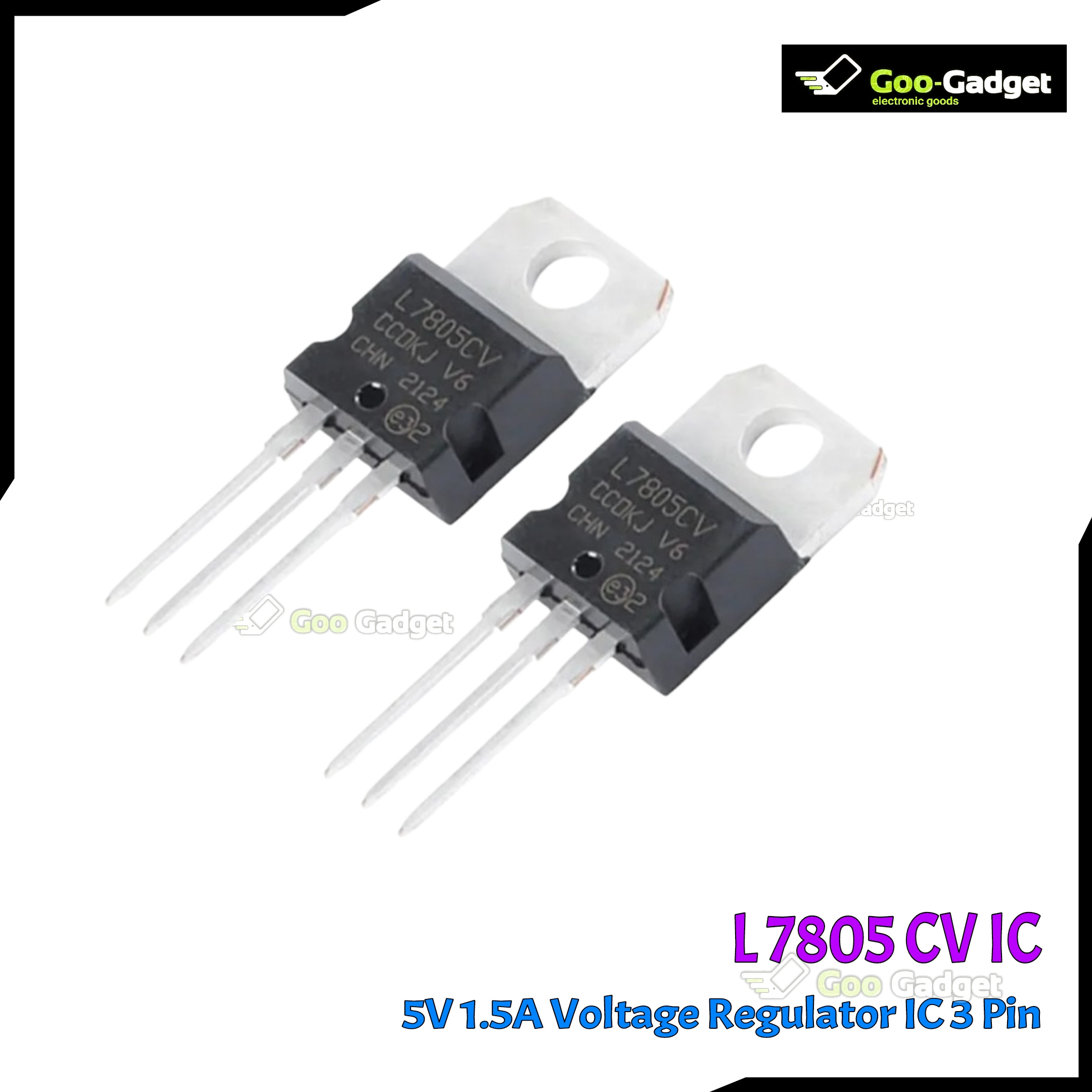

L7805-CV Voltage Regulator IC | 5V 1.5A 3-Pin Linear Voltage Regulator
14 BDT16 BDTSave 2 BDT
Total sold : 210
