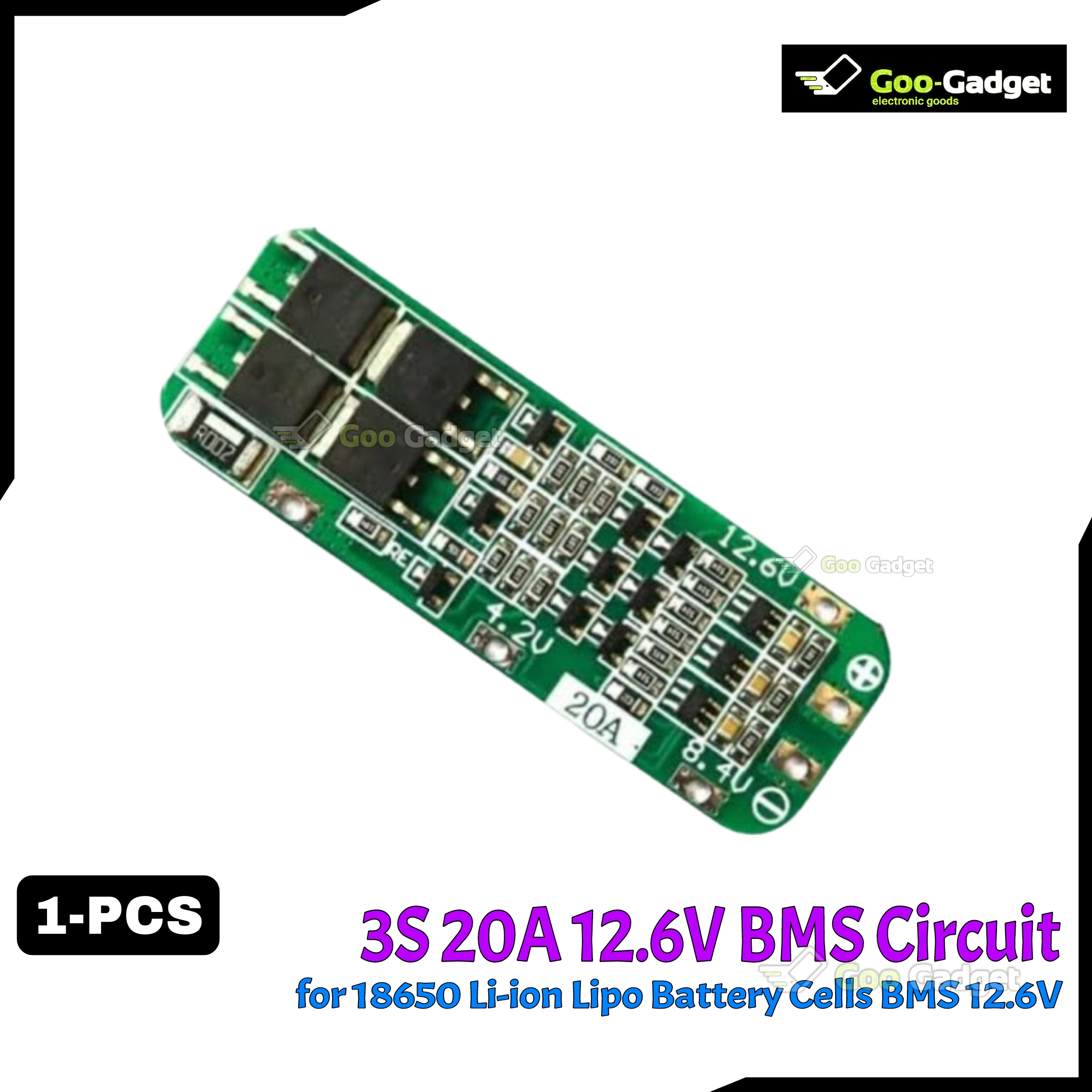

3S 20A 12V 18650 Lithium-Ion Battery Charger Protection Board | BMS Module for Lithium Battery
1-PCS 3S 20A 12V 18650 Lithium-Ion Battery BMSSpecifications:Battery Configuration: 3S (3 Series) for 18650 Lithium-Ion/LiPo CellsInput Voltage Range: 11.1V - 12.6VNominal Cell Voltage: 3.7V per cellCurrent Rating: 20A continuous dischargeOvercharge Protection: 4.25 ± 0.05V per cellOver-discharge Protection: 2.8 ± 0.05V per cellBalance Current: 60mA for consistent cell balancingProtection Features: Short circuit, overcharge, over-discharge, and temperature protectionApplication: Suitable for 18650 Li-ion/LiPo battery packs in e-bikes, power banks, and backup systemsSize: Compact PCB design for easy integrationSize: 53 * 17 * 4mmApplications:Power Tools: Perfect for high-drain tools and equipment.DIY Projects: Reliable for custom 3S battery packs in robotics and portable electronics.Electric Vehicles: Suitable for e-bikes, scooters, and small EVs.Solar Systems: Ensures safe operation in solar power storage applications.RC & Drones: Provides stable power for drones and RC models.Description:The 3S 20A 12V Battery Management System (BMS) Protection Board is designed for high-performance 18650 lithium-ion battery packs. Supporting up to 20A discharge current, it is ideal for applications requiring stable and reliable power delivery.Equipped with robust protection features such as overcharge, over-discharge, short-circuit, and overcurrent protection, the module ensures the safety and longevity of your battery pack. The integrated cell balancing function improves charge efficiency and extends battery life. Compact and efficient, this BMS is essential for safe and powerful 3-cell battery configurations.
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
1-PCS 3S 20A 12V 18650 Lithium-Ion Battery BMS
Specifications:
- Battery Configuration: 3S (3 Series) for 18650 Lithium-Ion/LiPo Cells
- Input Voltage Range: 11.1V - 12.6V
- Nominal Cell Voltage: 3.7V per cell
- Current Rating: 20A continuous discharge
- Overcharge Protection: 4.25 ± 0.05V per cell
- Over-discharge Protection: 2.8 ± 0.05V per cell
- Balance Current: 60mA for consistent cell balancing
- Protection Features: Short circuit, overcharge, over-discharge, and temperature protection
- Application: Suitable for 18650 Li-ion/LiPo battery packs in e-bikes, power banks, and backup systems
- Size: Compact PCB design for easy integration
- Size: 53 * 17 * 4mm
Applications:
- Power Tools: Perfect for high-drain tools and equipment.
- DIY Projects: Reliable for custom 3S battery packs in robotics and portable electronics.
- Electric Vehicles: Suitable for e-bikes, scooters, and small EVs.
- Solar Systems: Ensures safe operation in solar power storage applications.
- RC & Drones: Provides stable power for drones and RC models.
Description:
The 3S 20A 12V Battery Management System (BMS) Protection Board is designed for high-performance 18650 lithium-ion battery packs. Supporting up to 20A discharge current, it is ideal for applications requiring stable and reliable power delivery.
Equipped with robust protection features such as overcharge, over-discharge, short-circuit, and overcurrent protection, the module ensures the safety and longevity of your battery pack. The integrated cell balancing function improves charge efficiency and extends battery life. Compact and efficient, this BMS is essential for safe and powerful 3-cell battery configurations.
