XL4016 10A 300W Adjustable DC-DC Buck Converter Step-Down Power Module S0309
Specification:Model: XL4016 DC-DC Buck ConverterInput Voltage: 5V to 40V DCOutput Voltage: 1.2V to 35V DC (Adjustable)Output Current: Up to 10A (recommended ≤8A for stable use)Output Power: Up to 300W (with heat sink)Conversion Efficiency: Up to 95%Module Type: Non-isolated step-down (buck)Switching Frequency: 180KHzCooling: Large heatsink for effective heat dissipationDimensions: Approx. 65mm x 47mm x 23mm; Weight: ≈ 70gDescription:This 300W XL4016 DC-DC Buck Converter module is a high-efficiency step-down power supply designed for heavy-duty applications. With a wide input range of 5V to 40V and adjustable output from 1.2V to 35V, it provides robust current up to 10A, making it ideal for LED drivers, battery chargers, motor control, and DIY power regulation projects. Built with a durable heat sink and high-quality components, it ensures excellent heat dissipation and stable performance under load. The module offers high conversion efficiency and easy voltage adjustment via onboard potentiometer, perfect for hobbyists, engineers, and power tinkerers.Application:DIY regulated power supply for electronics projectsLED strip or lamp driverCharging 12V/24V lead-acid or lithium batteriesStep-down converter for solar panel systemsMotor speed controller and embedded systems power supply
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification:
- Model: XL4016 DC-DC Buck Converter
- Input Voltage: 5V to 40V DC
- Output Voltage: 1.2V to 35V DC (Adjustable)
- Output Current: Up to 10A (recommended ≤8A for stable use)
- Output Power: Up to 300W (with heat sink)
- Conversion Efficiency: Up to 95%
- Module Type: Non-isolated step-down (buck)
- Switching Frequency: 180KHz
- Cooling: Large heatsink for effective heat dissipation

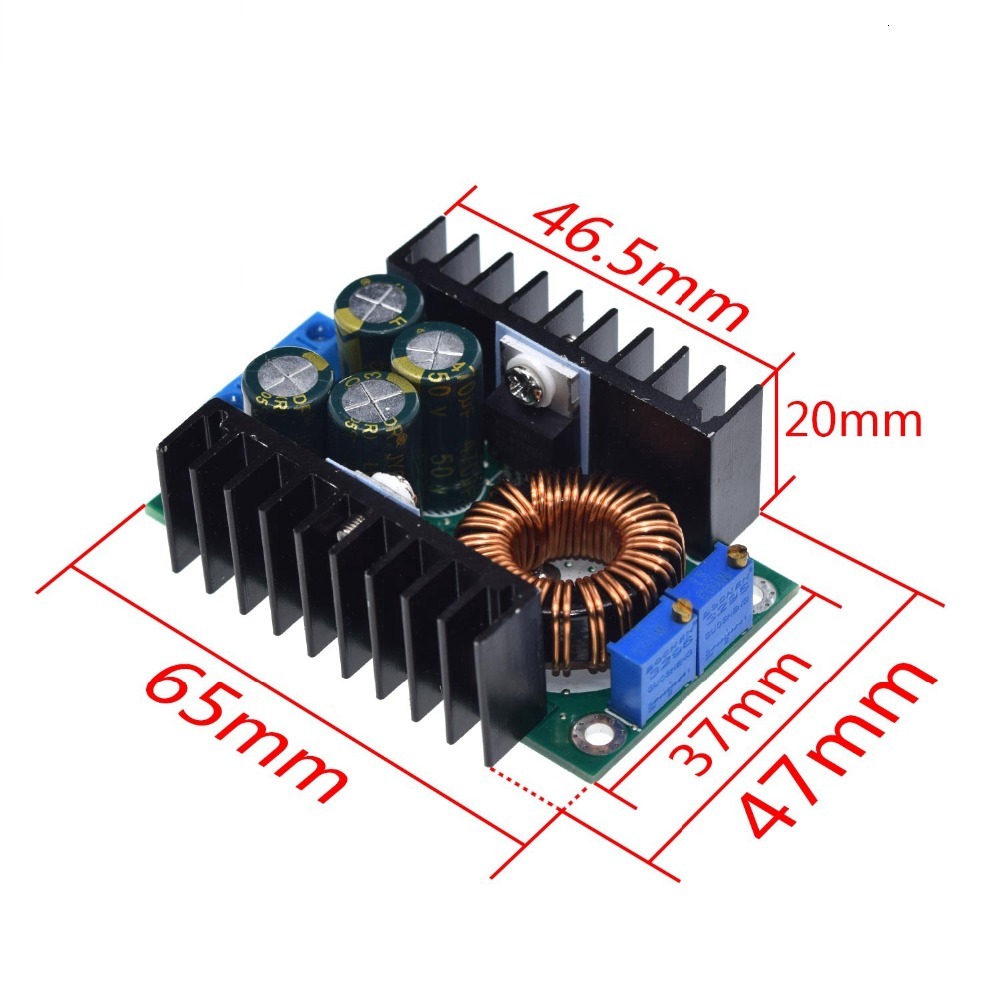

- Dimensions: Approx. 65mm x 47mm x 23mm; Weight: ≈ 70g
Description:
This 300W XL4016 DC-DC Buck Converter module is a high-efficiency step-down power supply designed for heavy-duty applications. With a wide input range of 5V to 40V and adjustable output from 1.2V to 35V, it provides robust current up to 10A, making it ideal for LED drivers, battery chargers, motor control, and DIY power regulation projects. Built with a durable heat sink and high-quality components, it ensures excellent heat dissipation and stable performance under load. The module offers high conversion efficiency and easy voltage adjustment via onboard potentiometer, perfect for hobbyists, engineers, and power tinkerers.
Application:
- DIY regulated power supply for electronics projects
- LED strip or lamp driver
- Charging 12V/24V lead-acid or lithium batteries
- Step-down converter for solar panel systems
- Motor speed controller and embedded systems power supply
XL4016 10A 300W Adjustable DC-DC Buck Converter Step-Down Power Module S0309
325 BDT400 BDTSave 75 BDT
Total sold : 223
Specification:
- Model: XL4016 DC-DC Buck Converter
- Input Voltage: 5V to 40V DC
- Output Voltage: 1.2V to 35V DC (Adjustable)
- Output Current: Up to 10A (recommended ≤8A for stable use)
- Output Power: Up to 300W (with heat sink)
- Conversion Efficiency: Up to 95%
- Module Type: Non-isolated step-down (buck)
- Switching Frequency: 180KHz
- Cooling: Large heatsink for effective heat dissipation
- Dimensions: Approx. 65mm x 47mm x 23mm; Weight: ≈ 70g
Description:
This 300W XL4016 DC-DC Buck Converter module is a high-efficiency step-down power supply designed for heavy-duty applications. With a wide input range of 5V to 40V and adjustable output from 1.2V to 35V, it provides robust current up to 10A, making it ideal for LED drivers, battery chargers, motor control, and DIY power regulation projects. Built with a durable heat sink and high-quality components, it ensures excellent heat dissipation and stable performance under load. The module offers high conversion efficiency and easy voltage adjustment via onboard potentiometer, perfect for hobbyists, engineers, and power tinkerers.
Application:
- DIY regulated power supply for electronics projects
- LED strip or lamp driver
- Charging 12V/24V lead-acid or lithium batteries
- Step-down converter for solar panel systems
- Motor speed controller and embedded systems power supply
