DC 400W 15A Step-Up Boost Converter Module | 8.5V–50V to 10V–60V Adjustable Power Supply | Constant Current LED Driver Charger
Specifications:Input Voltage: 8.5V to 50V DCOutput Voltage: 10V to 60V DC (adjustable)Output Current: 0A to 15A (adjustable)Power Output: Up to 400W (with enhanced cooling)Conversion Efficiency: Up to 96%Control Type: Voltage & Current Regulation (via potentiometers)Module Type: Non-isolated Boost ConverterCooling: Aluminum heatsinks + optional fan supportDimensions: Approx. 70mm x 50mm x 30mmWeight: Approx. 85gDescription:This high-power DC-DC Step-Up Boost Converter module provides adjustable output voltage and current for a wide range of electronics applications. Ideal for LED drivers, battery charging, or solar power systems, it can boost input voltages from 8.5V up to 50V and regulate them up to 60V with a max current of 15A. Equipped with dual heatsinks for efficient thermal management.Applications:LED strip or high-power LED driversDIY adjustable power suppliesBattery charging (e.g. lithium-ion, lead-acid)Solar panel boost convertersElectric vehicle or robotics power systems
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specifications:
- Input Voltage: 8.5V to 50V DC
- Output Voltage: 10V to 60V DC (adjustable)
- Output Current: 0A to 15A (adjustable)
- Power Output: Up to 400W (with enhanced cooling)
- Conversion Efficiency: Up to 96%

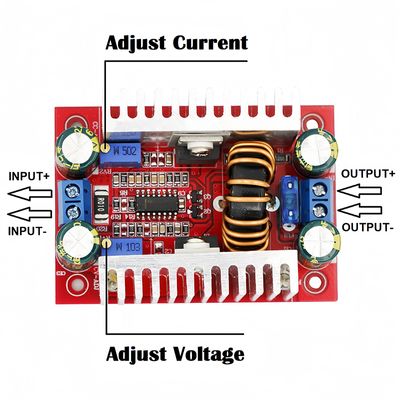

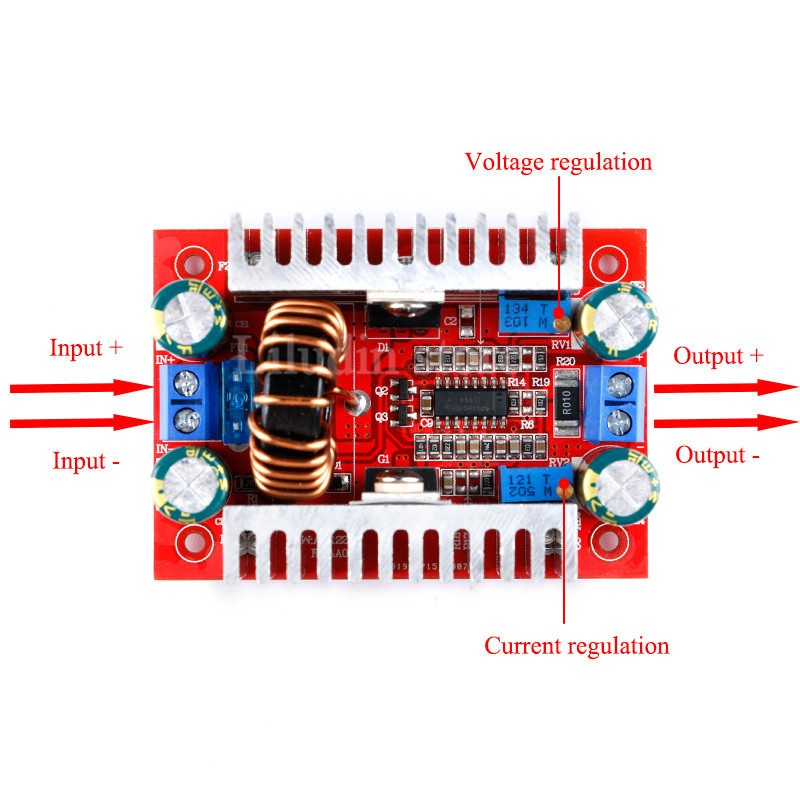

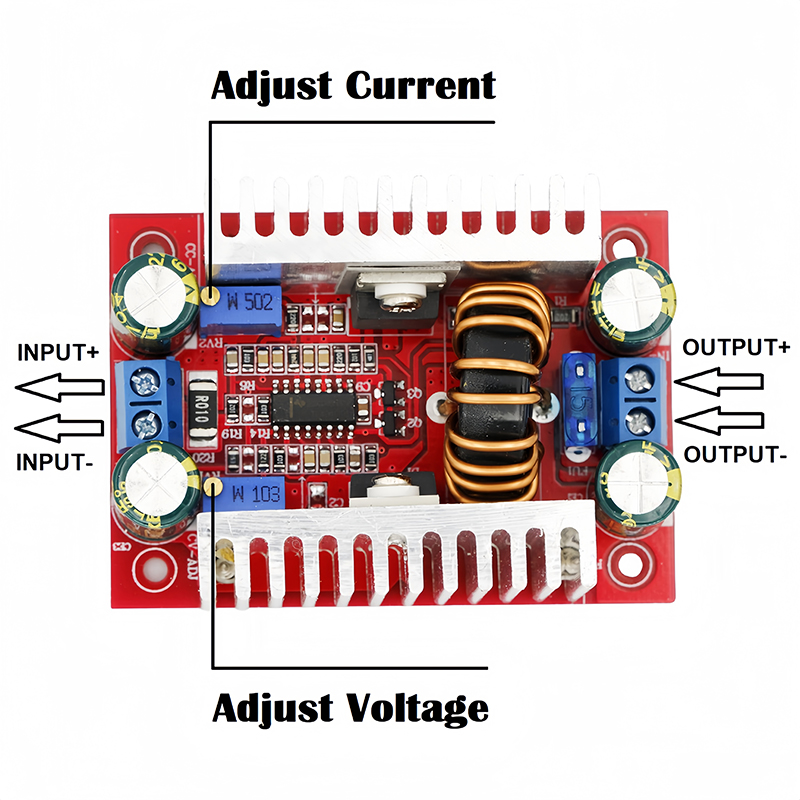

- Control Type: Voltage & Current Regulation (via potentiometers)
- Module Type: Non-isolated Boost Converter
- Cooling: Aluminum heatsinks + optional fan support

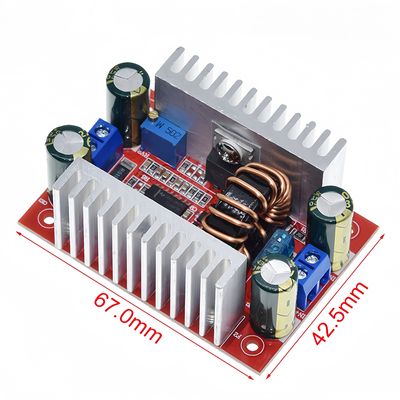

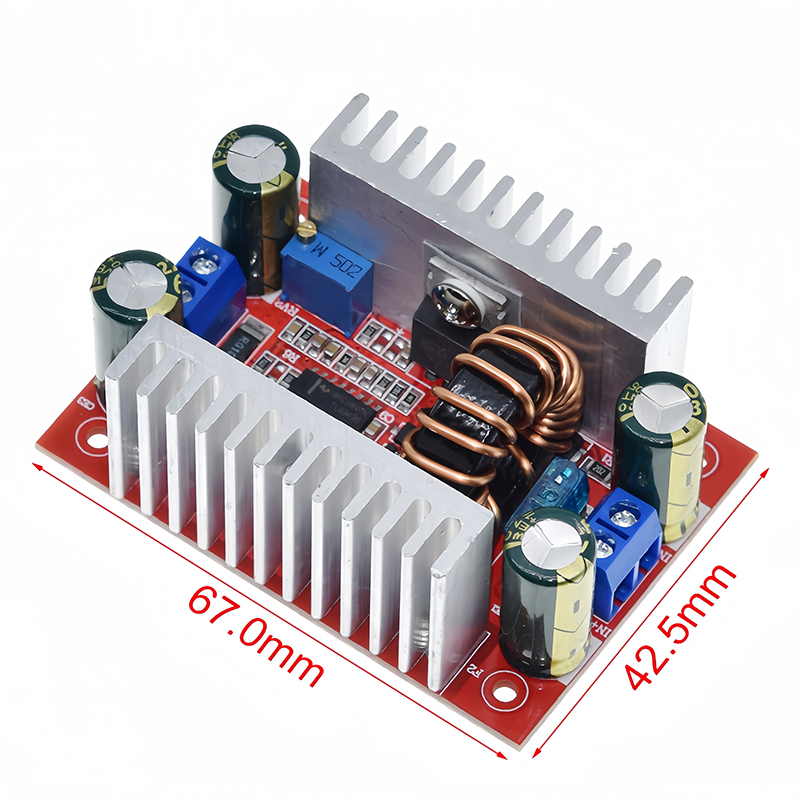

- Dimensions: Approx. 70mm x 50mm x 30mm
- Weight: Approx. 85g
Description:
This high-power DC-DC Step-Up Boost Converter module provides adjustable output voltage and current for a wide range of electronics applications. Ideal for LED drivers, battery charging, or solar power systems, it can boost input voltages from 8.5V up to 50V and regulate them up to 60V with a max current of 15A. Equipped with dual heatsinks for efficient thermal management.
Applications:
- LED strip or high-power LED drivers
- DIY adjustable power supplies
- Battery charging (e.g. lithium-ion, lead-acid)
- Solar panel boost converters
- Electric vehicle or robotics power systems
DC 400W 15A Step-Up Boost Converter Module | 8.5V–50V To 10V–60V Adjustable Power Supply | Constant Current LED Driver Charger
440 BDT550 BDTSave 110 BDT
Total sold : 14
Specifications:
- Input Voltage: 8.5V to 50V DC
- Output Voltage: 10V to 60V DC (adjustable)
- Output Current: 0A to 15A (adjustable)
- Power Output: Up to 400W (with enhanced cooling)
- Conversion Efficiency: Up to 96%
- Control Type: Voltage & Current Regulation (via potentiometers)
- Module Type: Non-isolated Boost Converter
- Cooling: Aluminum heatsinks + optional fan support
- Dimensions: Approx. 70mm x 50mm x 30mm
- Weight: Approx. 85g
Description:
This high-power DC-DC Step-Up Boost Converter module provides adjustable output voltage and current for a wide range of electronics applications. Ideal for LED drivers, battery charging, or solar power systems, it can boost input voltages from 8.5V up to 50V and regulate them up to 60V with a max current of 15A. Equipped with dual heatsinks for efficient thermal management.
Applications:
- LED strip or high-power LED drivers
- DIY adjustable power supplies
- Battery charging (e.g. lithium-ion, lead-acid)
- Solar panel boost converters
- Electric vehicle or robotics power systems
