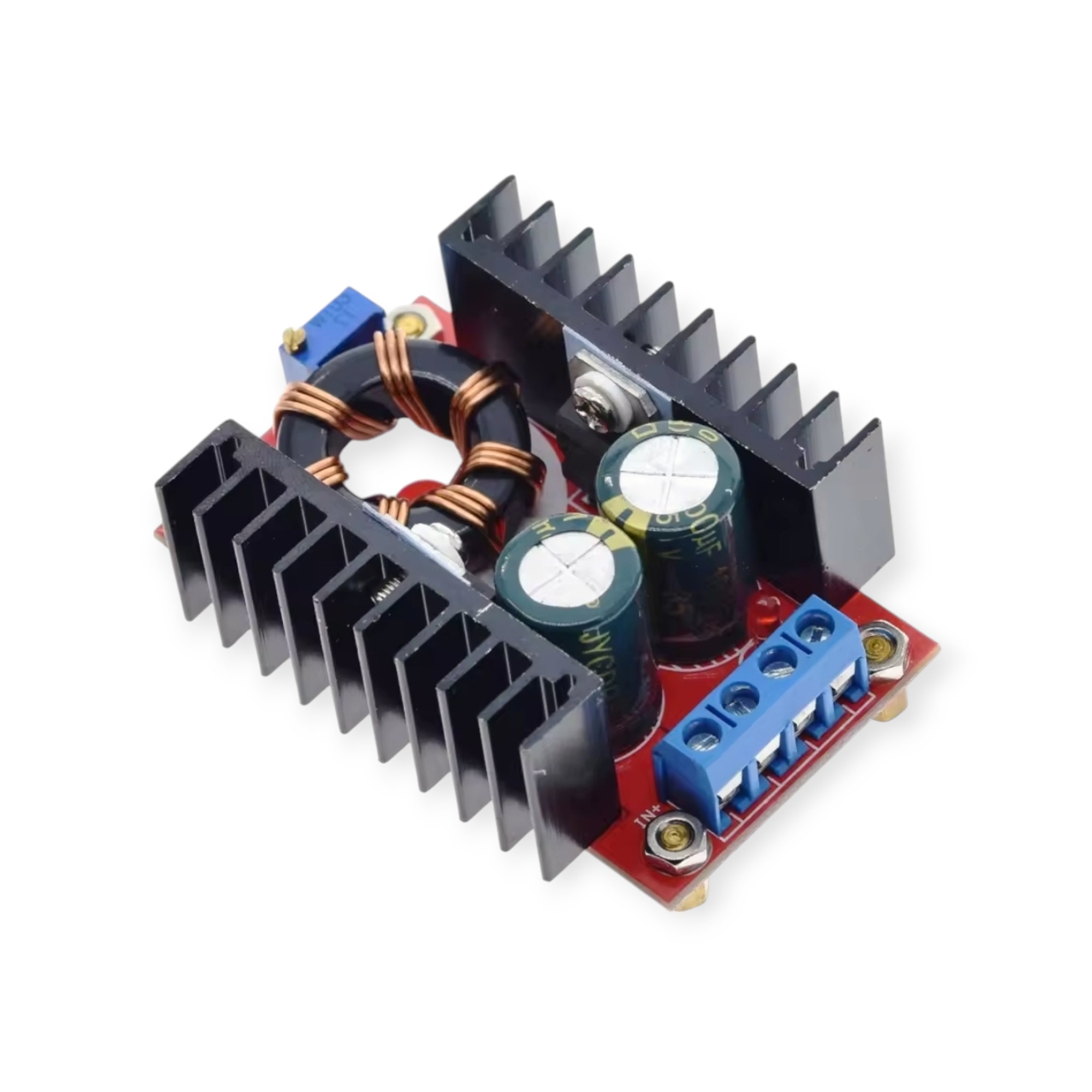

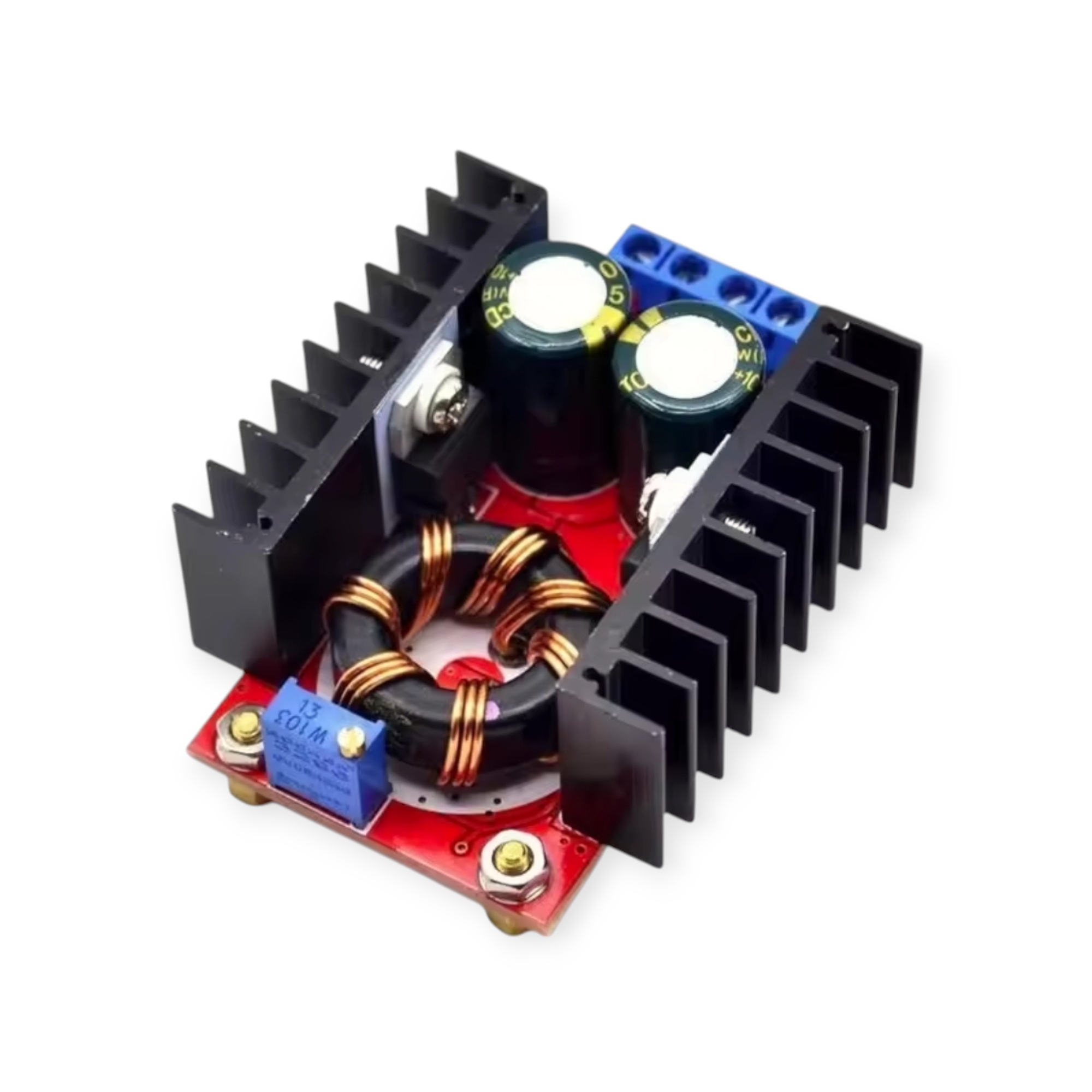

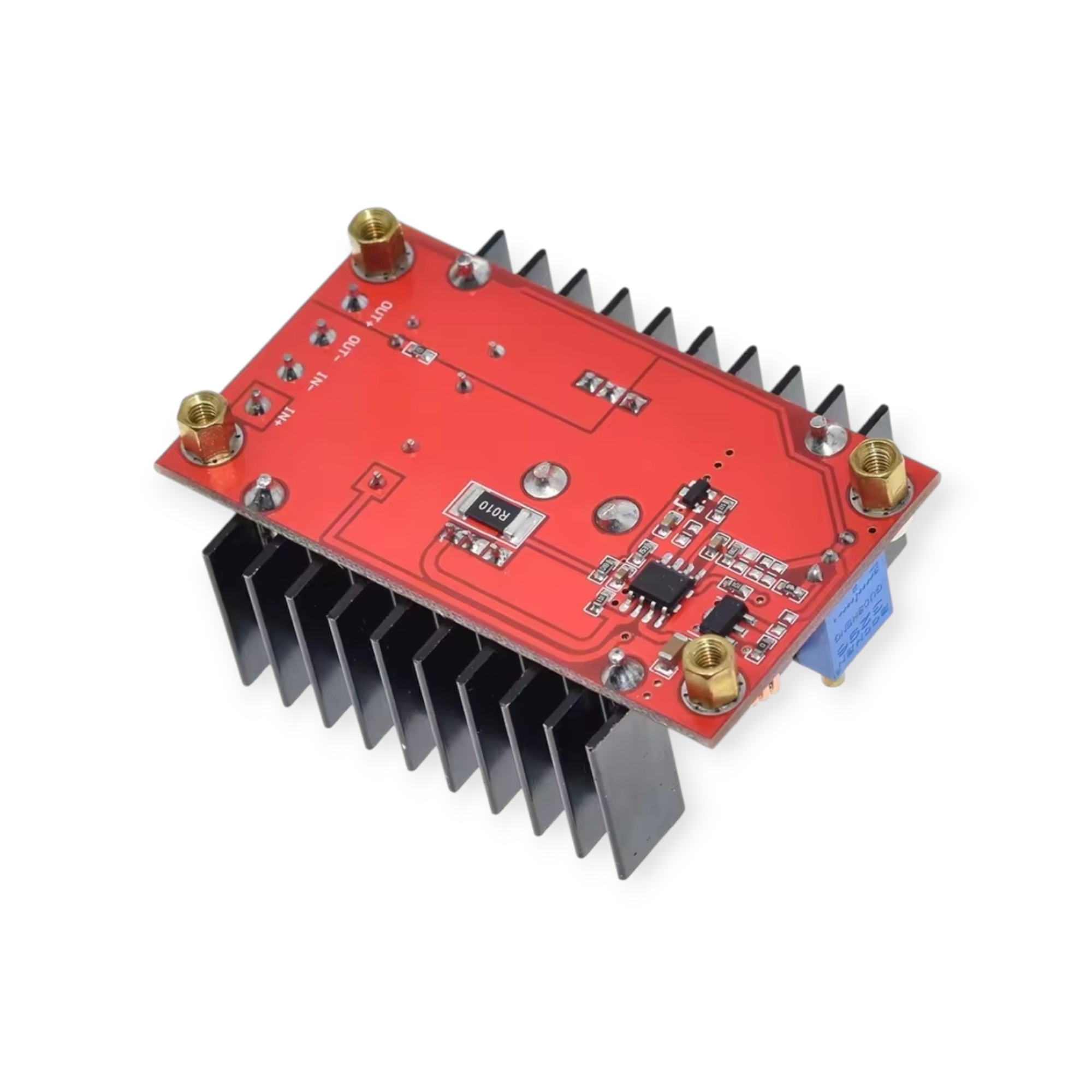

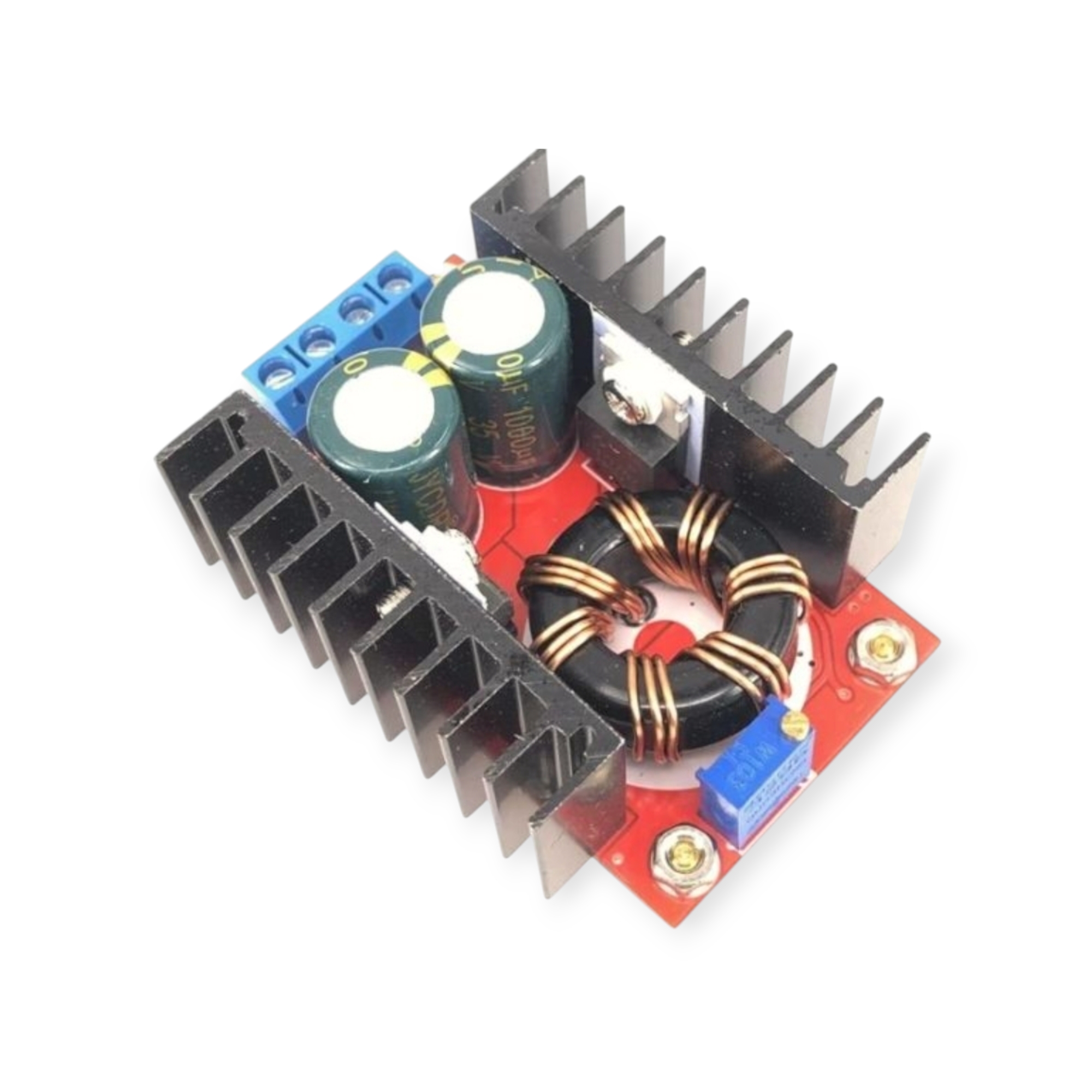

150W DC-DC Boost Converter Step Up Power Supply Module 10-32V To 12-35V 10A Laptop Voltage Charge Board

Specification:Input Voltage: 10V to 32V DCOutput Voltage: 12V to 35V DC (adjustable)Output Current: Maximum 10A (recommended 6A for stable operation)Output Power: Up to 150W (with heat sink)Conversion Efficiency: Up to 96%Switching Frequency: 150kHzBuilt-in heatsink for better thermal performanceModule Type: Non-isolated step-up (boost) converterDimensions: Approx. 65mm x 35mm x 23mmWeight: Approx. 60gDescription: This 150W DC-DC Boost Converter Module is a powerful step-up voltage regulator designed to efficiently convert input voltages between 10V to 32V into adjustable output voltages between 12V to 35V. With a maximum current capacity of 10A and high conversion efficiency, it is ideal for powering laptops, LED lights, or other electronics from a lower voltage source. Equipped with a large heat sink, it maintains stable operation under high load conditions.Application:Laptop power supplyLED driverBattery voltage boosterDIY electronics projectsSolar charging systems

Categories

Category List

All products

Lifepo4 Battery

Bike/Car Self-Start LiFePO4 Battery

Buck/Boost

Amplifier

Tools

Spot Welding

BMS

Humidifier

PowerBank

Fan

Charger

Battery

Motor & Propeller

Soldering KIT

Connector

•
•
•
•
•

Specification:

1. Input Voltage: 10V to 32V DC
2. Output Voltage: 12V to 35V DC (adjustable)
3. Output Current: Maximum 10A (recommended 6A for stable operation)
4. Output Power: Up to 150W (with heat sink)
5. Conversion Efficiency: Up to 96%
6. Switching Frequency: 150kHz
7. Built-in heatsink for better thermal performance
8. Module Type: Non-isolated step-up (boost) converter

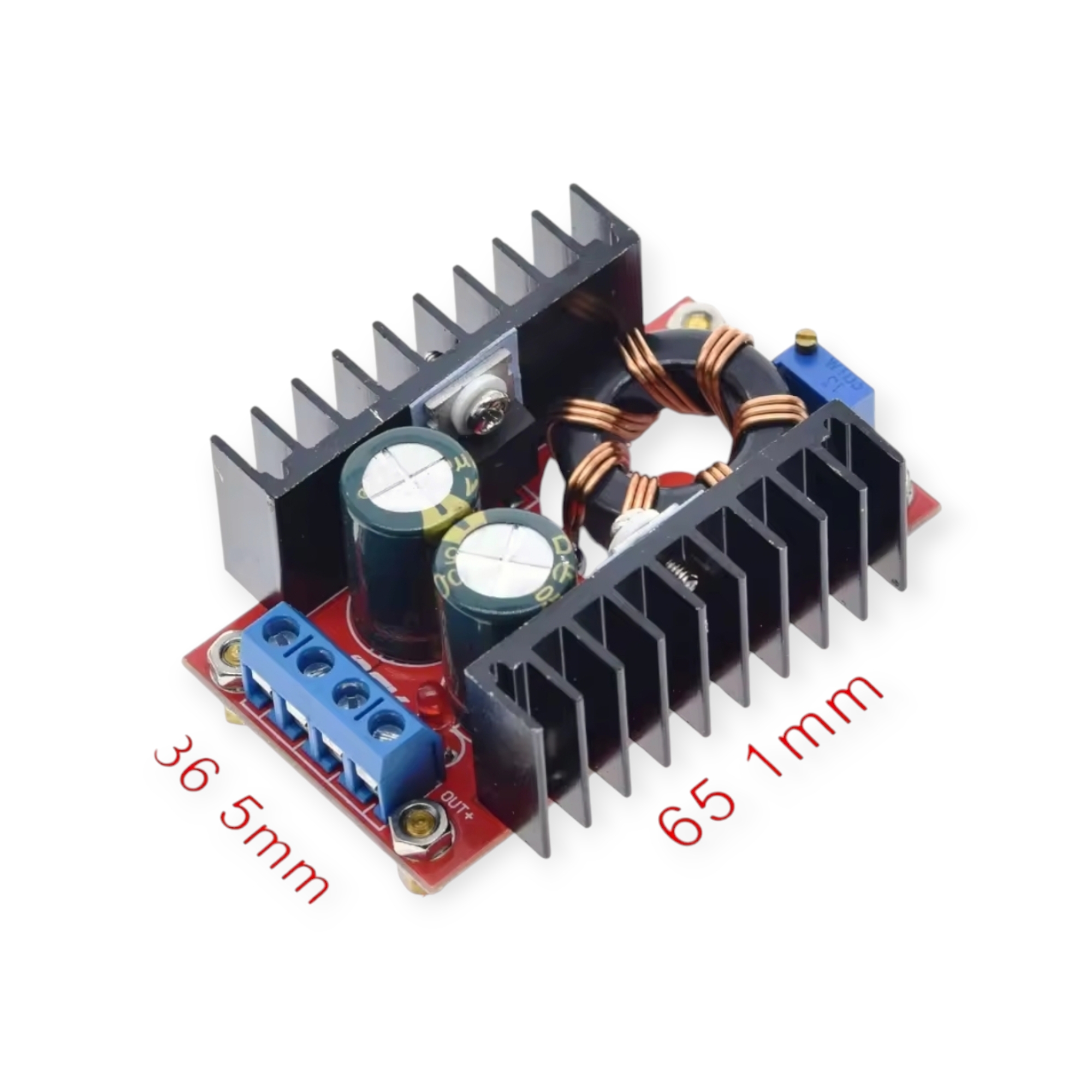

9. Dimensions: Approx. 65mm x 35mm x 23mm
10. Weight: Approx. 60g

Description:

This 150W DC-DC Boost Converter Module is a powerful step-up voltage regulator designed to efficiently convert input voltages between 10V to 32V into adjustable output voltages between 12V to 35V. With a maximum current capacity of 10A and high conversion efficiency, it is ideal for powering laptops, LED lights, or other electronics from a lower voltage source. Equipped with a large heat sink, it maintains stable operation under high load conditions.

Application:

1. Laptop power supply
2. LED driver
3. Battery voltage booster
4. DIY electronics projects
5. Solar charging systems

150W DC-DC Boost Converter Step Up Power Supply Module 10-32V To 12-35V 10A Laptop Voltage Charge Board

274 BDT315 BDTSave 41 BDT

Total sold : 15

Add to cartBuy now

Specification:

1. Input Voltage: 10V to 32V DC
2. Output Voltage: 12V to 35V DC (adjustable)
3. Output Current: Maximum 10A (recommended 6A for stable operation)
4. Output Power: Up to 150W (with heat sink)
5. Conversion Efficiency: Up to 96%
6. Switching Frequency: 150kHz
7. Built-in heatsink for better thermal performance
8. Module Type: Non-isolated step-up (boost) converter
9. Dimensions: Approx. 65mm x 35mm x 23mm
10. Weight: Approx. 60g

Description:

This 150W DC-DC Boost Converter Module is a powerful step-up voltage regulator designed to efficiently convert input voltages between 10V to 32V into adjustable output voltages between 12V to 35V. With a maximum current capacity of 10A and high conversion efficiency, it is ideal for powering laptops, LED lights, or other electronics from a lower voltage source. Equipped with a large heat sink, it maintains stable operation under high load conditions.

Application:

1. Laptop power supply
2. LED driver
3. Battery voltage booster
4. DIY electronics projects
5. Solar charging systems
