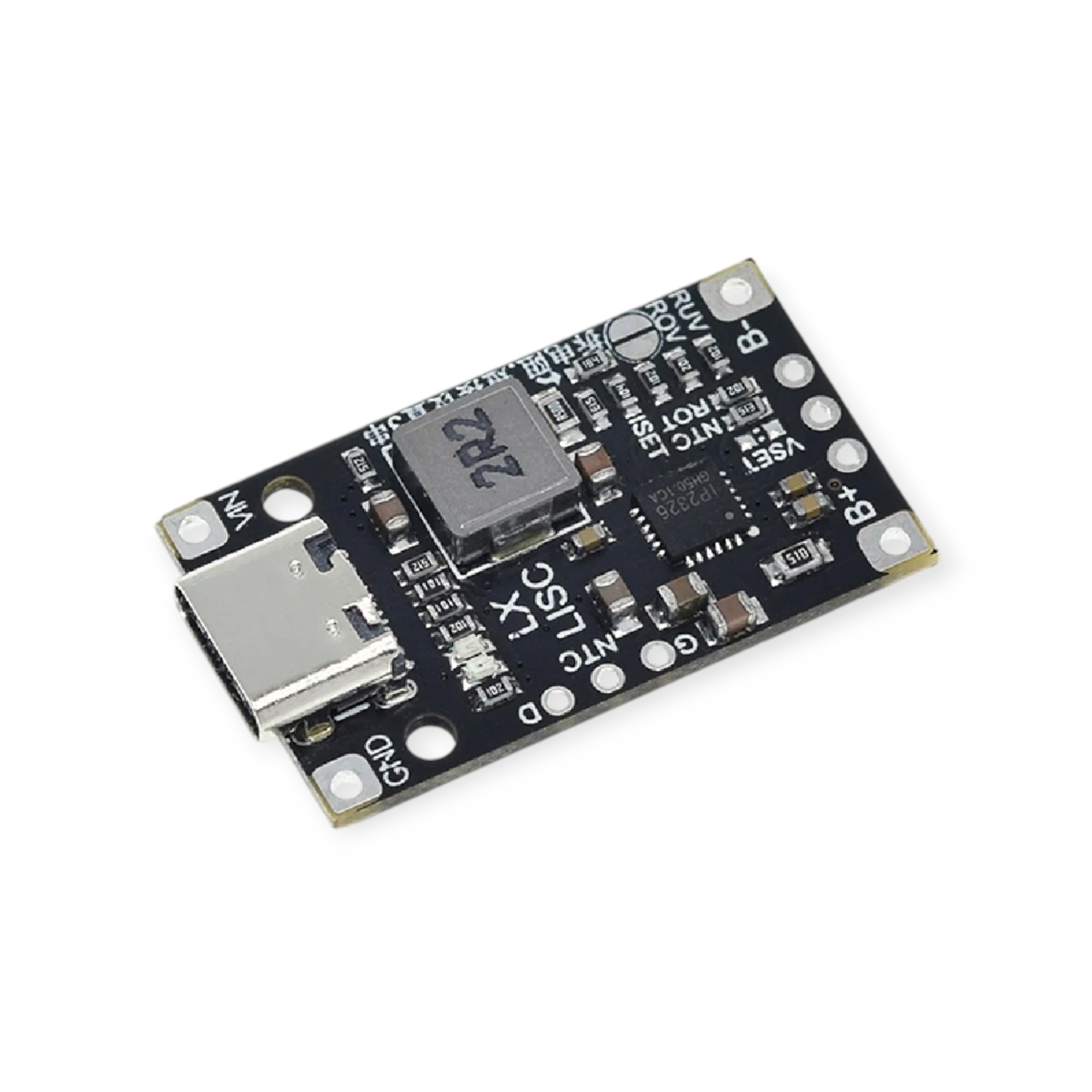

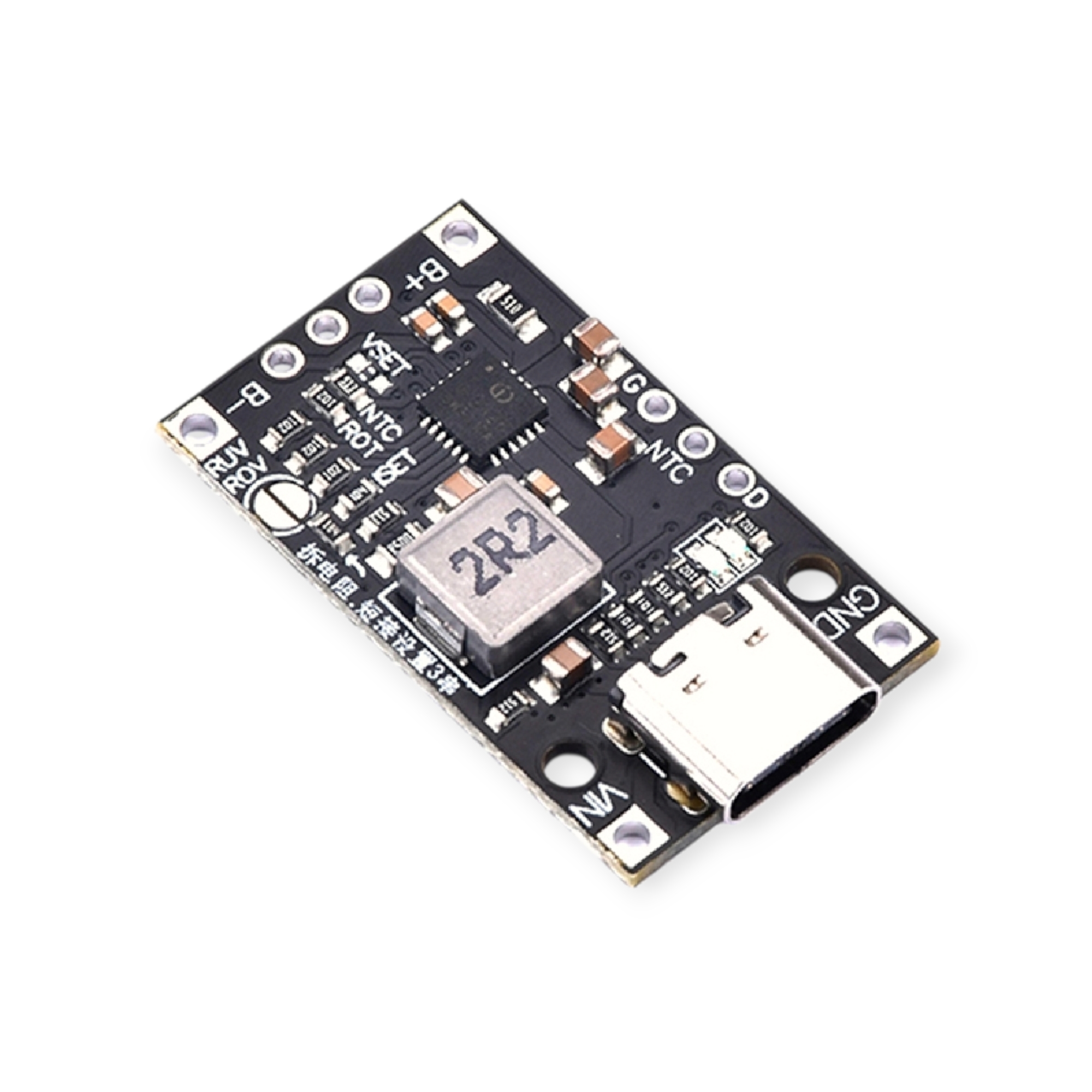

IP2326 Type-C 2S/3S Lithium Battery Charging Boost Module 8.4V/12.6V 1.5A | 15W Fast Charge with Balancing and LED Indicator

Specification:Input Interface: Type-C USBSupported Battery Type: 2S (7.4V) / 3S (11.1V) Li-ionCharging Voltage: 8.4V (2S), 12.6V (3S)Charging Current: Up to 1.5AOutput Power: 15W maxProtection: Overcharge, Over-discharge, Overcurrent, Short CircuitBalancing Function: Yes (Automatic Cell Balancing)LED Indicator: Shows Charging StatusModule Size: Approx. 30mm x 20mmWeight: Approx. 8 gramsColor: Black PCBDescription:This IP2326 Type-C charging and boost module is a compact, efficient power solution for 2S or 3S lithium-ion battery packs. It supports up to 15W fast charging with built-in overcharge protection and automatic cell balancing. The Type-C input makes it easy to use with standard USB power sources. Ideal for portable applications, this module provides real-time charging status via LED indicators and ensures safe and balanced charging every time.Application:DIY Lithium-ion Power Bank2S/3S Li-ion Battery ChargingSolar Battery Charging SystemsRC Electronics or RoboticsPortable DC Power Supply Projects

Categories

Category List

All products

Lifepo4 Battery

Bike/Car Self-Start LiFePO4 Battery

Buck/Boost

Amplifier

Tools

Spot Welding

BMS

Humidifier

PowerBank

Fan

Charger

Battery

Motor & Propeller

Soldering KIT

Connector

•
•
•

Specification:

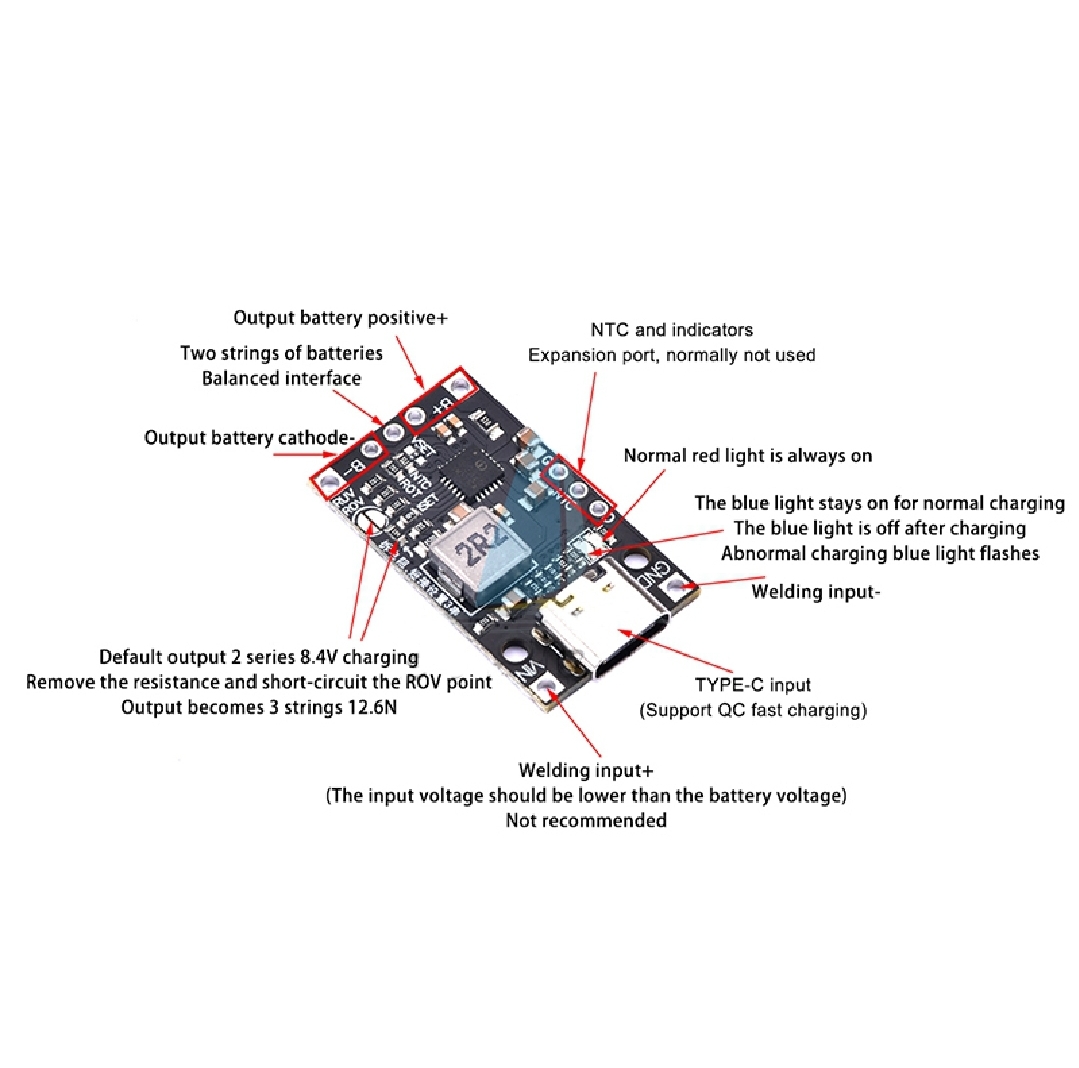

1. Input Interface: Type-C USB
2. Supported Battery Type: 2S (7.4V) / 3S (11.1V) Li-ion
3. Charging Voltage: 8.4V (2S), 12.6V (3S)
4. Charging Current: Up to 1.5A
5. Output Power: 15W max
6. Protection: Overcharge, Over-discharge, Overcurrent, Short Circuit
7. Balancing Function: Yes (Automatic Cell Balancing)
8. LED Indicator: Shows Charging Status
9. Module Size: Approx. 30mm x 20mm
10. Weight: Approx. 8 grams
11. Color: Black PCB

Description:

This IP2326 Type-C charging and boost module is a compact, efficient power solution for 2S or 3S lithium-ion battery packs. It supports up to 15W fast charging with built-in overcharge protection and automatic cell balancing. The Type-C input makes it easy to use with standard USB power sources. Ideal for portable applications, this module provides real-time charging status via LED indicators and ensures safe and balanced charging every time.

Application:

1. DIY Lithium-ion Power Bank
2. 2S/3S Li-ion Battery Charging
3. Solar Battery Charging Systems
4. RC Electronics or Robotics
5. Portable DC Power Supply Projects

IP2326 Type-C 2S/3S Lithium Battery Charging Boost Module 8.4V/12.6V 1.5A | 15W Fast Charge With Balancing And LED Indicator

145 BDT175 BDTSave 30 BDT

Total sold : 35

Add to cartBuy now

Specification:

1. Input Interface: Type-C USB
2. Supported Battery Type: 2S (7.4V) / 3S (11.1V) Li-ion
3. Charging Voltage: 8.4V (2S), 12.6V (3S)
4. Charging Current: Up to 1.5A
5. Output Power: 15W max
6. Protection: Overcharge, Over-discharge, Overcurrent, Short Circuit
7. Balancing Function: Yes (Automatic Cell Balancing)
8. LED Indicator: Shows Charging Status
9. Module Size: Approx. 30mm x 20mm
10. Weight: Approx. 8 grams
11. Color: Black PCB

Description:

This IP2326 Type-C charging and boost module is a compact, efficient power solution for 2S or 3S lithium-ion battery packs. It supports up to 15W fast charging with built-in overcharge protection and automatic cell balancing. The Type-C input makes it easy to use with standard USB power sources. Ideal for portable applications, this module provides real-time charging status via LED indicators and ensures safe and balanced charging every time.

Application:

1. DIY Lithium-ion Power Bank
2. 2S/3S Li-ion Battery Charging
3. Solar Battery Charging Systems
4. RC Electronics or Robotics
5. Portable DC Power Supply Projects
