Specification:
Model: IP5356 Power Management Chip
Output Power: 27W (Max)
Input Ports: Type-C / Micro USB
Output Ports: Dual USB-A + Type-C
Protocol Support: QC3.0, PD3.1, FCP, SCP, AFC, and USB 3.1 Gen-1
Display: Digital LED Percentage Indicator
Output Voltage: 5V / 9V / 12V Auto Adjustment
Charging Efficiency: Up to 95%
Protection Features: Overcharge, Overdischarge, Short Circuit, Temperature Protection
Board Dimensions: 65mm × 25mm × 10mm | Weight: Approx. 15g
---
Description:

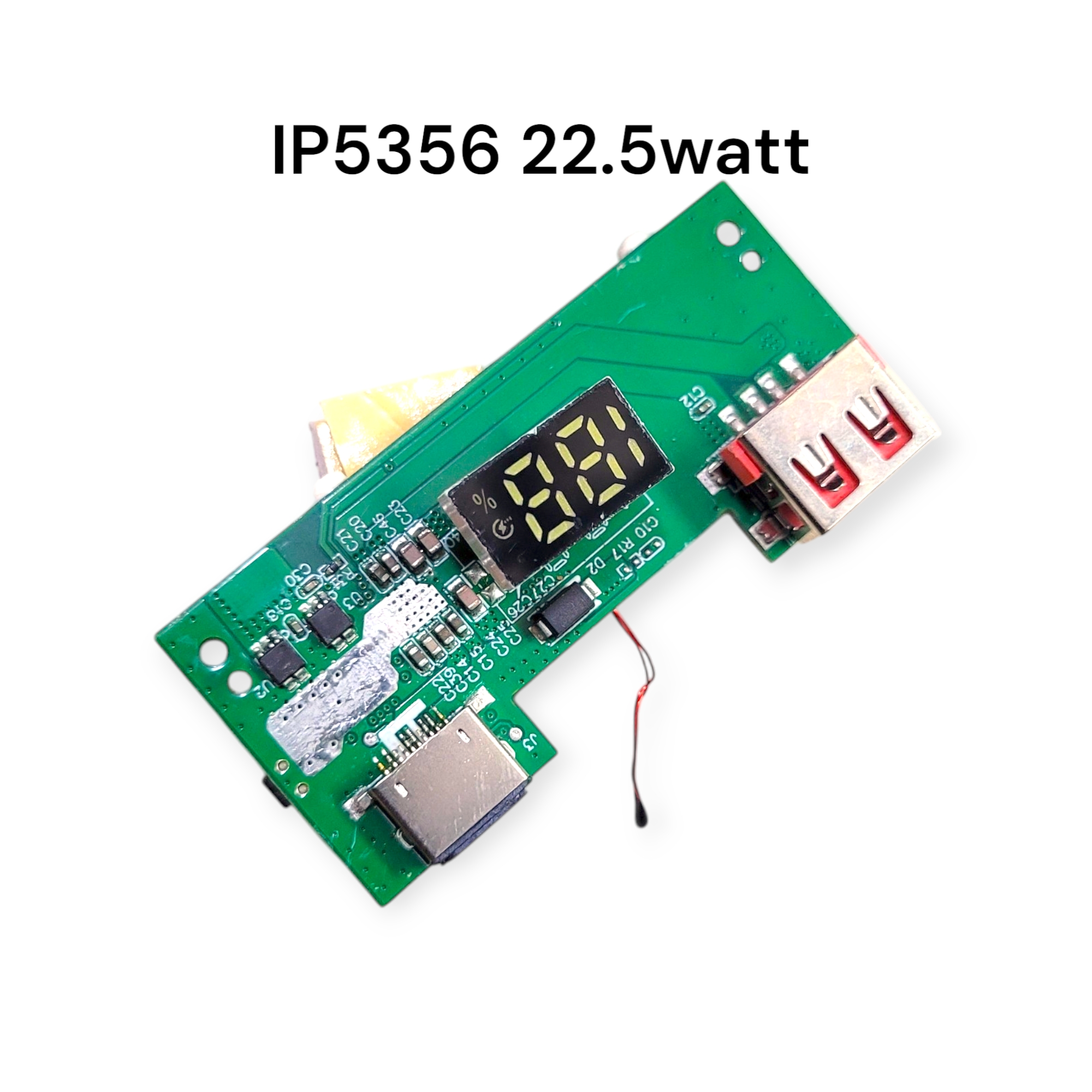

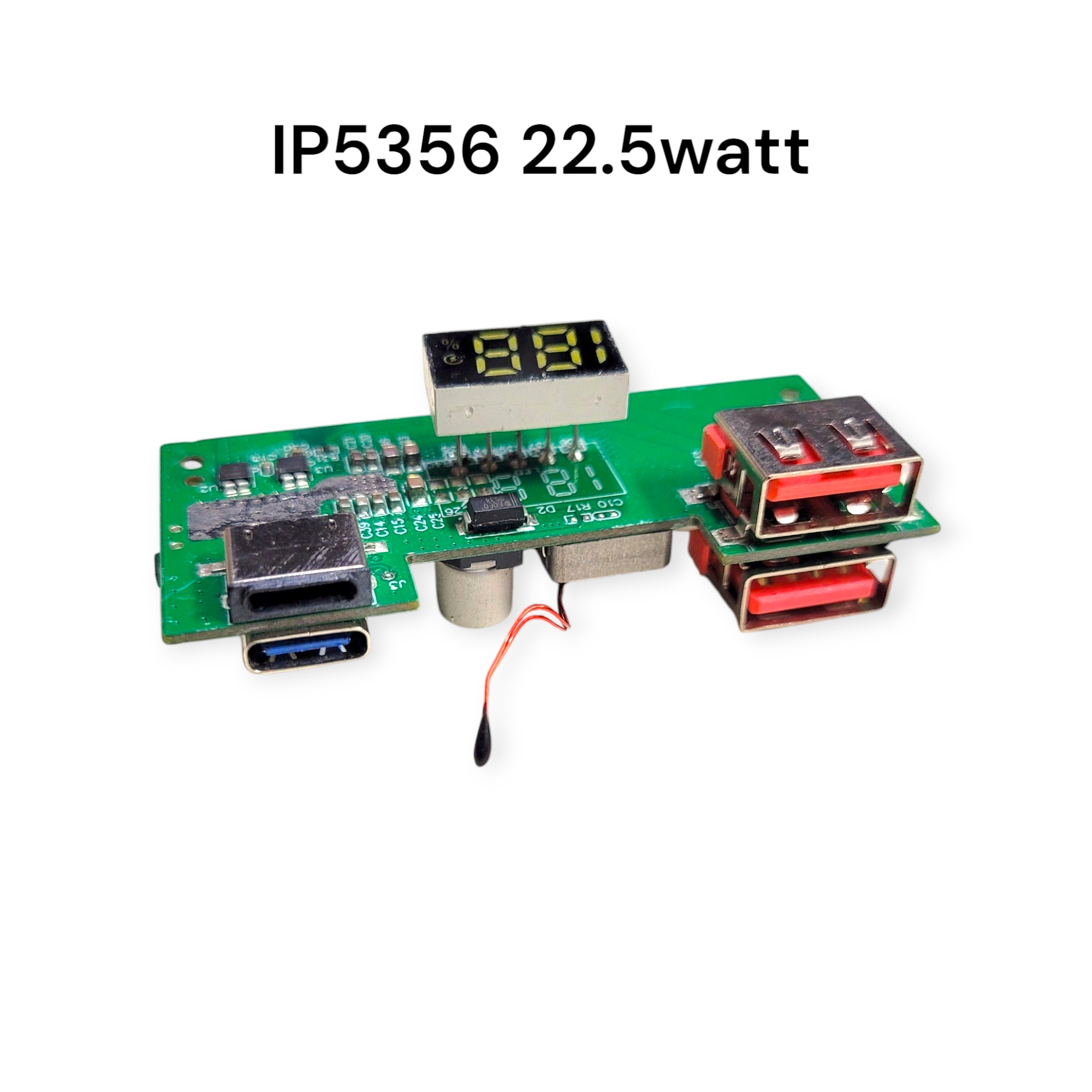

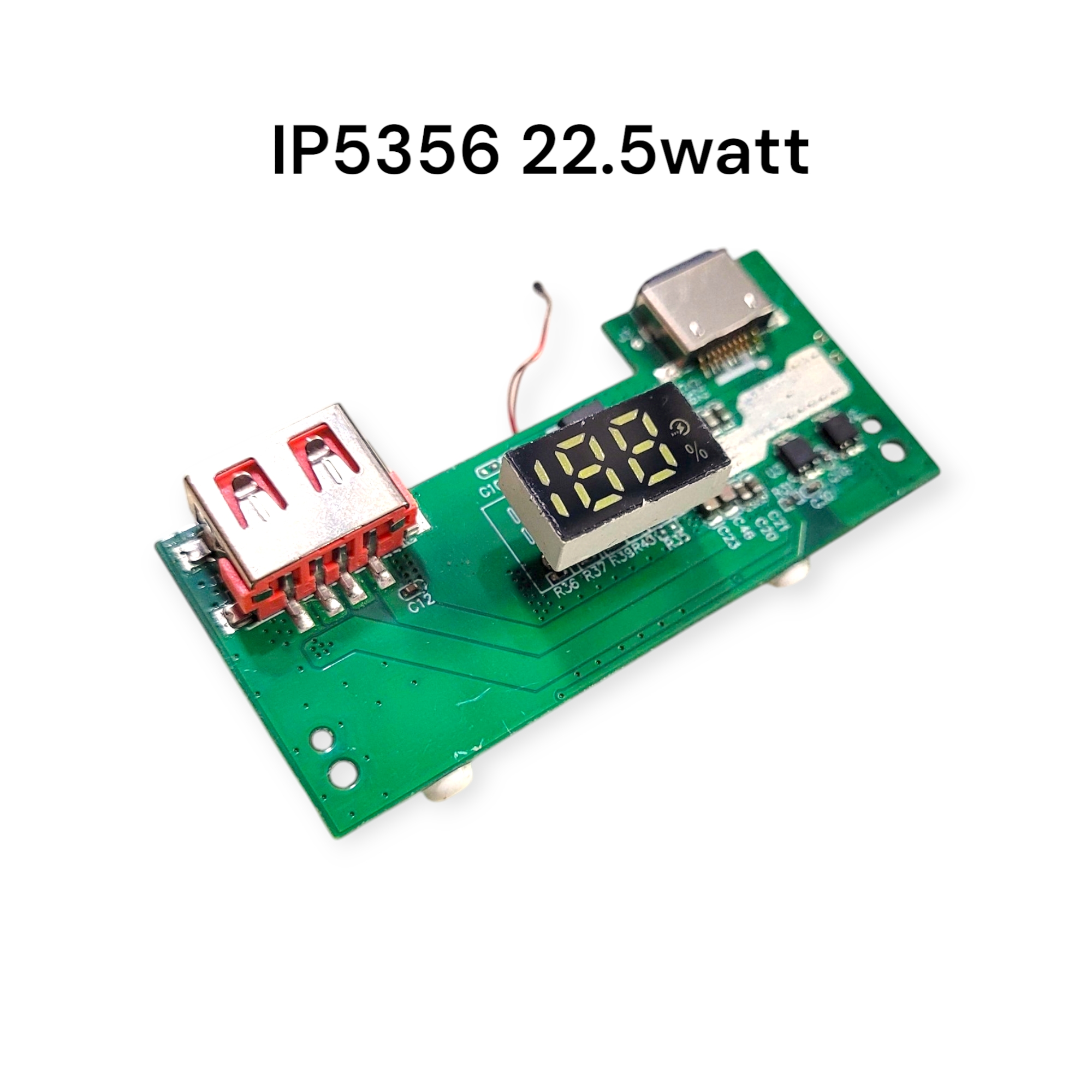

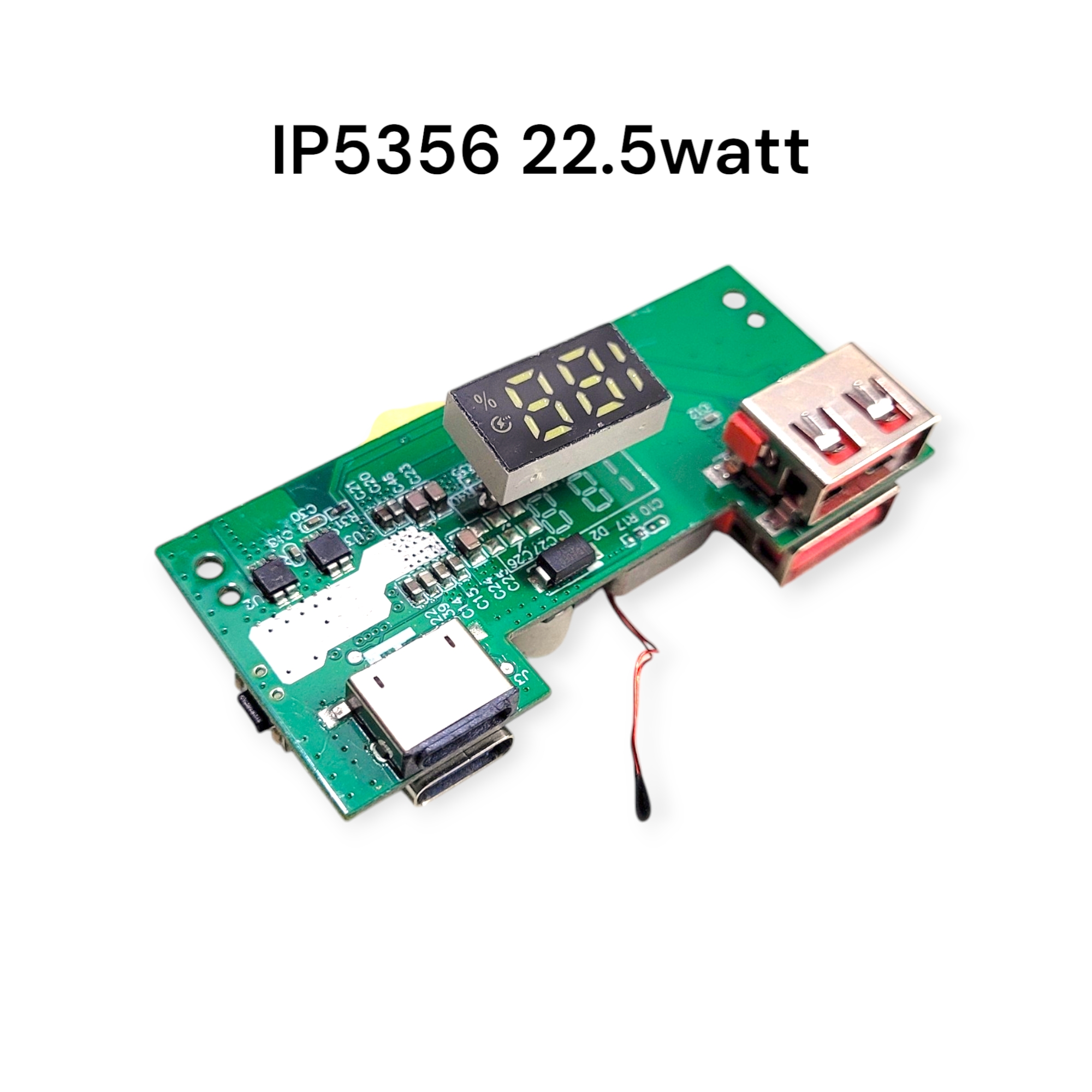

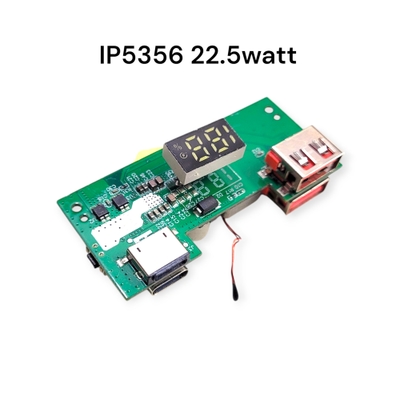

The IP5356 27W Quick Charge PD3.1 Power Bank Circuit is an advanced 3-in-1 charging module with USB-A, Type-C, and Micro USB ports. It supports multiple fast-charging protocols and includes a digital LED display for real-time battery percentage. Ideal for building high-speed PD power banks and fast-charging stations. Efficient, compact, and reliable — perfect for DIY projects and professional applications.
---
Application:
DIY Fast-Charging Power Banks
PD 3.1 & QC3.0 Charging Modules
Portable Device Charging Stations
USB-C Multi-Port Chargers
Electronic Test & Prototype Projects
