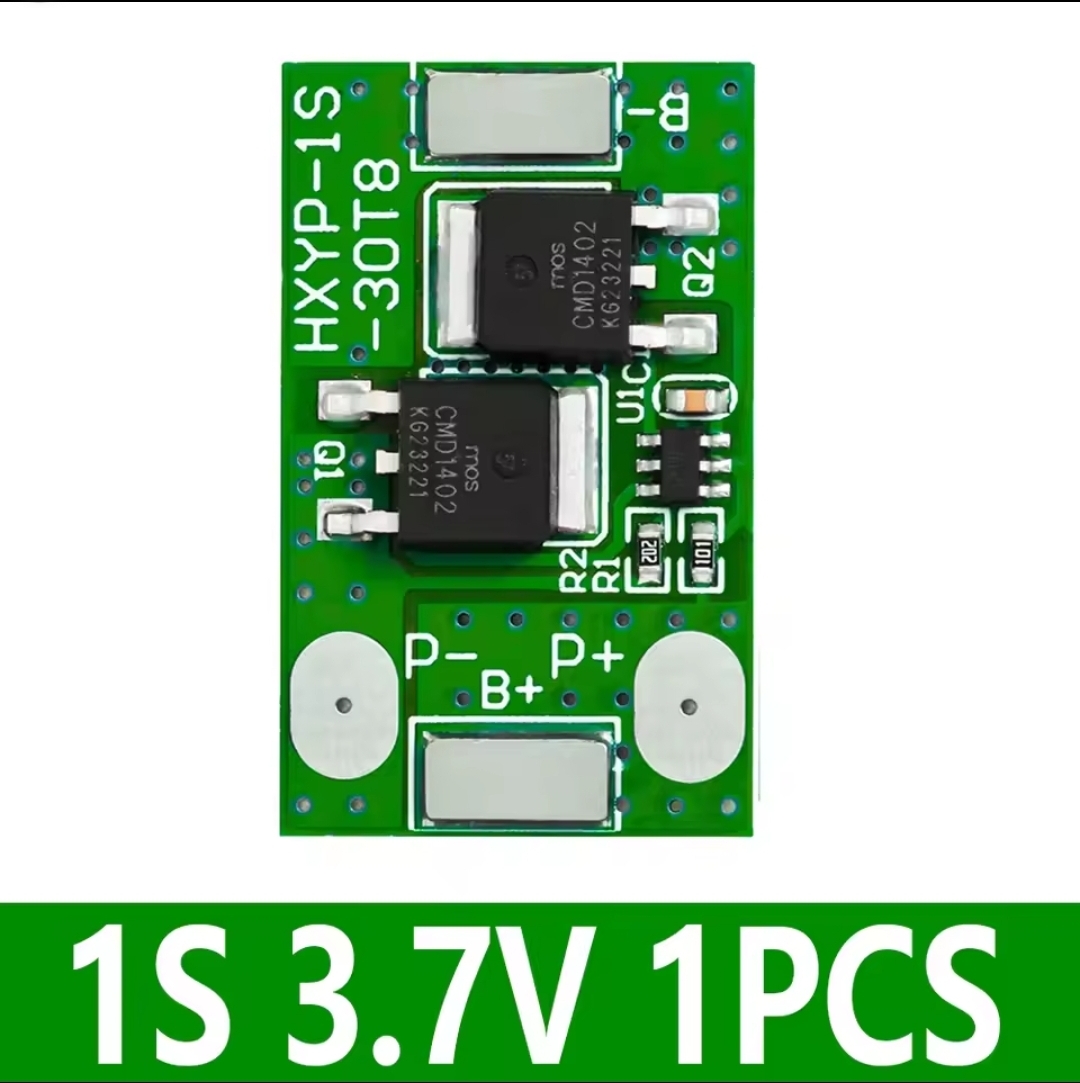

1S 7A 3.7V Li-ion BMS Protection Board | HXYP-1S-30T8 Lithium Battery Charging & Discharge Protection Module
Specification:Model: HXYP-1S-30T8Battery Type: 1S 3.7V Li-ion / Li-PolymerCharge Voltage: 4.2V ± 0.05VContinuous Discharge Current: 7AContinuous Charging Current: 7APeak Discharge Current: 12AOvercharge Protection Voltage: 4.28V ± 0.05VOverdischarge Protection Voltage: 2.5V ± 0.075VStatic Current: <30µAShort Circuit Protection: Yes (Auto Recovery)Dimensions: 30mm × 18mm × 3.6mm | Weight: Approx. 3g---Description:The 1S 7A 3.7V Li-ion BMS Protection Board (HXYP-1S-30T8) provides stable and safe protection for single-cell lithium-ion or lithium-polymer batteries. It features overcharge, overdischarge, and short-circuit protection with automatic recovery. Designed for 3.7V 18650 cells, it ensures longer battery life and stable output — ideal for DIY power banks, LED lights, and portable electronics.---Application:1S 3.7V Li-ion / Li-Polymer battery packsDIY power banks and small UPS systemsLED and flashlight battery protectionElectronic gadgets and IoT devicesSolar and rechargeable battery projects
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification:
Model: HXYP-1S-30T8
Battery Type: 1S 3.7V Li-ion / Li-Polymer
Charge Voltage: 4.2V ± 0.05V
Continuous Discharge Current: 7A
Continuous Charging Current: 7A
Peak Discharge Current: 12A
Overcharge Protection Voltage: 4.28V ± 0.05V
Overdischarge Protection Voltage: 2.5V ± 0.075V
Static Current: <30µA
Short Circuit Protection: Yes (Auto Recovery)
Dimensions: 30mm × 18mm × 3.6mm | Weight: Approx. 3g
---
Description:
The 1S 7A 3.7V Li-ion BMS Protection Board (HXYP-1S-30T8) provides stable and safe protection for single-cell lithium-ion or lithium-polymer batteries. It features overcharge, overdischarge, and short-circuit protection with automatic recovery. Designed for 3.7V 18650 cells, it ensures longer battery life and stable output — ideal for DIY power banks, LED lights, and portable electronics.
---
Application:
1S 3.7V Li-ion / Li-Polymer battery packs
DIY power banks and small UPS systems
LED and flashlight battery protection
Electronic gadgets and IoT devices
Solar and rechargeable battery projects
Model: HXYP-1S-30T8
Battery Type: 1S 3.7V Li-ion / Li-Polymer
Charge Voltage: 4.2V ± 0.05V
Continuous Discharge Current: 7A
Continuous Charging Current: 7A
Peak Discharge Current: 12A
Overcharge Protection Voltage: 4.28V ± 0.05V
Overdischarge Protection Voltage: 2.5V ± 0.075V
Static Current: <30µA
Short Circuit Protection: Yes (Auto Recovery)
Dimensions: 30mm × 18mm × 3.6mm | Weight: Approx. 3g
---
Description:
The 1S 7A 3.7V Li-ion BMS Protection Board (HXYP-1S-30T8) provides stable and safe protection for single-cell lithium-ion or lithium-polymer batteries. It features overcharge, overdischarge, and short-circuit protection with automatic recovery. Designed for 3.7V 18650 cells, it ensures longer battery life and stable output — ideal for DIY power banks, LED lights, and portable electronics.
---
Application:
1S 3.7V Li-ion / Li-Polymer battery packs
DIY power banks and small UPS systems
LED and flashlight battery protection
Electronic gadgets and IoT devices
Solar and rechargeable battery projects
1S 7A 3.7V Li-Ion BMS Protection Board | HXYP-1S-30T8 Lithium Battery Charging & Discharge Protection Module
Out of stock70 BDT85 BDTSave 15 BDT
Total sold : 40
No more items remaining!
Specification:
Model: HXYP-1S-30T8
Battery Type: 1S 3.7V Li-ion / Li-Polymer
Charge Voltage: 4.2V ± 0.05V
Continuous Discharge Current: 7A
Continuous Charging Current: 7A
Peak Discharge Current: 12A
Overcharge Protection Voltage: 4.28V ± 0.05V
Overdischarge Protection Voltage: 2.5V ± 0.075V
Static Current: <30µA
Short Circuit Protection: Yes (Auto Recovery)
Dimensions: 30mm × 18mm × 3.6mm | Weight: Approx. 3g
---
Description:
The 1S 7A 3.7V Li-ion BMS Protection Board (HXYP-1S-30T8) provides stable and safe protection for single-cell lithium-ion or lithium-polymer batteries. It features overcharge, overdischarge, and short-circuit protection with automatic recovery. Designed for 3.7V 18650 cells, it ensures longer battery life and stable output — ideal for DIY power banks, LED lights, and portable electronics.
---
Application:
1S 3.7V Li-ion / Li-Polymer battery packs
DIY power banks and small UPS systems
LED and flashlight battery protection
Electronic gadgets and IoT devices
Solar and rechargeable battery projects
Model: HXYP-1S-30T8
Battery Type: 1S 3.7V Li-ion / Li-Polymer
Charge Voltage: 4.2V ± 0.05V
Continuous Discharge Current: 7A
Continuous Charging Current: 7A
Peak Discharge Current: 12A
Overcharge Protection Voltage: 4.28V ± 0.05V
Overdischarge Protection Voltage: 2.5V ± 0.075V
Static Current: <30µA
Short Circuit Protection: Yes (Auto Recovery)
Dimensions: 30mm × 18mm × 3.6mm | Weight: Approx. 3g
---
Description:
The 1S 7A 3.7V Li-ion BMS Protection Board (HXYP-1S-30T8) provides stable and safe protection for single-cell lithium-ion or lithium-polymer batteries. It features overcharge, overdischarge, and short-circuit protection with automatic recovery. Designed for 3.7V 18650 cells, it ensures longer battery life and stable output — ideal for DIY power banks, LED lights, and portable electronics.
---
Application:
1S 3.7V Li-ion / Li-Polymer battery packs
DIY power banks and small UPS systems
LED and flashlight battery protection
Electronic gadgets and IoT devices
Solar and rechargeable battery projects
