Specification

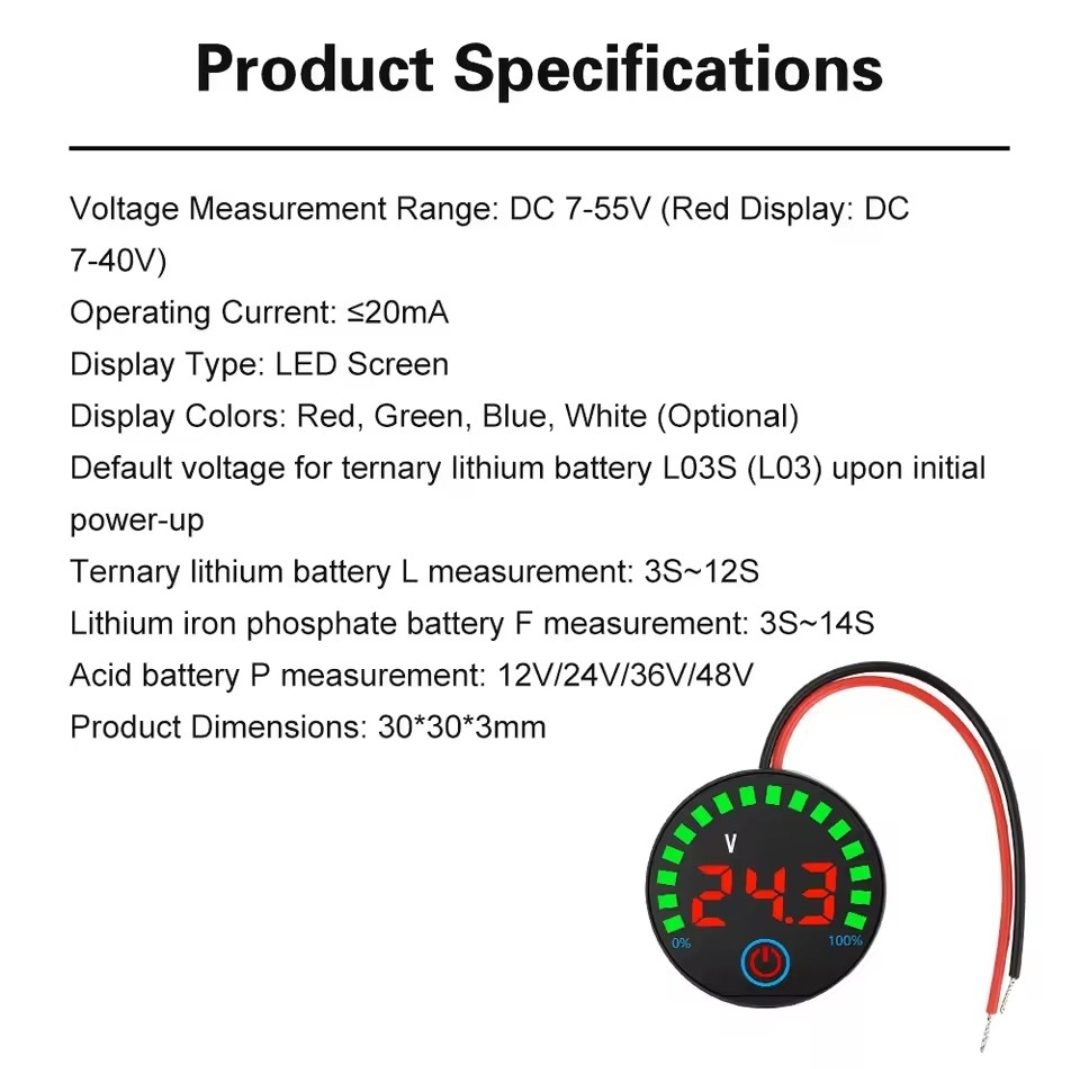

• Voltage Measurement Range: DC 7V to 55V (Red Display Effective 7–40V)
• Supported Battery Types: Lithium Ion, LiFePO4 and Lead Acid
• Lithium Ion Battery Support: 3S to 12S Configuration
• LiFePO4 Battery Support: 3S to 14S Configuration
• Lead Acid Battery Support: 12V / 24V / 36V / 48V
• Display Type: High Brightness LED Digital Screen
• Operating Current: ≤20mA Low Power Consumption

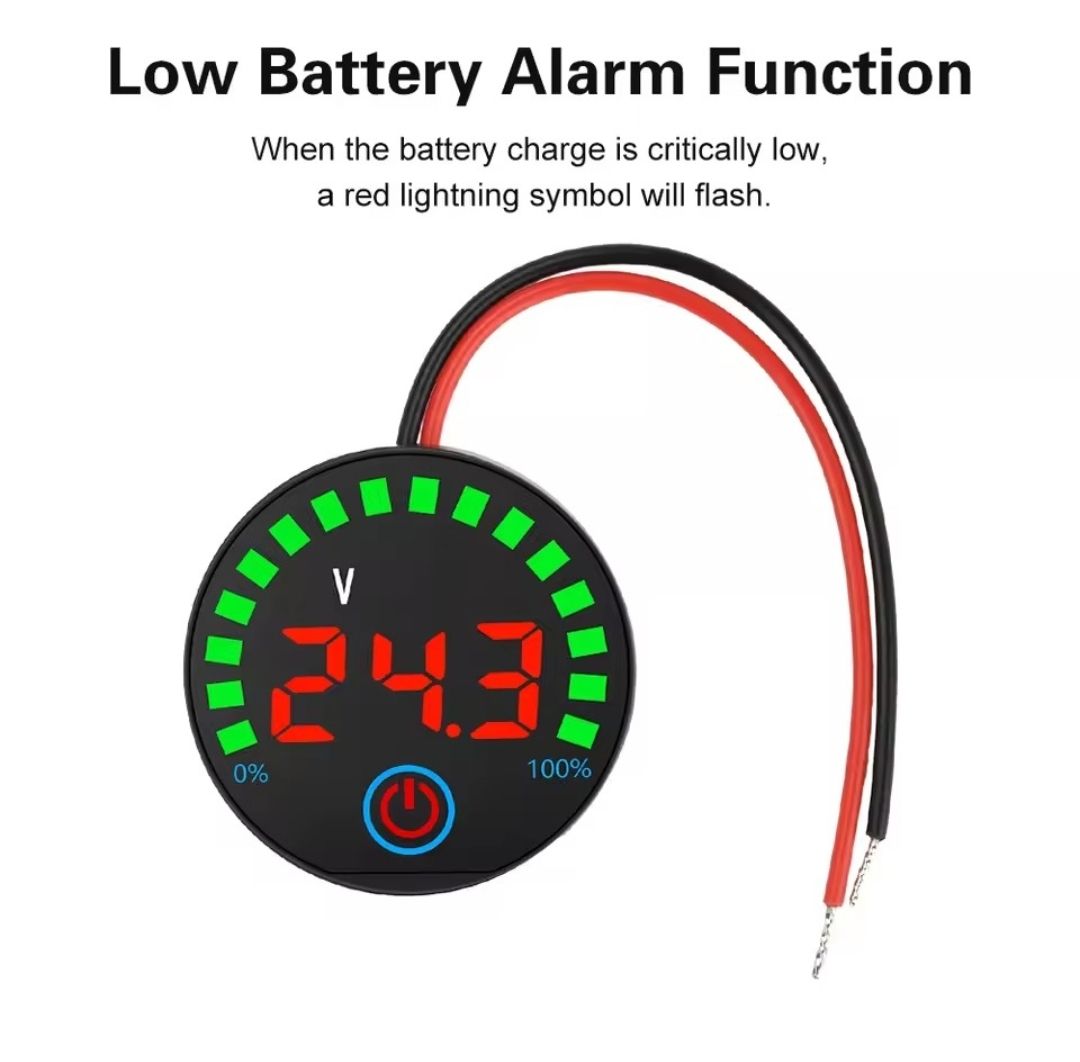

• Low Battery Alarm: Red Flashing Lightning Indicator

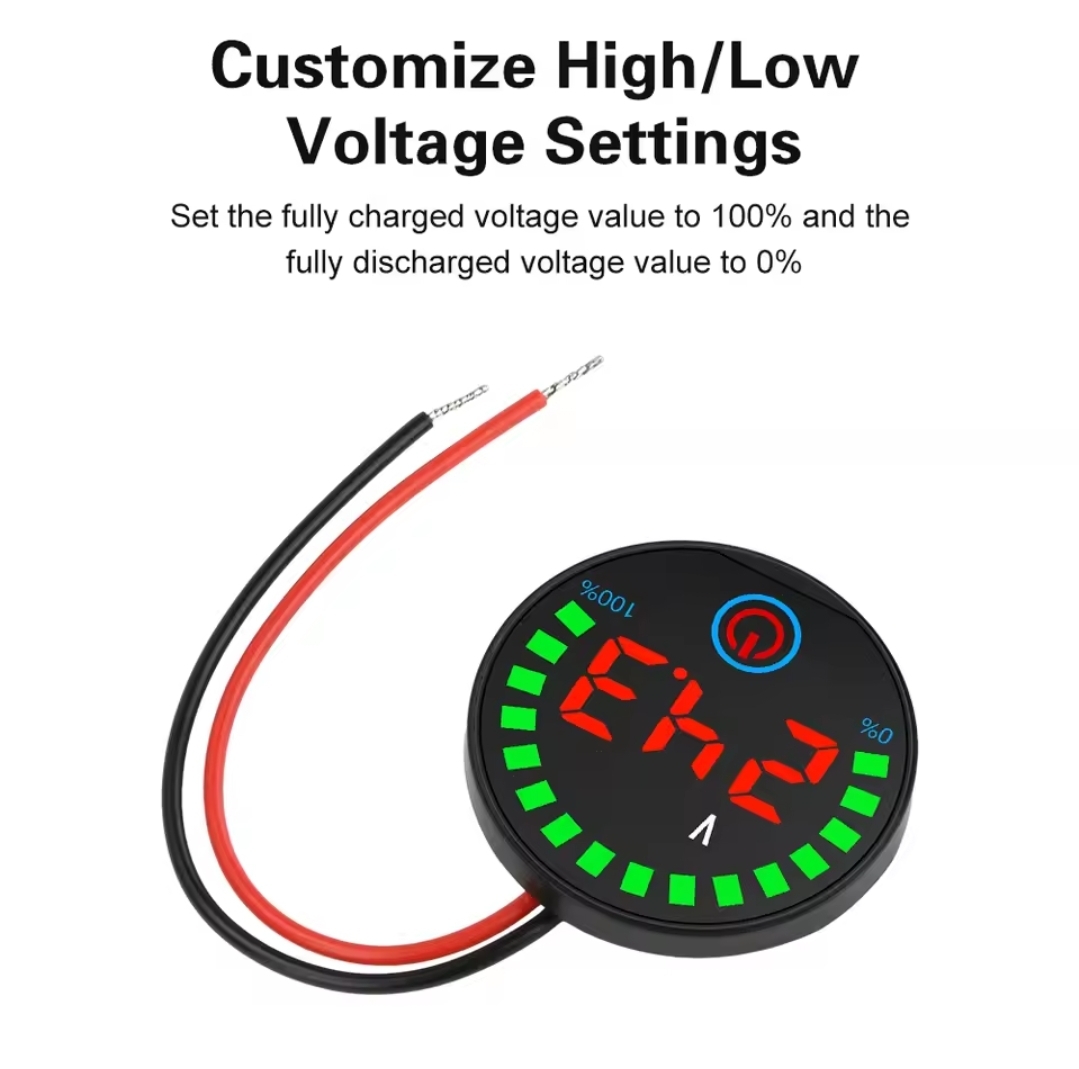

• Adjustable Voltage Setting: Custom Full and Empty Voltage Calibration

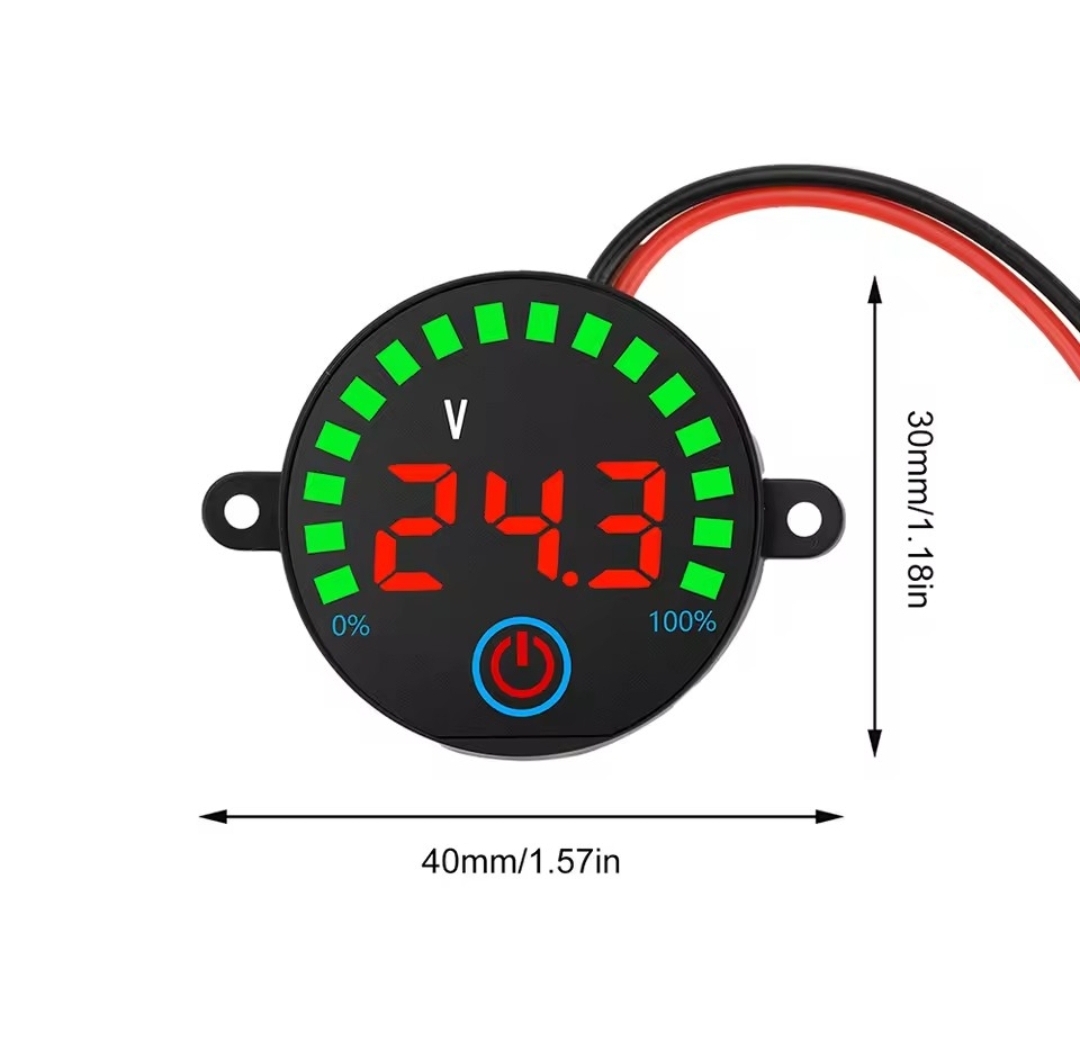

• Product Size: Approx. 30mm × 30mm × 3mm Compact Design
Description
• Accurately displays real-time battery voltage and charge percentage
• Supports multiple battery chemistries with one single module
• Adjustable high and low voltage calibration for precise readings
• Built-in low battery alarm for early warning protection
• Compact round design suitable for panel mounting applications
Application
• Li-ion and LiFePO4 battery pack monitoring
• Solar battery and inverter voltage display
• Electric bike, e-scooter and EV battery indication
• UPS and backup power system monitoring
• DIY battery projects and custom power systems
