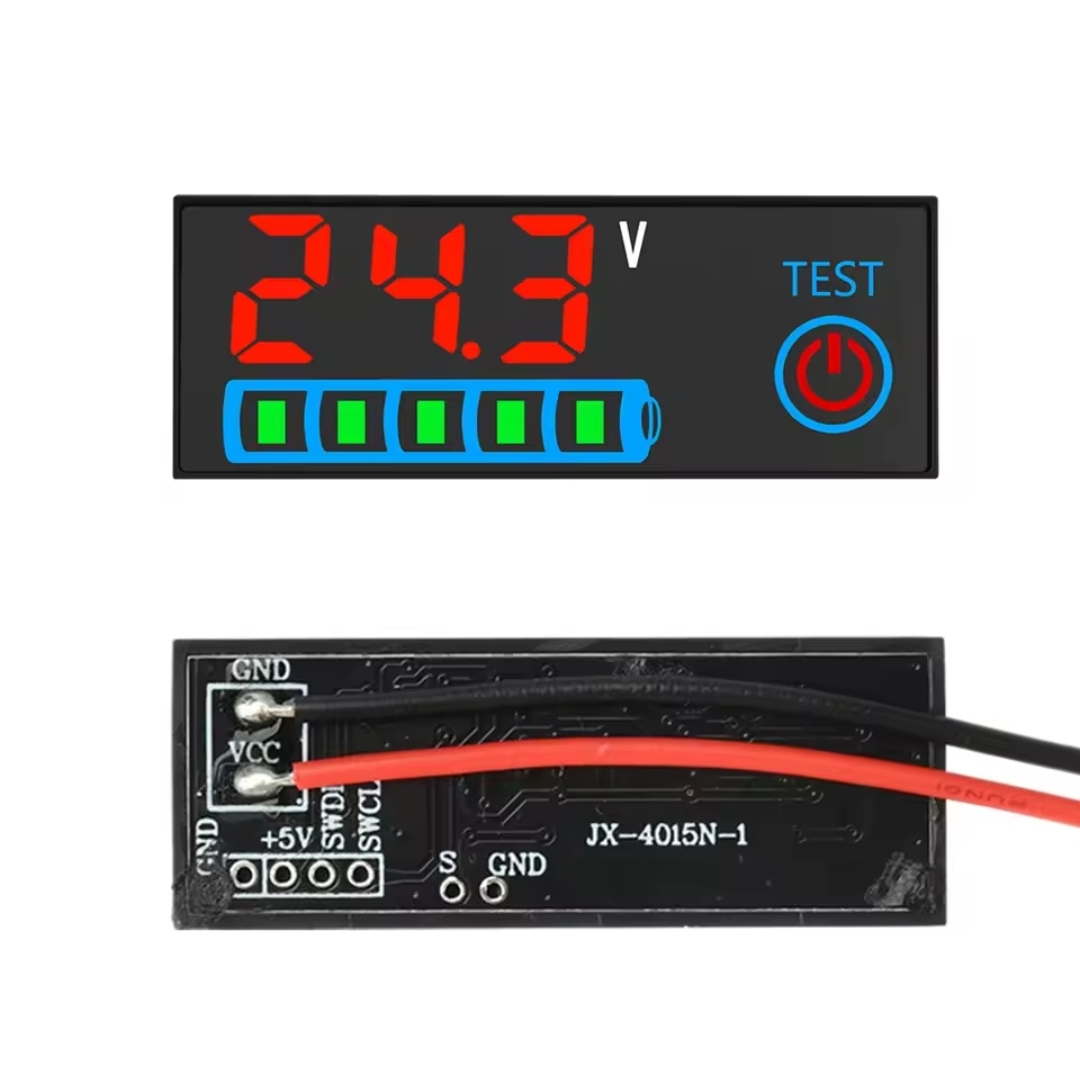

Universal DC 7–55V Digital Battery Level Indicator With Voltage Display And Alarm Function
Specification• Voltage Measurement Range: DC 7V to 55V (Red Display Effective 7–40V)• Supported Battery Types: Lithium Ion, LiFePO4 and Lead Acid• Lithium Ion Battery Support: 3S to 12S Configuration• LiFePO4 Battery Support: 3S to 14S Configuration• Lead Acid Battery Support: 12V / 24V / 36V / 48V• Display Type: High Brightness LED Digital Screen• Operating Current: ≤20mA Low Power Consumption• Low Battery Alarm: Red Flashing Lightning Indicator• Adjustable Voltage Setting: Custom Full and Empty Voltage Calibration• Product Size: Approx. 30mm × 30mm × 3mm Compact DesignDescription• Accurately displays real-time battery voltage and charge percentage• Supports multiple battery chemistries with one single module• Adjustable high and low voltage calibration for precise readings• Built-in low battery alarm for early warning protection• Compact round design suitable for panel mounting applicationsApplication• Li-ion and LiFePO4 battery pack monitoring• Solar battery and inverter voltage display• Electric bike, e-scooter and EV battery indication• UPS and backup power system monitoring• DIY battery projects and custom power systems
Goo Gadget
Category List
All products
Lifepo4 Battery
Bike/Car Self-Start LiFePO4 Battery
Buck/Boost
Amplifier
Tools
Spot Welding
BMS
Humidifier
PowerBank
Fan
Charger
Battery
Motor & Propeller
Soldering KIT
Connector
Specification
• Voltage Measurement Range: DC 7V to 55V (Red Display Effective 7–40V)
• Supported Battery Types: Lithium Ion, LiFePO4 and Lead Acid
• Lithium Ion Battery Support: 3S to 12S Configuration
• LiFePO4 Battery Support: 3S to 14S Configuration
• Lead Acid Battery Support: 12V / 24V / 36V / 48V

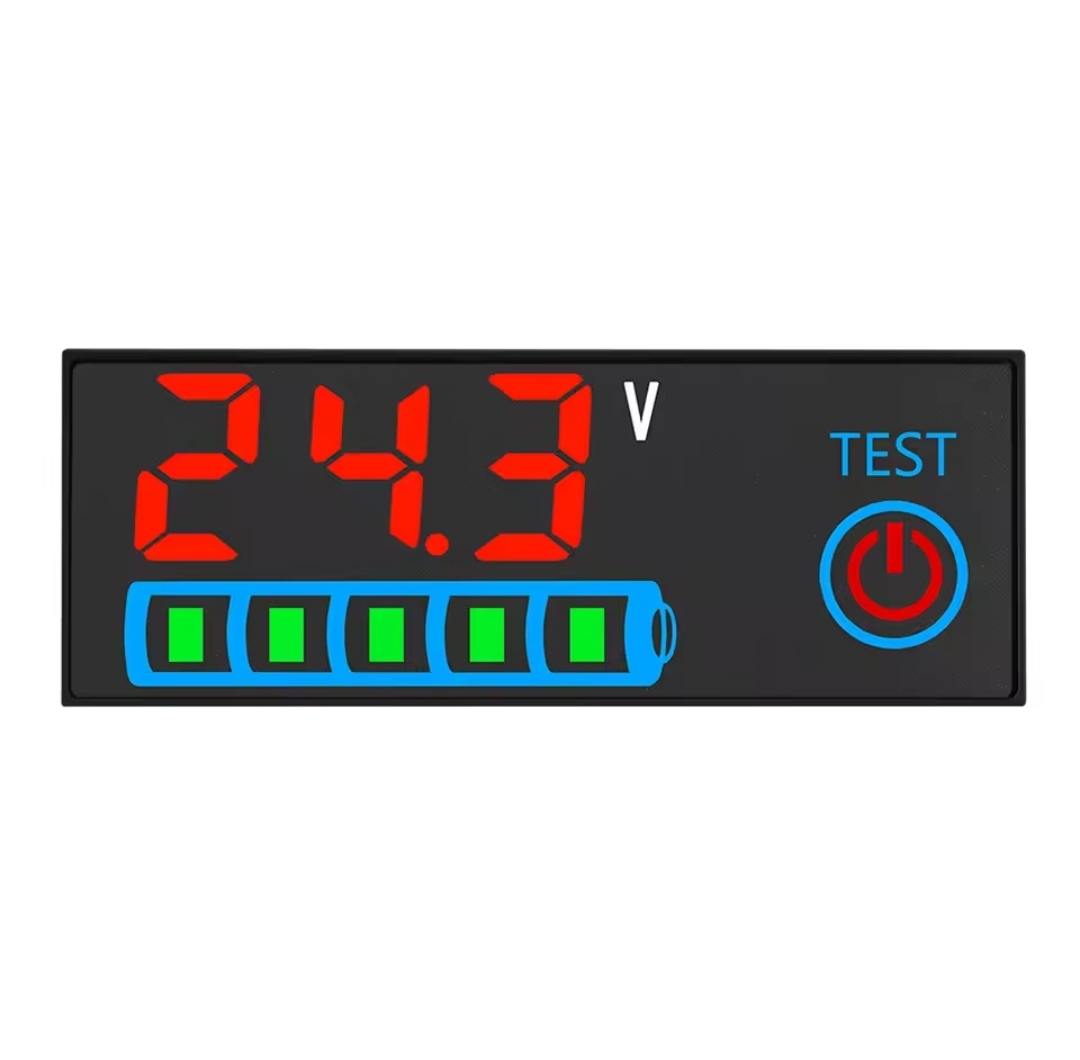

• Display Type: High Brightness LED Digital Screen
• Operating Current: ≤20mA Low Power Consumption
• Low Battery Alarm: Red Flashing Lightning Indicator

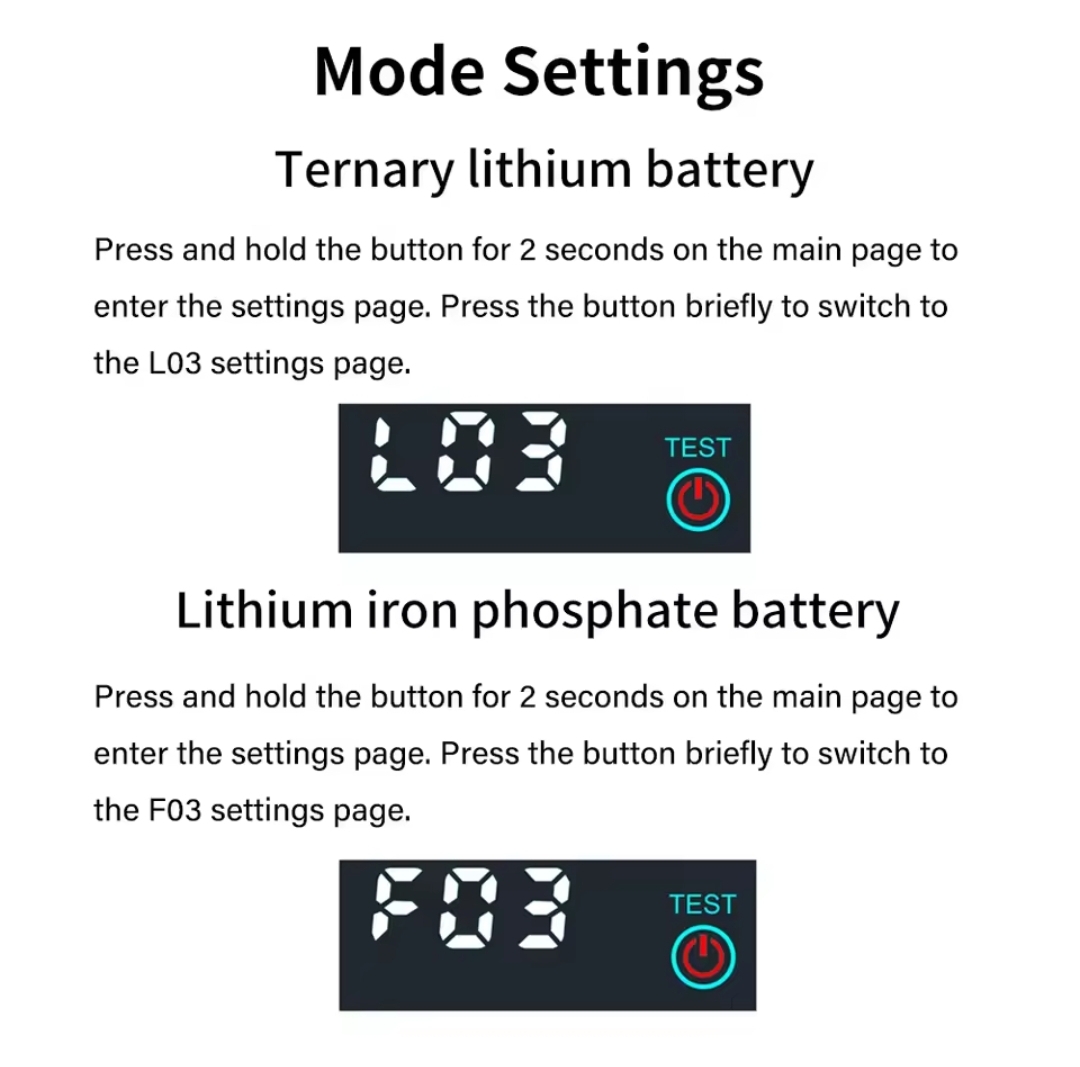

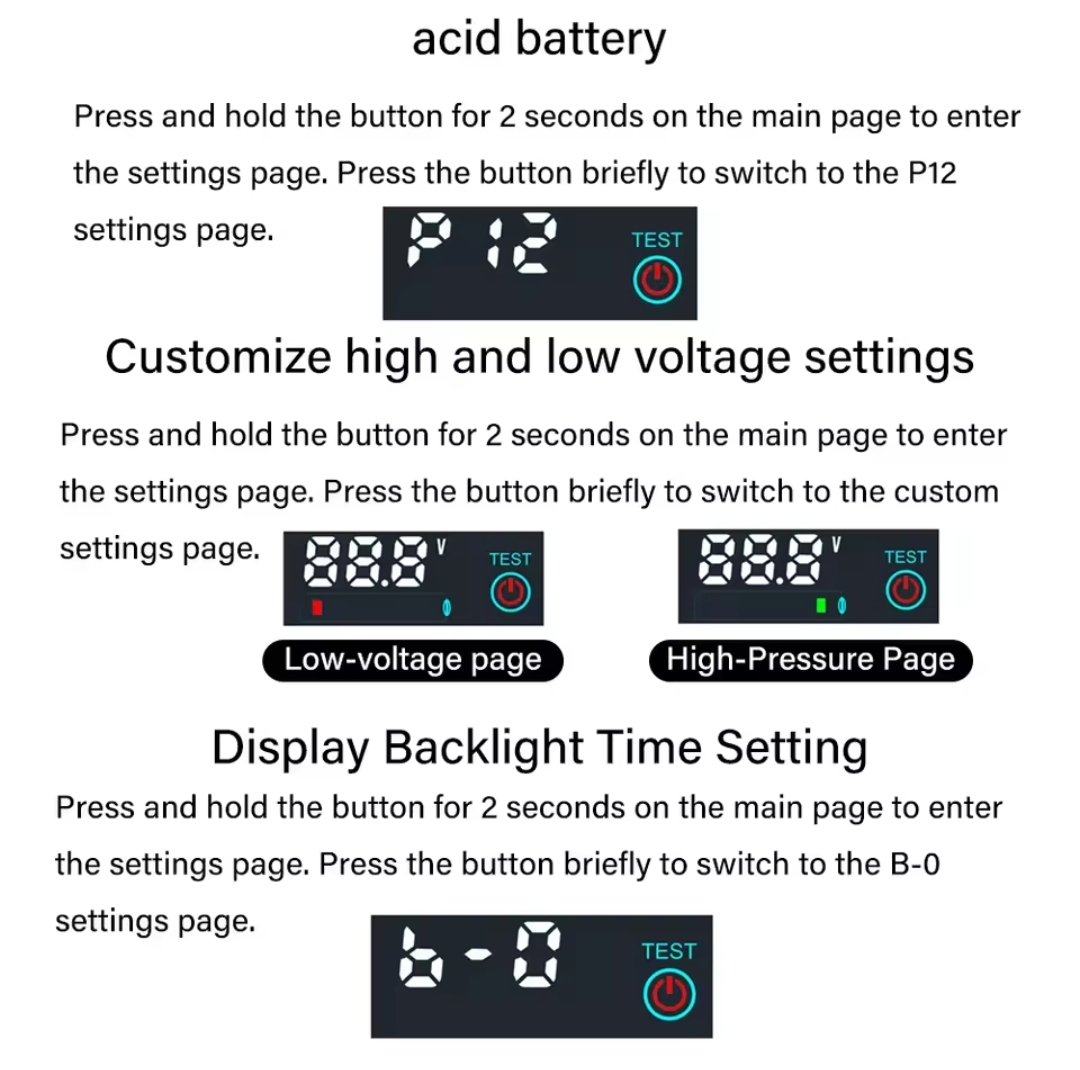

• Adjustable Voltage Setting: Custom Full and Empty Voltage Calibration
• Product Size: Approx. 30mm × 30mm × 3mm Compact Design
Description
• Accurately displays real-time battery voltage and charge percentage
• Supports multiple battery chemistries with one single module
• Adjustable high and low voltage calibration for precise readings
• Built-in low battery alarm for early warning protection
• Compact round design suitable for panel mounting applications
Application
• Li-ion and LiFePO4 battery pack monitoring
• Solar battery and inverter voltage display
• Electric bike, e-scooter and EV battery indication
• UPS and backup power system monitoring
• DIY battery projects and custom power systems
