For any product-related issue, please order the After Sales Service product.Specification
Product Type: 1S Lithium-Ion Battery Protection Board
Battery Support: 1 Cell (1S) 3.7V Li-ion Battery
Nominal Voltage: 3.7V
Full Charge Voltage: 4.2V
Overcharge Detection Voltage: 4.25V Âą 0.05V
Overcharge Release Voltage: 4.23V Âą 0.05V
Over-discharge Detection Voltage: 2.45V Âą 0.1V
Maximum Continuous Current: 12A
Overcurrent Protection Current: 15A

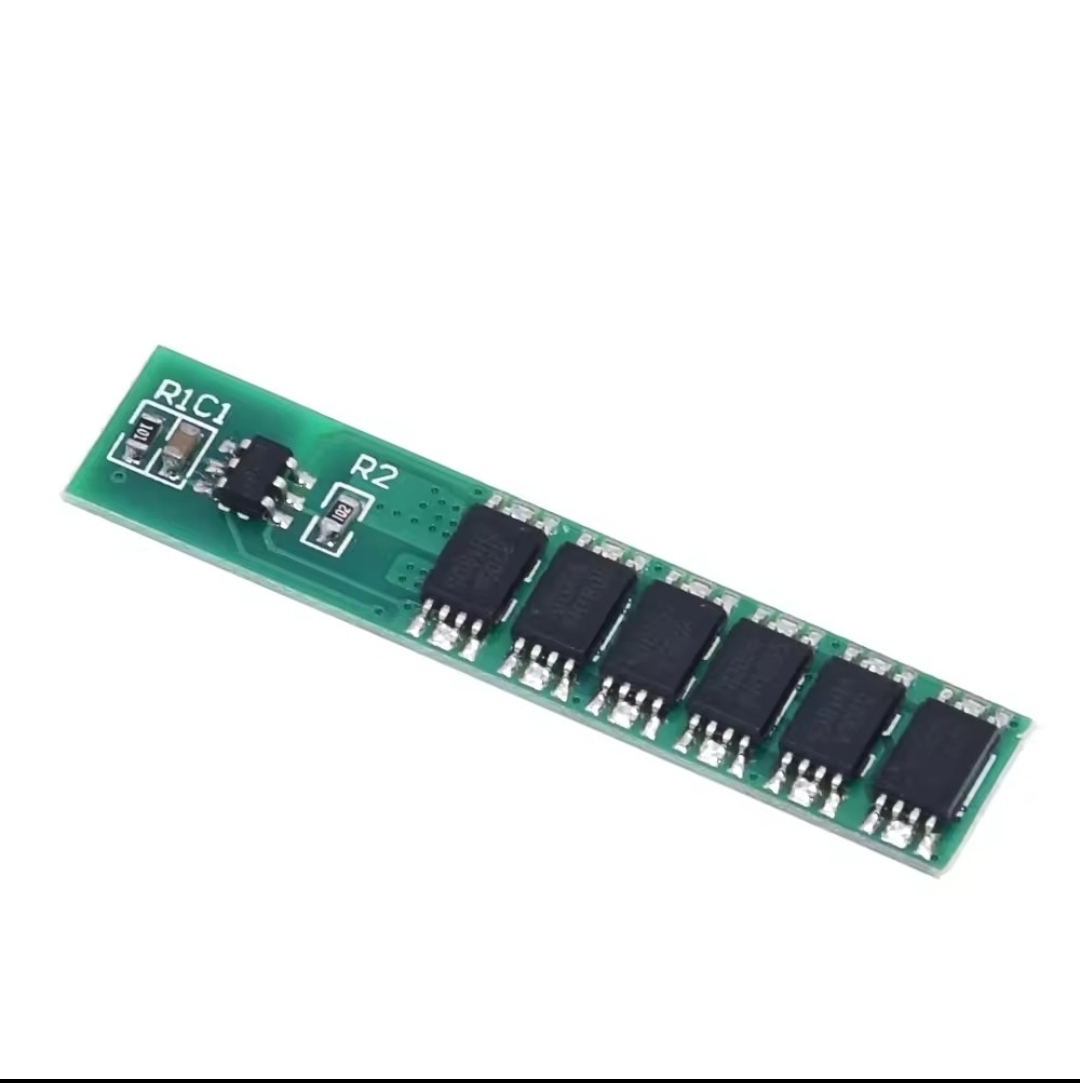

MOSFET Quantity: 6 MOS
Main IC: DW01 + 8205A

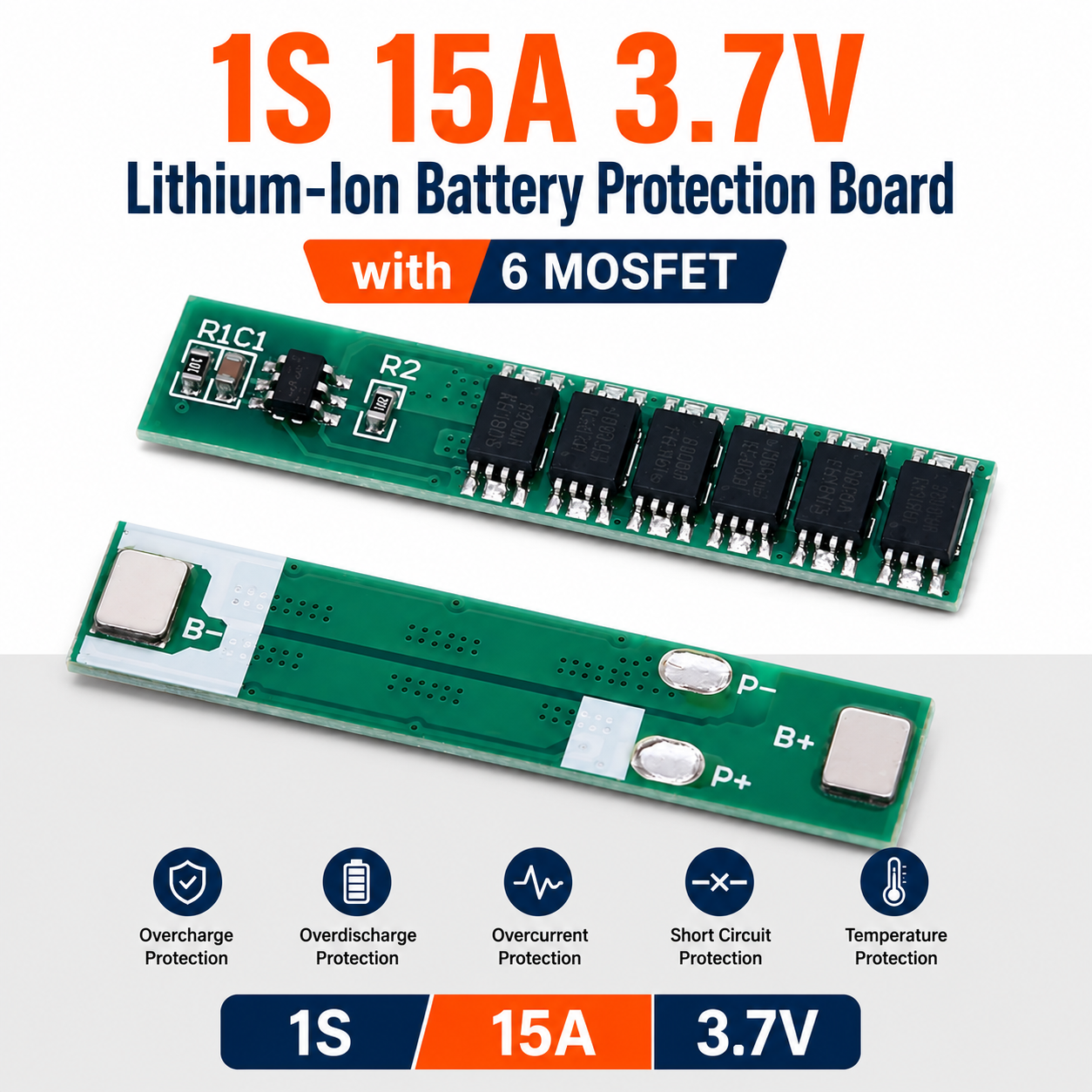

Protection Features: Overcharge Protection
Protection Features: Over-discharge Protection
Protection Features: Short Circuit Protection
Protection Features: Overcurrent Protection
Charging Voltage: 4.2V

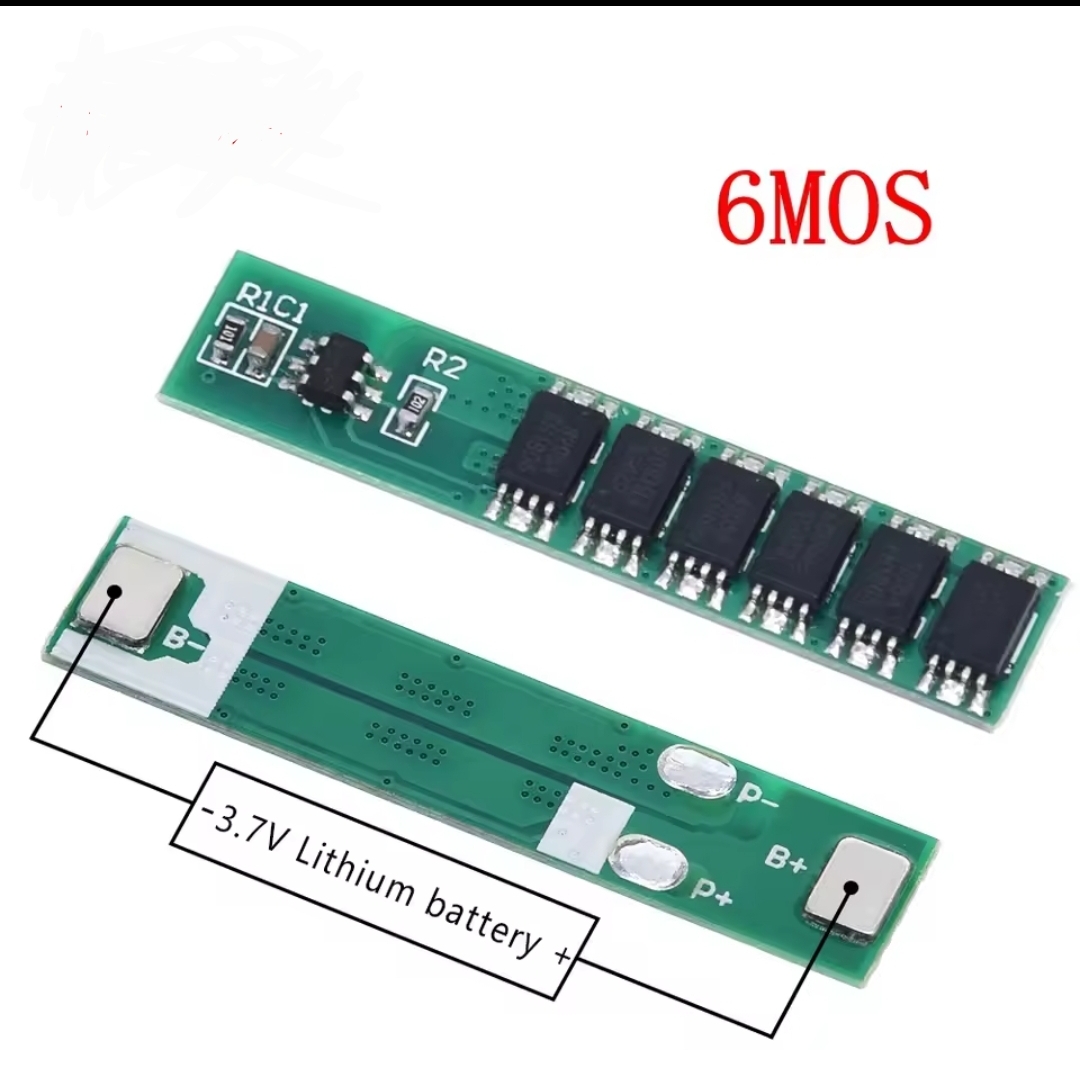

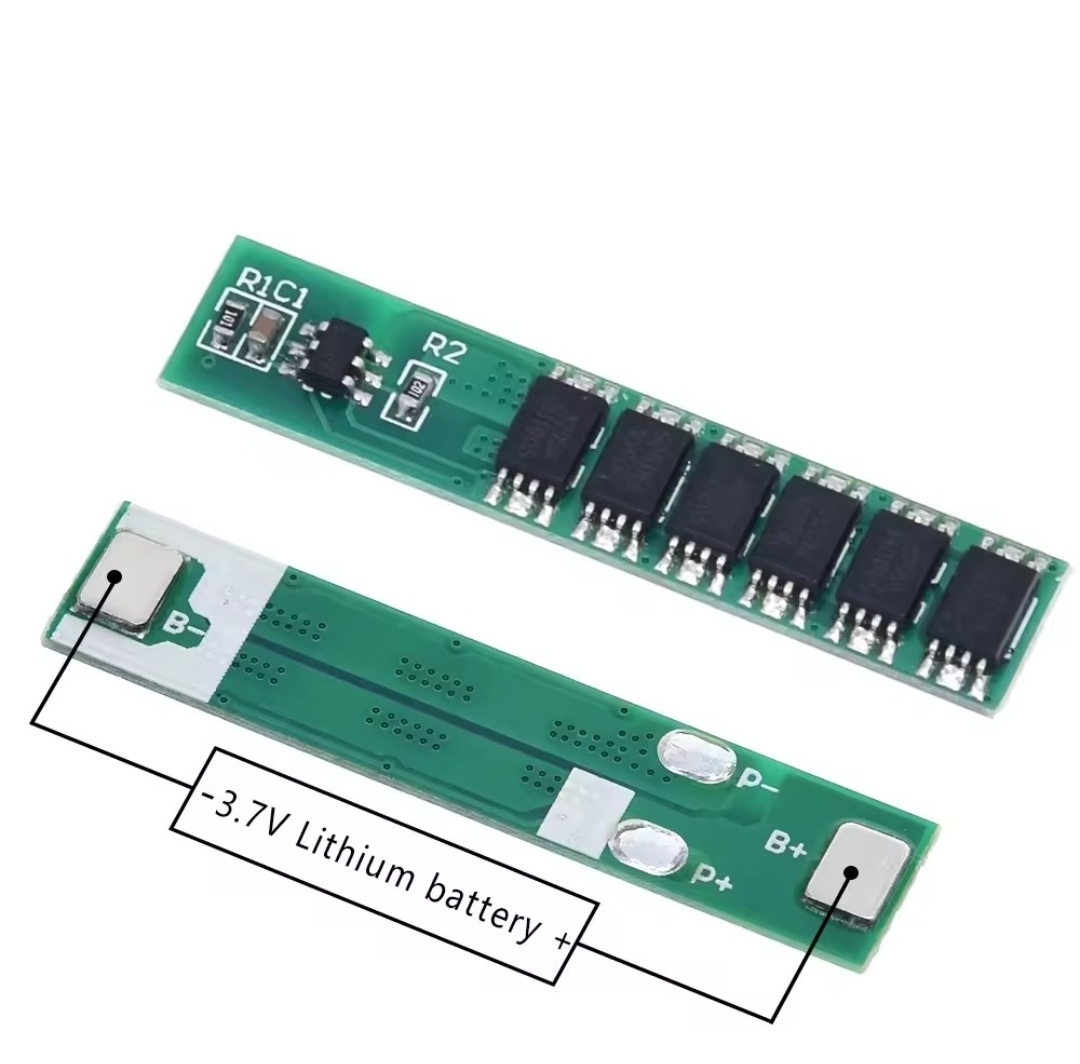

Connection Points: B+, B-, P+, P-

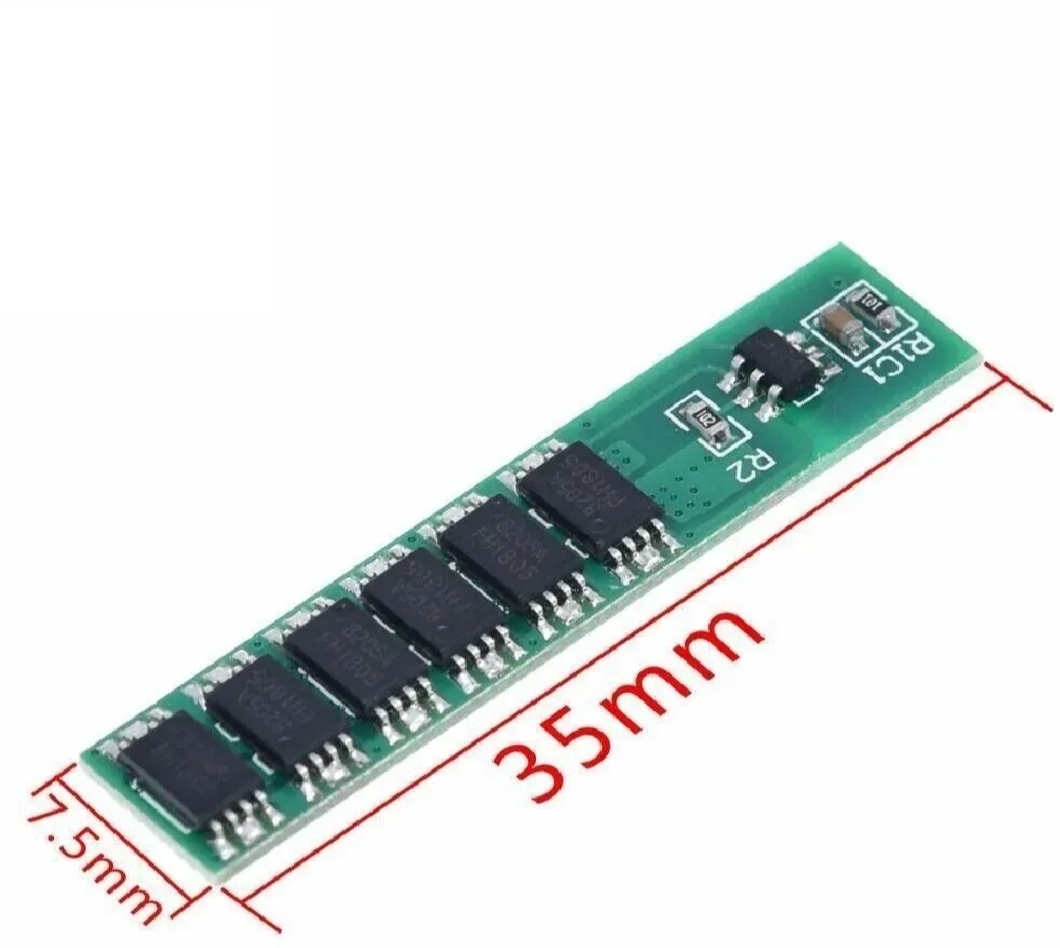

PCB Size: 35 Ã 7.6 Ã 2 mm
Suitable Battery: 18650 Lithium-Ion Cell
PCB Color: Green
Weight: Approximately 2g
Description
āĻāĻ 1S 15A 3.7V Lithium-Ion BMS Protection BoardāĻāĻŋ āĻāĻāĻ 3.7V Lithium-Ion āĻŦā§āĻ¯āĻžāĻāĻžāĻ°āĻŋāĻ° āĻ¨āĻŋāĻ°āĻžāĻĒāĻĻ āĻāĻžāĻ°ā§āĻ āĻ āĻĄāĻŋāĻ¸āĻāĻžāĻ°ā§āĻ āĻŦā§āĻ¯āĻŦāĻ¸ā§āĻĨāĻžāĻĒāĻ¨āĻžāĻ° āĻāĻ¨ā§āĻ¯ āĻ¤ā§āĻ°āĻŋāĨ¤ āĻāĻ¤ā§ 6MOS āĻĄāĻŋāĻāĻžāĻāĻ¨ āĻŦā§āĻ¯āĻŦāĻšāĻžāĻ° āĻāĻ°āĻž āĻšāĻ¯āĻŧā§āĻā§ āĻ¯āĻž āĻāĻā§āĻ āĻāĻžāĻ°ā§āĻ¨ā§āĻ āĻšā§āĻ¯āĻžāĻ¨ā§āĻĄāĻ˛āĻŋāĻ āĻ¸āĻā§āĻˇāĻŽāĻ¤āĻž āĻĒā§āĻ°āĻĻāĻžāĻ¨ āĻāĻ°ā§āĨ¤ DW01 āĻāĻŦāĻ 8205A āĻāĻŋāĻĒāĻ¸ā§āĻā§āĻ° āĻŽāĻžāĻ§ā§āĻ¯āĻŽā§ āĻāĻāĻžāĻ°āĻāĻžāĻ°ā§āĻ, āĻāĻāĻžāĻ°-āĻĄāĻŋāĻ¸āĻāĻžāĻ°ā§āĻ, āĻļāĻ°ā§āĻ āĻ¸āĻžāĻ°ā§āĻāĻŋāĻ āĻāĻŦāĻ āĻāĻāĻžāĻ°āĻāĻžāĻ°ā§āĻ¨ā§āĻ āĻĒā§āĻ°ā§āĻā§āĻāĻļāĻ¨ āĻ¨āĻŋāĻļā§āĻāĻŋāĻ¤ āĻāĻ°āĻž āĻšāĻ¯āĻŧāĨ¤ 18650 āĻŦā§āĻ¯āĻžāĻāĻžāĻ°āĻŋ āĻĒā§āĻ¯āĻžāĻ, DIY āĻĒāĻžāĻāĻ¯āĻŧāĻžāĻ° āĻŦā§āĻ¯āĻžāĻāĻ, āĻ°āĻŋāĻāĻžāĻ°ā§āĻā§āĻŦāĻ˛ āĻ˛āĻžāĻāĻ, āĻĢā§āĻ¯āĻžāĻ¨ āĻāĻŦāĻ āĻŦāĻŋāĻāĻŋāĻ¨ā§āĻ¨ āĻĒā§āĻ°ā§āĻā§āĻŦāĻ˛ āĻāĻ˛ā§āĻāĻā§āĻ°āĻ¨āĻŋāĻā§āĻ¸ āĻĒā§āĻ°āĻā§āĻā§āĻā§ āĻŦā§āĻ¯āĻŦāĻšāĻžāĻ°ā§āĻ° āĻāĻ¨ā§āĻ¯ āĻāĻāĻŋ āĻāĻāĻāĻŋ āĻ¨āĻŋāĻ°ā§āĻāĻ°āĻ¯ā§āĻā§āĻ¯ āĻ¸āĻŽāĻžāĻ§āĻžāĻ¨āĨ¤
Application
18650 Lithium-Ion Battery Packs
DIY Power Bank Projects
Rechargeable LED Lights
Portable Electronic Devices
Battery Repair and Replacement Projects
